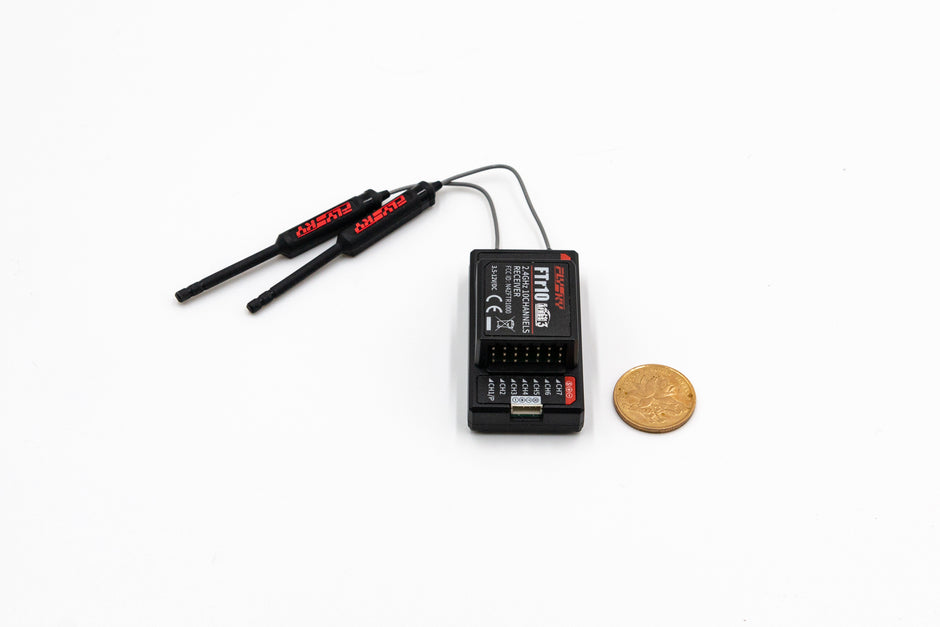

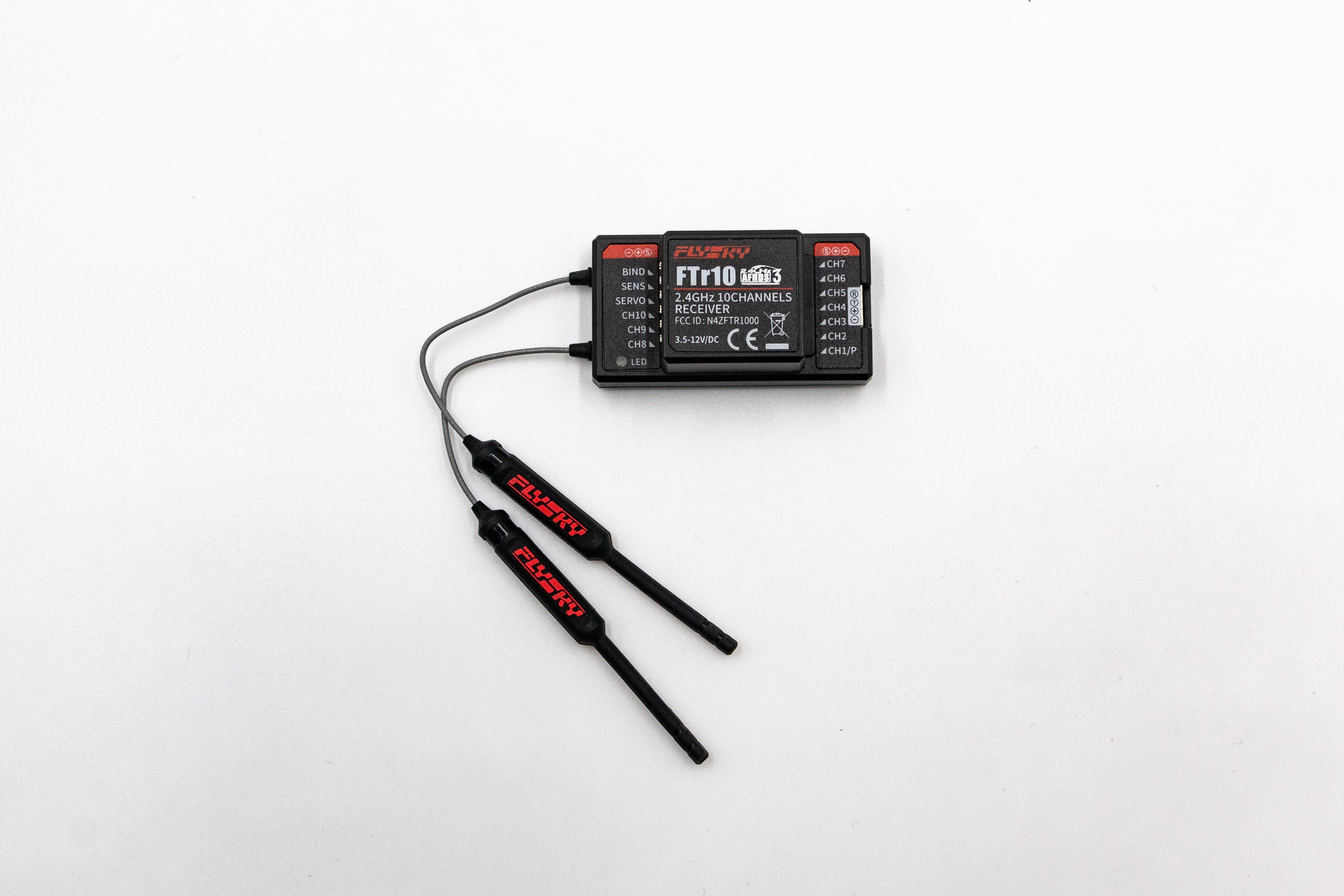

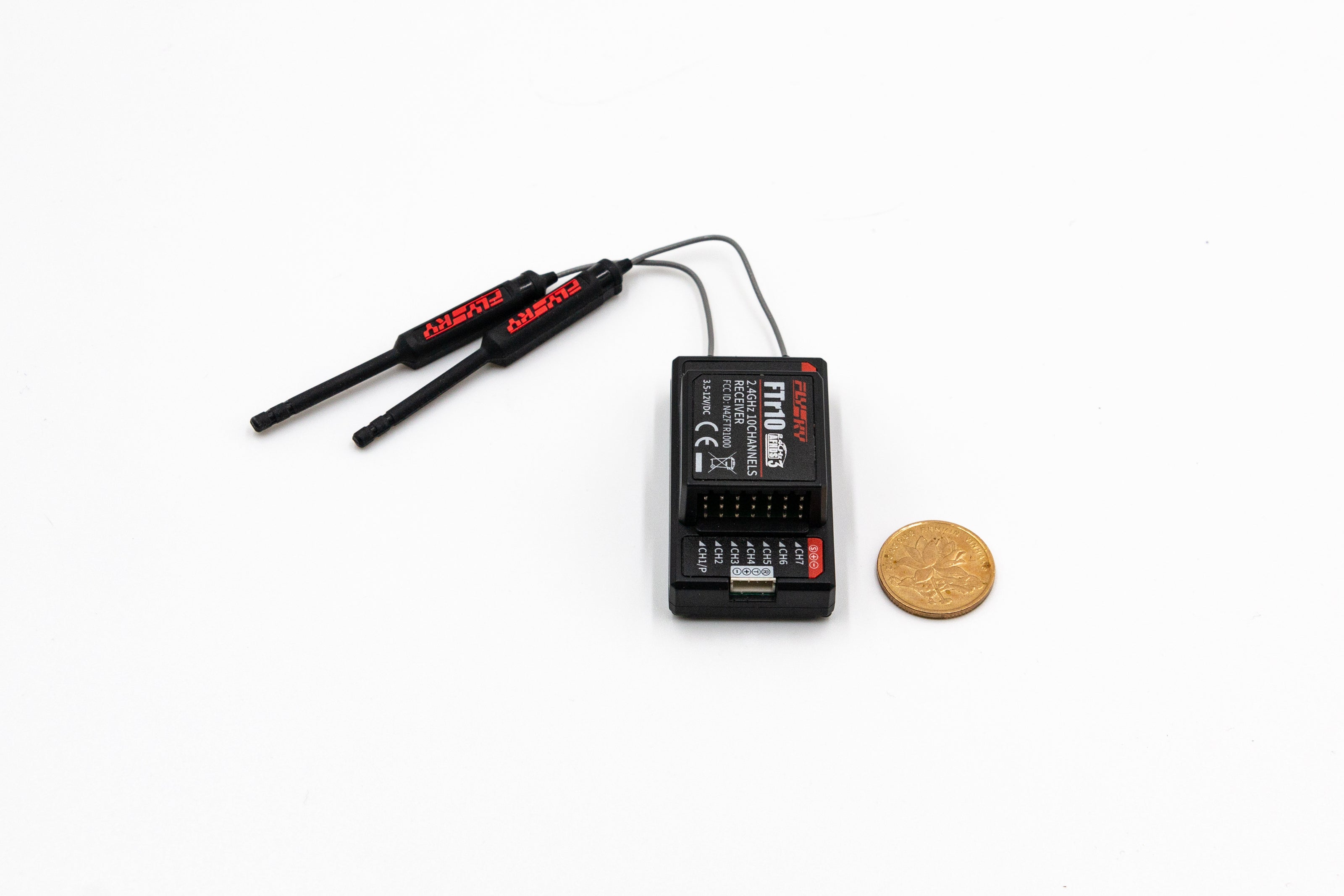

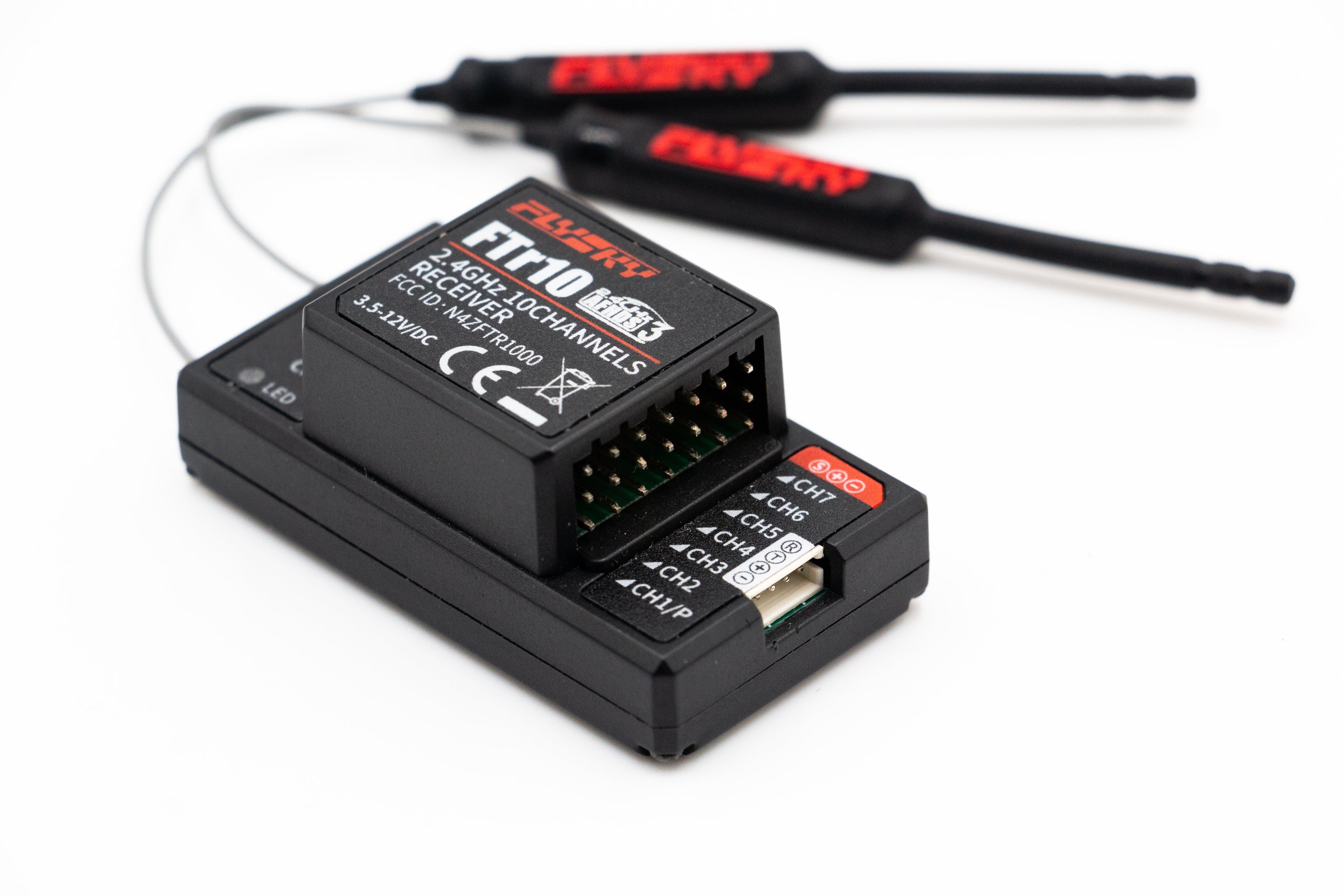

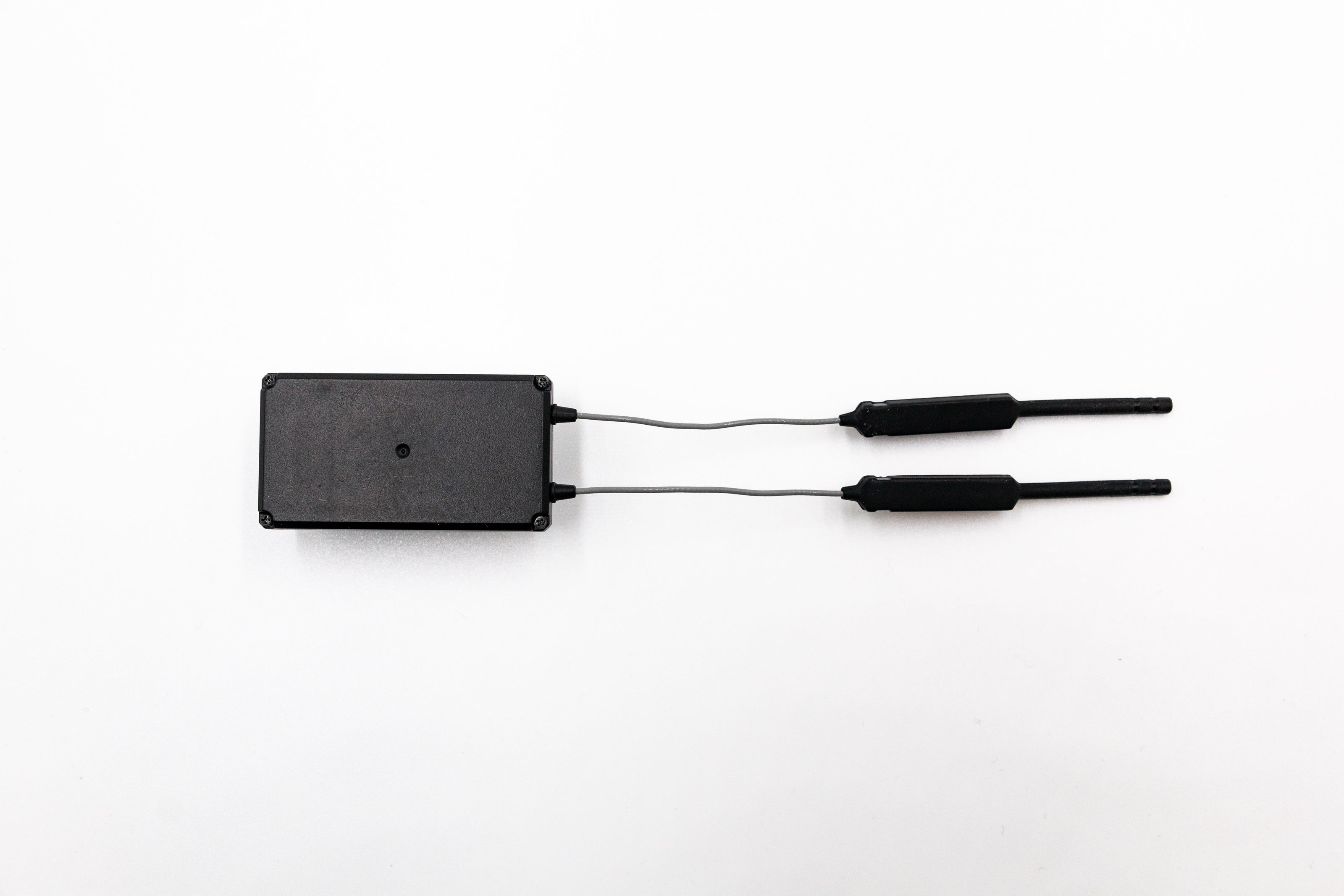

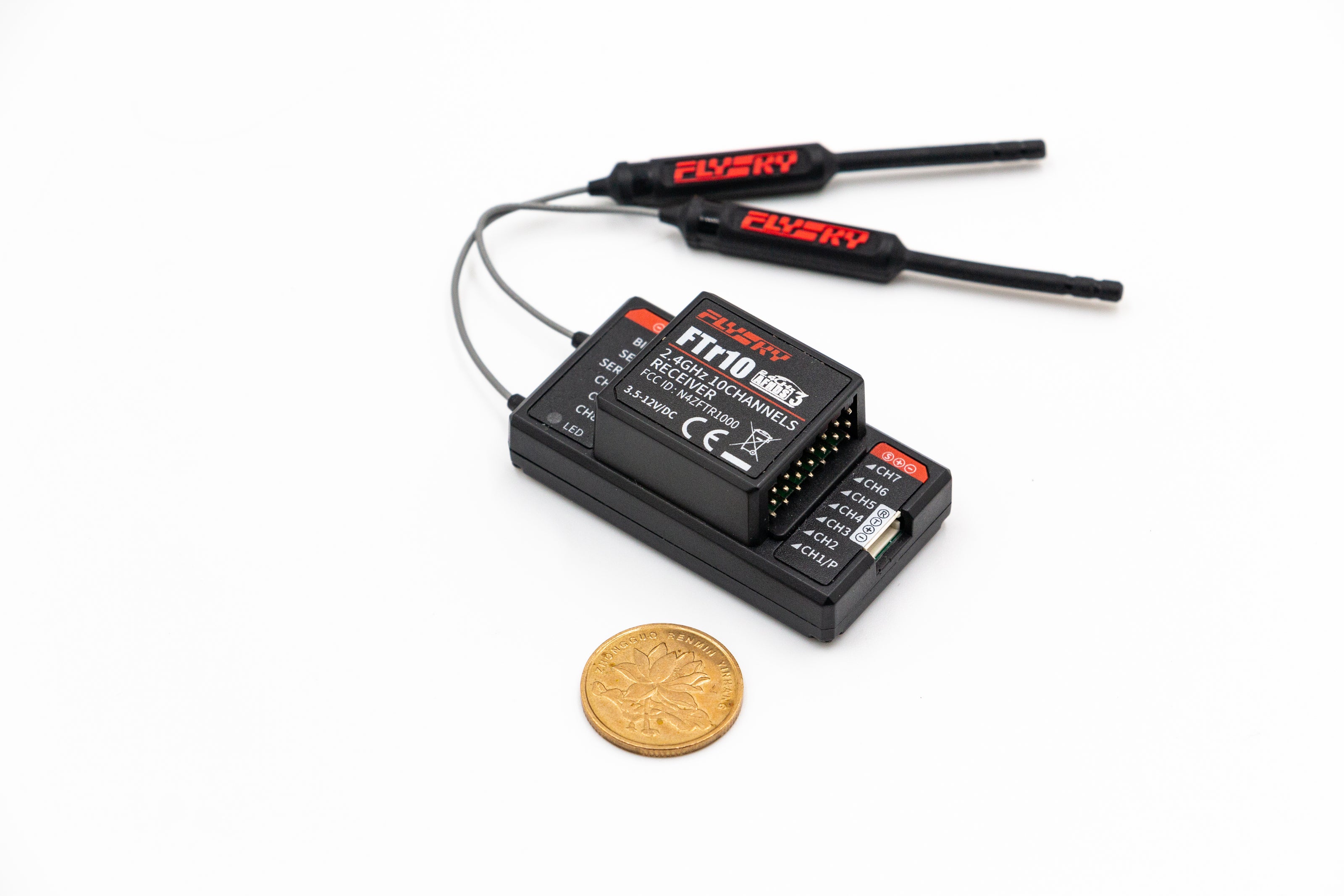

FlySky FTr10 Receiver 2.4G 10CH
Low stock
In stock, ready to ship
Couldn't load pickup availability
Let customers speak for us
Description
FlySky FTr10 Receiver 2.4G 10CH Two-Way Dual Antenna for Airplane glider helicopter multi-axis aircraft Flysky PL18 transmitter
FTr10 Specification:
FlySky FTr10 Receiver 2.4G 10CH Two-Way Dual Antenna for Airplane glider helicopter multi-axis aircraft Flysky PL18 transmitter
The receiver with 10 channel, 2.4G wireless frequency, adopt AFHDS 3 (third-generation automatic frequency hopping digital system), dual-antenna bidirectional transmission, its unique design can save installation space, and can output standard PPM signals and i-BUS signals. Suitable for model: Airplane, glider, helicopter, multi-axis aircraft, suitable for Flysky PL18 transmitter, easy install, and use.
【Receiver】 Flysky FTr10 2.4G 10CH receiver, adopt AFHDS 3 (third-generation automatic frequency hopping digital system), dual-antenna bidirectional transmission, its unique design can save installation space, and can output standard PPM signals and i-BUS signals.
【Specifications】
Product Model: FTr10
PWM channel: 10
Wireless frequency: 2.4GHz
Wireless protocol: AFHDS 3
Range: > 3500m (air)
Antenna type: dual antenna (103mm * 2)
Power: 3.5-12V
RSSI: Supported
Data port: PWM / PPM / i.bus / s.bus / UART
Temperature range: -10 ℃ — + 60 ℃
Humidity range: 20% -95%
Online Update: Yes
Dimensions: 52 * 28 * 22mm
Weight: 22g
Certification: CE, RCM, FCC ID: N4ZFTR1000
【Suitable Transmitter and Models】Suitable for model: Airplane, glider, helicopter, multi-axis aircraft,
Suitable for: Flysky AFHDS3 protocol transmitters, like Flysky PL18 transmitter, easy install and use.
Item: Receiver
Product model: FTr10
Main color: Black
Wireless frequency: 2.4G
PWM channel: 10
Wireless protocol: AFHDS 3
Remote control distance: 10KM (open and no interference limit distance)
Antenna type: double copper tube antenna (103mm * 2)
Power: 3.5-12V
RSSI: Supported
Data interface: PWM / PPM / i.bus / s.bus / UART
Temperature range: -10 ℃ — + 60 ℃
Humidity range: 20% -95%
Online Update: Support
Transmission power: <20dBm(EU)
Dispaly: LED indicator
Size: 5*2.8*2cm
Suitable for model: Airplane, glider, helicopter, multi-axis aircraft
Suitable for: Flysky PL18 transmitter
