Description

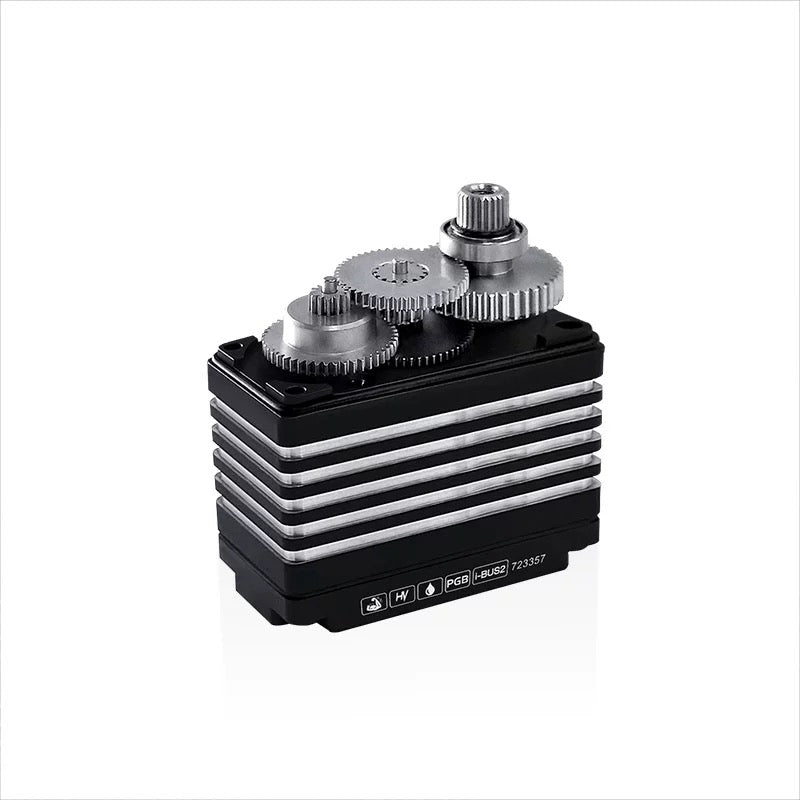

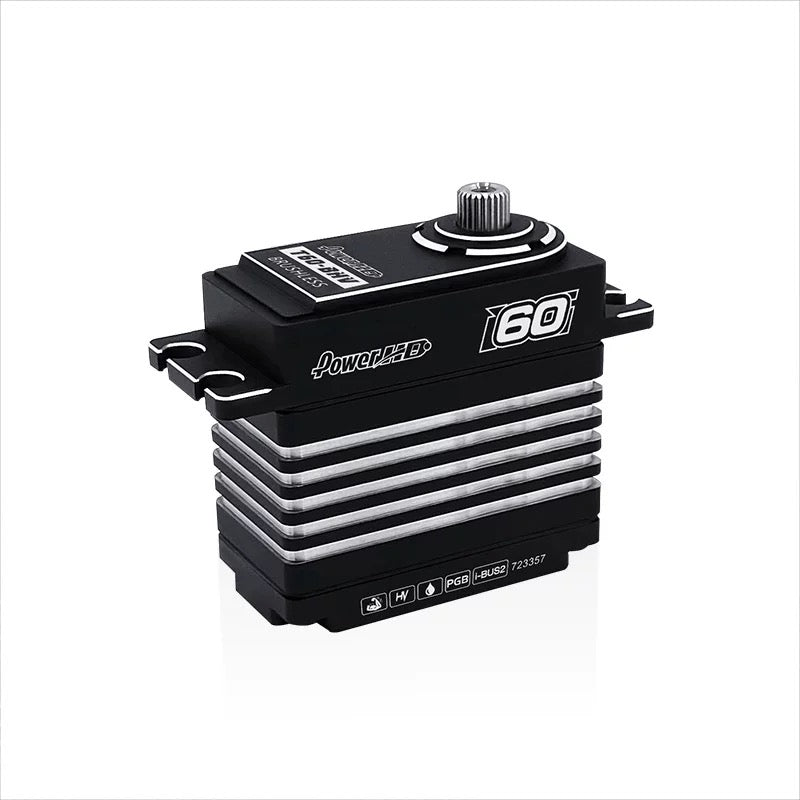

Heavy steering load should not mean slow response. Developed as an extended model of the T50-BHV, the Power HD T60-BHV is a high-voltage brushless servo for demanding 1/8 Truggy setups and other high-load RC applications. Upgraded PCB and brushless-motor hardware improve durability in high-temperature conditions, while output reaches 60kg-cm with 0.080 sec/60° speed at 8.4V.
In This Guide
Key Features
✅ Built for 1/8 Truggy loads — Designed to maintain robust steering torque during high-intensity track use.
✅ 60kg-cm maximum torque — Delivers 45kg-cm at 6.0V, 50kg-cm at 7.4V and 60kg-cm at 8.4V.
✅ Fast high-voltage response — Reaches 0.080 sec/60° at 8.4V for quick steering correction under load.
✅ Upgraded thermal durability — Revised PCB and brushless-motor hardware support demanding high-temperature operation.
✅ Full CNC metal case — Heat-sink-style bottom casing helps move heat away from internal electronics.
✅ Smart setup support — Compatible with i-BUS2 and the Power HD PG-CB63 programming card.
Voltage & Performance
Technical Specifications
Source: Power HD official specifications.
- Operating voltage: 6.0–8.4V DC
- Weight: 83g
- Dimensions: 40.7 × 20.5 × 38.7mm
- Motor: Brushless
- Gears: 7075 aluminum + 303 steel
- Bearings: Dual ball bearing
- Potentiometer: Japanese Noble potentiometer
- Control: ST 32-bit MCU
- Frequency: 1520μs / 50–1500Hz
- Operating temperature: −10°C to 60°C
Compatibility & Programming
The T60-BHV supports standard receiver operation plus listed high-speed modes from Flysky NOR/SR/SFR, Futaba NOR/SR/UR and SANWA NOR/SHR/SSR/SUR/SXR. i-BUS2 enables supported parameter adjustment from compatible Flysky Noble NB4+ and NB4 Pro+ systems. The servo can also be configured with the Power HD PG-CB63 programming card.
Installation Notes
Before powering on: Confirm the 40.7 × 20.5 × 38.7mm case fits your servo bay and that the BEC can supply the required current at 6.0–8.4V. Do not exceed 8.4V. Set endpoints carefully to prevent binding, overheating and excess current draw.
For high-load 1/8 steering, the T60-BHV combines serious torque with fast 8.4V response and transmitter-friendly setup options.
