PowerHD GTS Series HV Brushless Servo | GTS-3 30KG / GTS-5 50KG / GTS-6 60KG / GTS-7 70KG | i-BUS2 IP67 RC Car Servo
SoarSky
SKU: SS-202502SID329
Increments of 1
Minimum of 1
Maximum of
Low stock
In stock, ready to ship
Sale price
$119.90
-15%
Regular price
$139.90
Regular price
$119.90
Unit price
per
Tax included.
Shipping calculated at checkout.
Pay Secure
Tech Suppoort
Most orders are shipped within 48 hours
PowerHD GTS Series HV Brushless Servo | GTS-3 30KG / GTS-5 50KG / GTS-6 60KG / GTS-7 70KG | i-BUS2 IP67 RC Car Servo
Sale price
$119.90
Regular price
$139.90
Regular price
$119.90
Unit price
per
Frequently Asked Questions
What is i-BUS2 and do I need a Flysky transmitter to use the GTS Series?
i-BUS2 is Flysky's smart digital protocol that enables two-way communication between your transmitter and the servo. With a compatible Flysky transmitter (NB4 or NB4 Pro), you can remotely adjust servo parameters (stiffness, speed, deadband, center point, direction), monitor real-time voltage and temperature, and log data for up to 1 hour after racing. Note: the NB4 Pro is required for the data logging and monitoring function. In standard PWM mode, the GTS Series works with any conventional RC receiver without i-BUS2 features.
What is the difference between GTS-3, GTS-5, GTS-6, and GTS-7 - which one is right for my car?
All four models share the same i-BUS2 protocol, IP67 waterproof rating, and 7075 + Steel gear train, but differ in torque output, motor type, and physical size. The GTS-3 (30KG, 63g, 41x20x29mm) uses a standard brushless motor and suits 1/10 EP touring, ebuggy, and crawler builds. The GTS-5 (50KG, 63g, same footprint) upgrades to a 4-pole brushless motor for more torque in the same compact body. The GTS-6 (60KG, 78g, 40x20x38.3mm) and GTS-7 (70KG, same size) are larger-bodied servos for 1/8 and 1/5 scale platforms. Choose based on your vehicle scale and torque requirements.
Are the GTS Series servos truly waterproof - what does IP67 mean?
Yes. All GTS Series models carry an IP67 waterproof rating, which means they are fully protected against dust ingress and can withstand immersion in water up to 1 meter deep for up to 30 minutes. This makes them suitable for wet track conditions, rain racing, and off-road use where water and mud exposure is unavoidable.
What high-speed transmitter modes are supported - is it compatible with Futaba and SANWA?
Yes. In addition to Flysky i-BUS2, the GTS Series supports high-speed modes from multiple major brands: Noble NB4 Pro (NOR / SR / SFR), Futaba (NOR / SR / UR), and SANWA (NOR / SHR / SSR / SUR / SXR). It is also compatible with the Power HD PG-CB63 program box for standalone parameter adjustment without a transmitter.
What voltage should I run the GTS Series at, and is it compatible with LiPo batteries?
All GTS models operate on 6.0V to 8.4V DC, making them compatible with 2S LiPo (7.4V) and 2S LiHV (8.4V) battery systems, as well as NiMH packs at 6.0V. Running at 8.4V delivers maximum torque and speed - for example, the GTS-7 reaches 70 kg-cm at 8.4V vs 52 kg-cm at 6.0V. Do not exceed 8.4V to avoid damaging the servo.
What's in the Box
- 1x Power HD GTS Series HV Brushless Servo (GTS-3, GTS-5, GTS-6, or GTS-7 depending on selected variant)

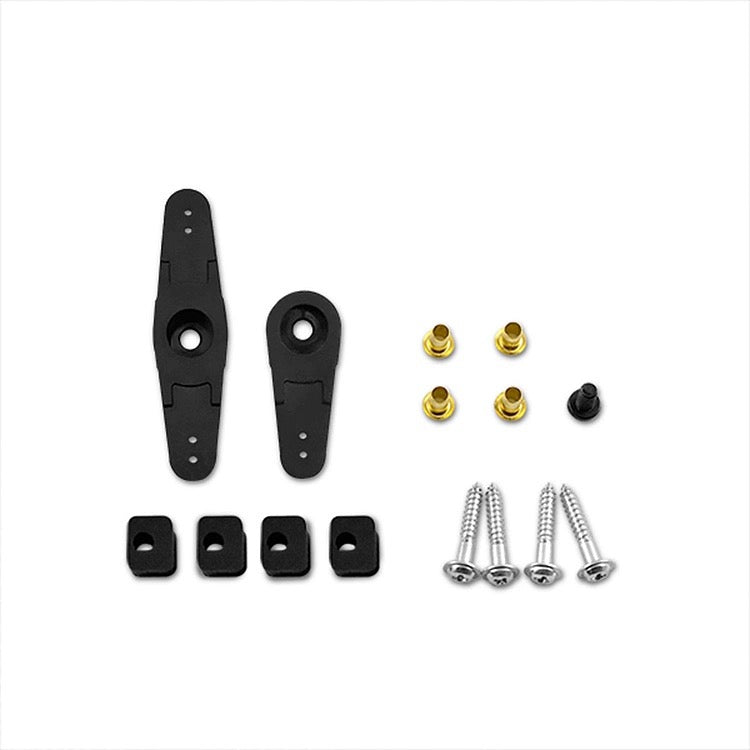

- 1x Servo Horn Set
- 1x Mounting Screws
- 1x User Manual / Specification Sheet
Let customers speak for us
Amazing product and excellent shipping by soarsky
Great product...though I have nb4 ...but nb4+ is way better than nb4
Gurpinder Singh
FLYSKY Noble NB4+ Surface Radio with Receiver FGr4B(English Version)
I love my FLYSKY GT5 transmitter and was so distraught when the steering potentiometer started to fail. Luckily a friend mentioned SoarSky and i ordered a replacement and am back to enjoyable RCing
Josh
Flysky FS-GT5 Steering Wheel Replacement Part including Potentiometer
Gits perfect, sooo happy
Bryan
Chrome Purple Carbon Fiber Full Coverage Protective Wrap Skin for Flysky NB4 / NB4+ RC Car Transmitter - Scratch Proof Waterproof No Residue Decal Sticker
Gundam Decals sheet
I was impressed buy the quality of the vynle. With the proper prep. everything was applied as should be. and it turn out as I hoped it would. I plan to perches another one our two soon.
Mike Abrahams
Flysky NB4/NB4+/Noble Pro/Noble Pro+ Sticker radio skins
Throttle Ribbon
Throttle broke in my local Hobbies store had it in stock went to replace it in the ribbon got torn. This place is the only place that services these parts. Great service great price had it within a week super happy save me from buying a $350 remote.
Arthur Cardinali
NB4+ NB4 Plus NB4 Pro+ NB4 Pro Plus Throttle Trigger FPC Ribbon Cable
Worked great abd nade the nb4+ feel great in the hand.
Kris
Controller sweatband wrap(For Flysky, Futaba, Sanwa, Radiolink)
Bling Bling for my Radio
I love my Flysky and this skin have elevated its appearance. I can't tell you how awesome this kit is.
Anthony Escobedo
Soarsky Flysky NB4/NB4+/Pro/Pro+ metal bright orange skin radio sticker
Transmitter bling bling
Good fit good quality different from the other ones I’ve seen at the track
Lee Dotson
Flysky Noble NB4/NB4+/Pro/Pro+ Carbon Fiber Chameleon Sticker Radio Skin wrap
Excellent spare parts
Good spare parts
Riki Hisada
FLYSKY Noble NB4/NB4+/Pro/Pro+ Throttle/Brake Trigger
NB4+ Grip tape
Great grip tape, easy to wrap handle and makes it so much better to hold.
Got black and blue rolls and thinking it was a great purchase.
Kris Taylor
Controller sweatband wrap(For Flysky, Futaba, Sanwa, Radiolink)
With Ezzzzz!!!
Deep contrast beautiful colors. So ezzz to install perfectly!!!!!!
Norman Cooper
Flysky NB4/NB4+/Noble Pro/Noble Pro+ Sticker radio skins
5 stars
5 star
Lewis Schultz
FMS 1300mm PA-18 3536 Motor Shaft For 1400mm Kingfisher, 1300mm PA-18, 1020mm F3A
Excellent product delivered in a timely manner. There was some confusion with tracking once it got to the states but there was no problem with delivery.
Ben
FLYSKY Noble NB4 Pro+ NB4 Pro Plus Surface Radio 18ch(English Version)
It's very very nice.
Not sure what else to say at the moment as I haven't run it yet. It is very well thought out.
Steven Bass
Flysky NB4+/NB4 Pro+ DragRacing FRM303 range extender Power Amplifier Module Distance Amplifier Module Mount signal enhancer
Description

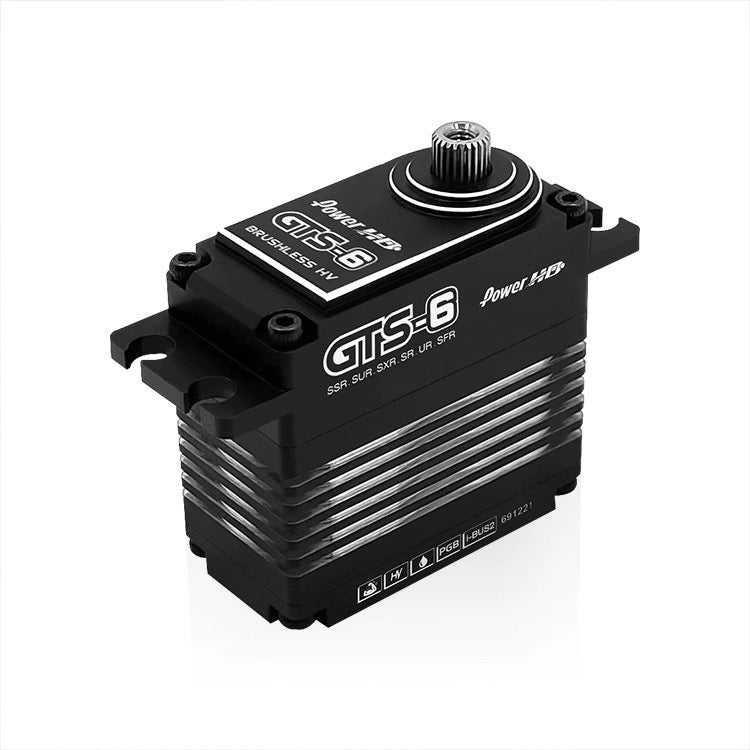

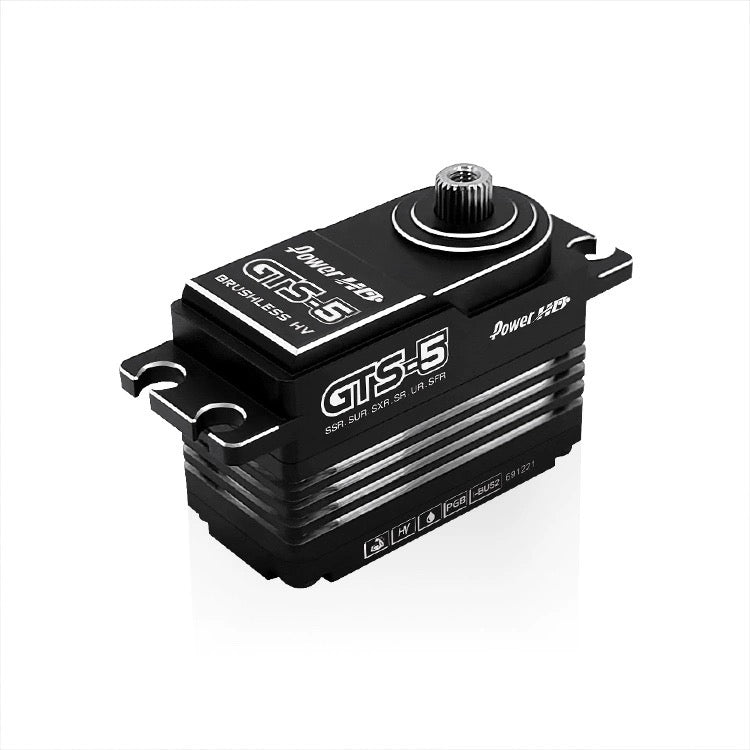

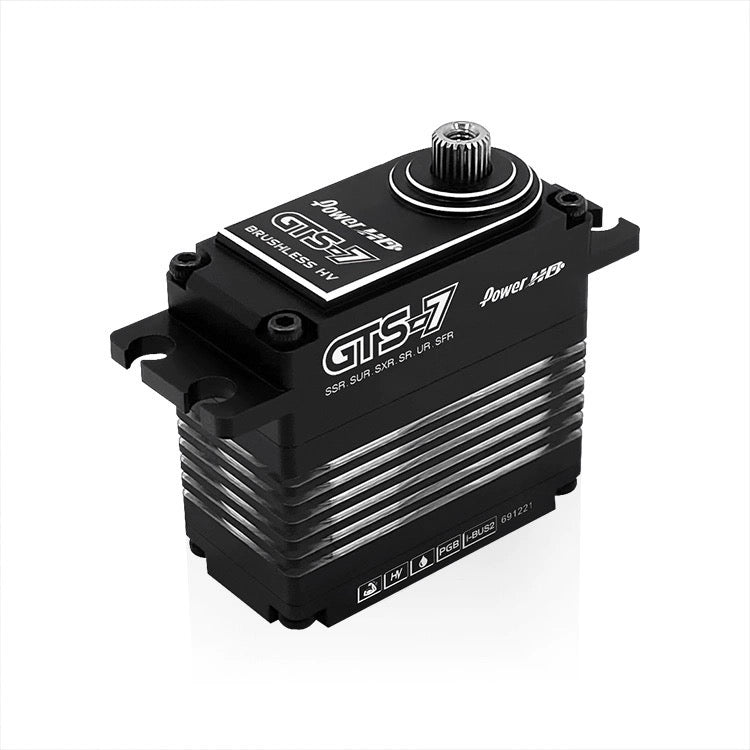

Power HD GTS Series — HV Brushless Servo with i-BUS2 Smart Protocol
The Power HD GTS Series (GTS-3, GTS-5, GTS-6, GTS-7) is a professional-grade high-voltage brushless servo lineup built for competitive 1/10 and 1/8 scale RC racing. Featuring Flysky i-BUS2 protocol support, IP67 waterproof rating, and a 4-pole brushless motor, the GTS Series delivers real-time data monitoring, remote parameter adjustment, and championship-level torque — all from your transmitter.
Key Features
- Flysky i-BUS2 Protocol: Real-time servo parameter setup, data logging, voltage/temperature monitoring, and warning functions via NB4 / NB4 Pro transmitter
- 4-Pole Brushless Motor (GTS-5/6/7): High performance, long lifespan, heat-resistant, faster response
- IP67 Waterproof Rating: Fully sealed against dust and water immersion

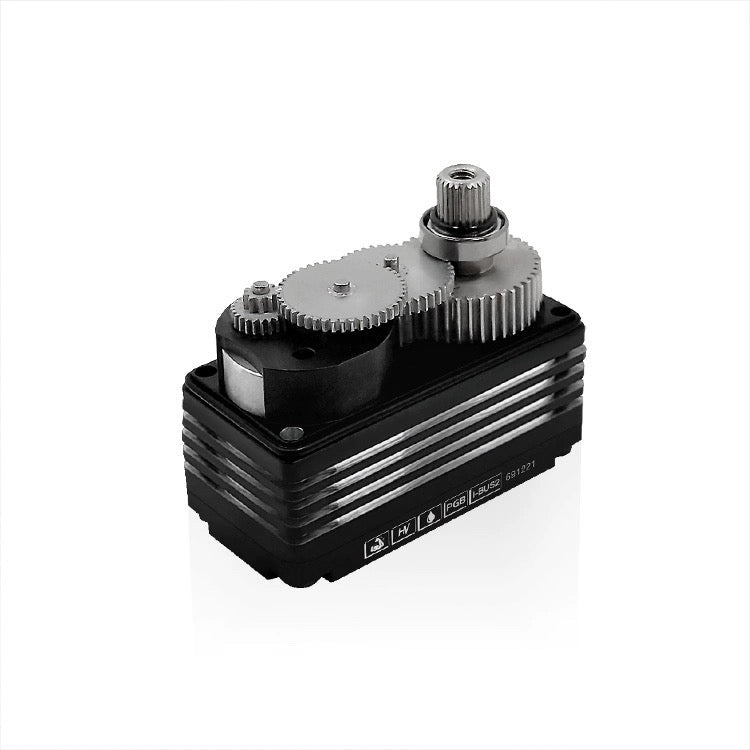

- 7075 Aluminum + Steel Gear Train: Lightweight strength with maximum impact resistance
-
Multi-Brand High-Speed Mode Support:
- Noble NB4 Pro: NOR / SR / SFR
- Futaba: NOR / SR / UR
- SANWA: NOR / SHR / SSR / SUR / SXR
- Power HD PG-CB63 Program Box Compatible
- Data Monitoring: Records voltage, temperature, and signal for up to 1 hour (NB4 Pro required)
Technical Specifications
| Spec | GTS-3 | GTS-5 | GTS-6 | GTS-7 |
|---|---|---|---|---|
| Signal Type | i-BUS2 / PWM | |||
| Operating Voltage | 6.0 – 8.4V DC | |||
| Torque @ 6.0/7.4/8.4V | 20/26/30 kg-cm | 36/42/50 kg-cm | 48/56/60 kg-cm | 52/66/70 kg-cm |
| Speed @ 6.0/7.4/8.4V | 0.083/0.067/0.055 s | 0.11/0.09/0.08 s | 0.10/0.08/0.07 s | 0.15/0.12/0.10 s |
| Max Current | 4.0A | 7.5A | 7.5A | 7.5A |
| Weight | 63g | 63g | 78g | 78g |

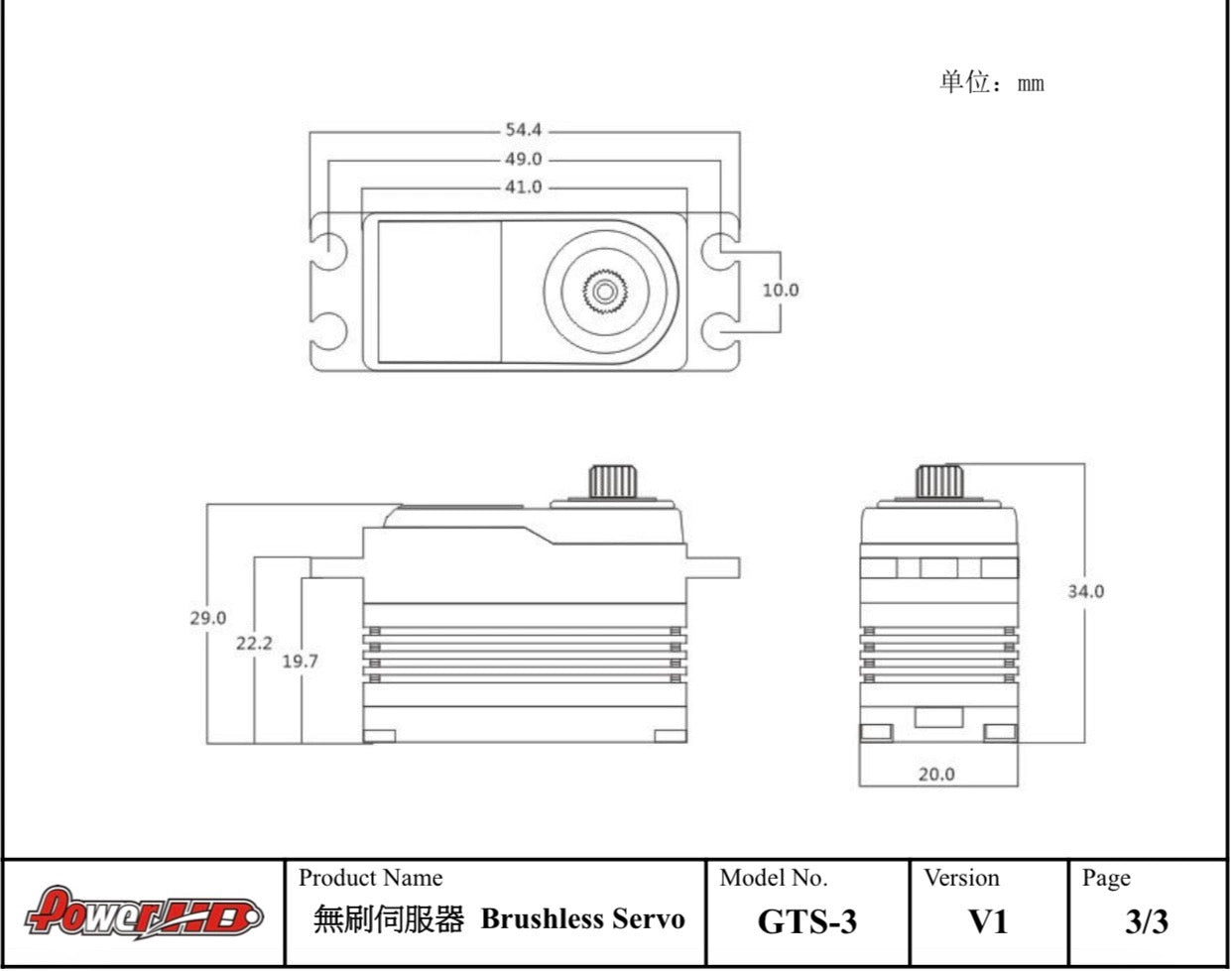

| Dimensions | 41.0x20.0x29.0mm | 41.0x20.0x29.0mm | 40.0x20.0x38.3mm | 40.0x20.0x38.3mm |
| Gear Material | 7075 Aluminum + Steel | |||
| Motor Type | Brushless | 4-pole Brushless | ||
| Frequency | 1520μs / 1666Hz | |||
| IP Rating | IP67 | |||
Vehicle Compatibility
- GTS-3: 1/10 EP Touring, 1/10 Nitro Onroad, 1/10 Ebuggy, 1/10 Crawler, 1/8 Nitro GP
- GTS-5: 1/10 Nitro Onroad, 1/10 Ebuggy, 1/10 Crawler, 1/8 Crawler, 1/8 Nitro GP
- GTS-6: 1/10 Crawler, 1/8 Crawler, 1/8 Nitro Offroad, 1/8 Nitro Truck, 1/5 Nitro Onroad, 1/5 Nitro Offroad
- GTS-7: 1/8 Crawler, 1/8 Nitro Offroad, 1/8 Nitro Truck, 1/5 Nitro Onroad, 1/5 Nitro Offroad
Which GTS Model Should I Choose?
- GTS-3 (30KG): Best for lightweight 1/10 platforms and entry-level competition
- GTS-5 (50KG): Ideal for 1/10 high-torque racing and 1/8 nitro GP
- GTS-6 (60KG): Suited for larger 1/8 and 1/5 scale platforms requiring heavy-duty steering
- GTS-7 (70KG): Maximum torque for the most demanding 1/8 and 1/5 scale applications
