Lumenier ELITE PRO 100A V2.1 6-12S 4-in-1 AM32 ESC - 30x30

The Lumenier ELITE PRO 100A V2.1 6-12S 4-in-1 AM32 ESC is a powerful ESC with the latest AM32 + telemetry and current sensor capable of 100A constant current and up to 12S (52V) input. The CNC aluminum heatsink provides excellent cooling required for high-power setups often required for cinelifters. The 4-in-1 design simplifies the installation, allowing for 4x ESCs all on one board with a simple plug-and-play cable to connect to your flight controller and AM32 passthrough for easy programming and firmware updates. If you're looking for maximum power and performance for your drone or aircraft, this is the ESC for you.

Make sure to check out our other ESCs and our Lumenier product selection!

Features

• Utilizes High-Voltage, Low-Resistance MOSFETs
• Equipped with a Cortex M4 32-bit Processor
• Supports High Demag Compensation
• Dshot300, Dshot600, Dshot1200
• Supports PWM frequencies
• Robust 16V 2A BEC circuit
• Improved Heatsink Design
• 12S high-voltage support
• Dual Mounting Patterns
• Bidirectional + Dshot
• Robust PCB Design
• MOSFET Design
• AM32 Firmware

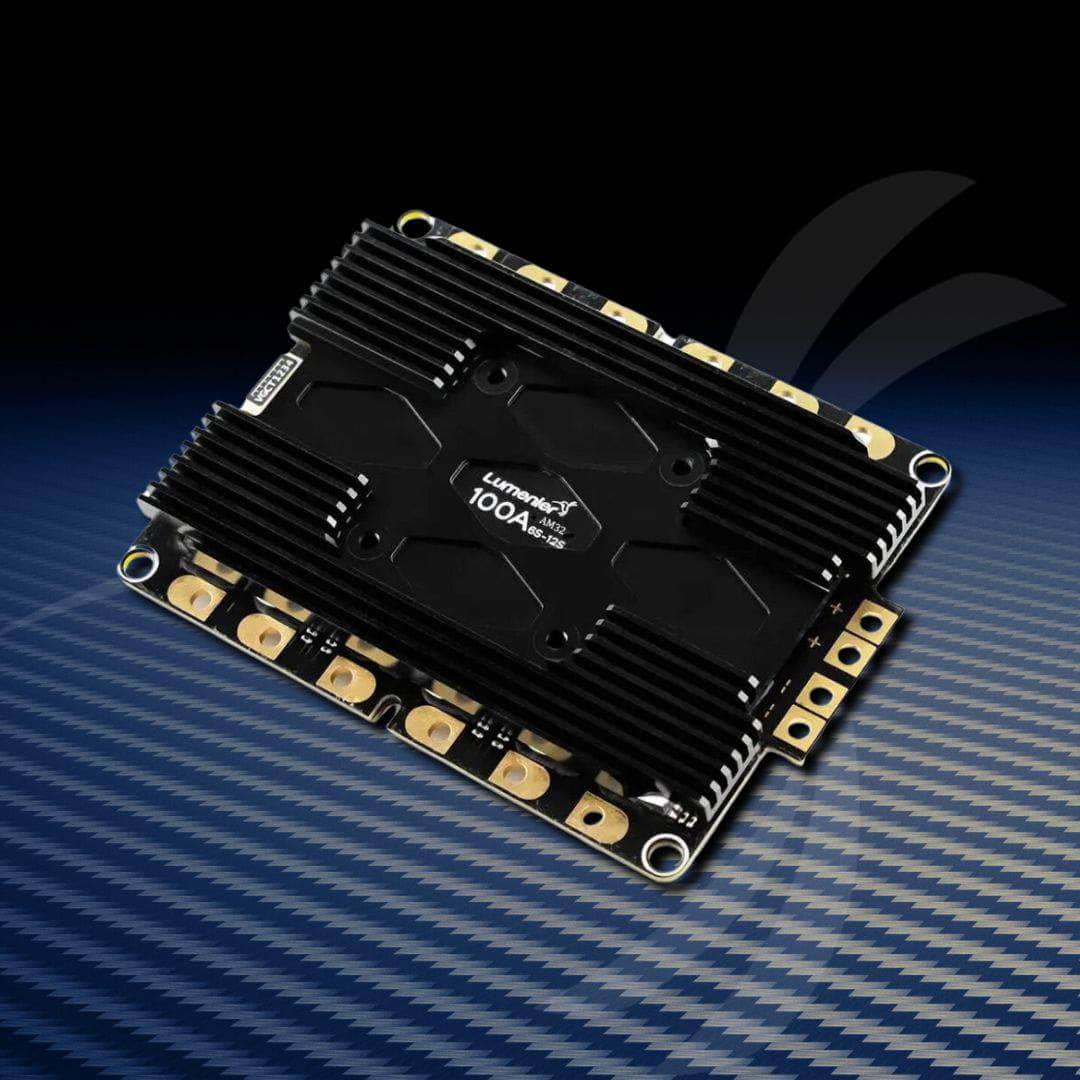

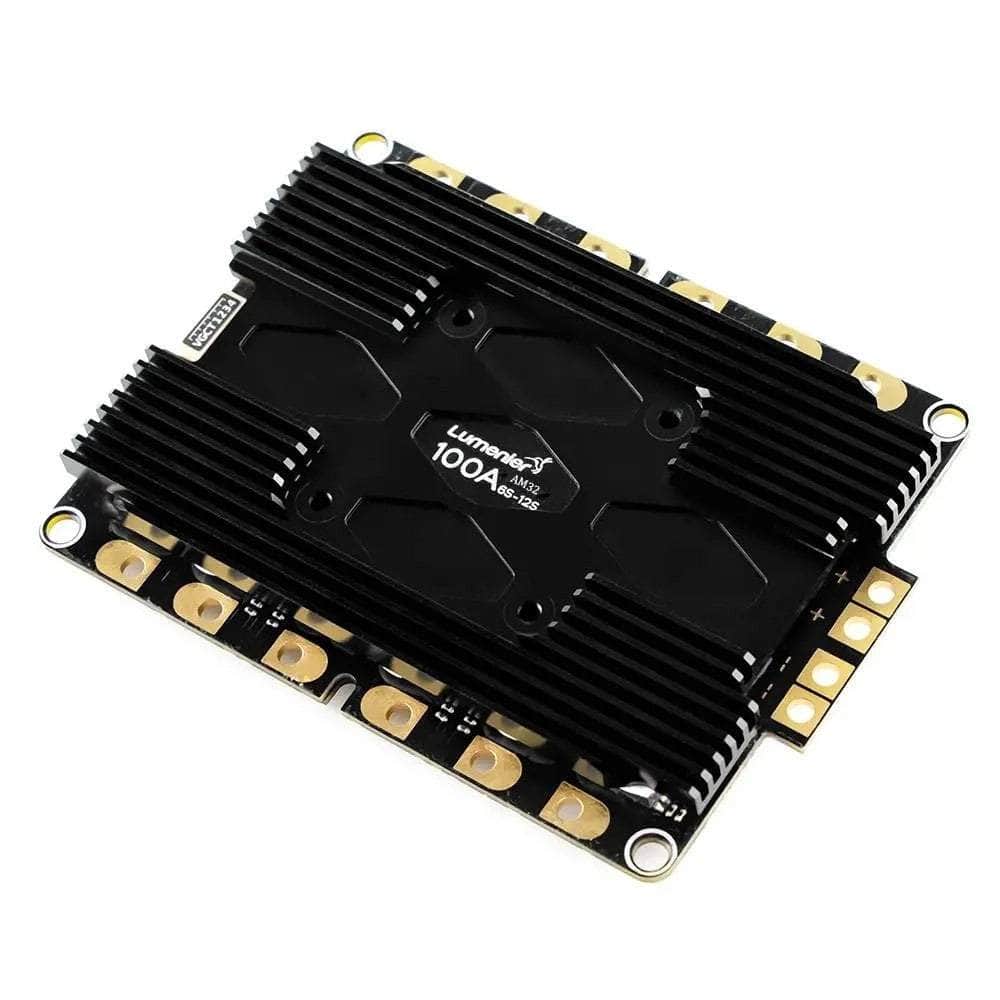

HIGH PERFORMANCE CUSTOM HEATSINK

The custom heatsink design provides improved heat dissipation making this ESC a perfect choice for high power needs found in Cinelifters, large drones, and high-performance racing drones. The heatsink effectively cools the ESC allowing for reliable operation even in challenging environments.

AM32 FIRMWARE AND LIVE TELEMETRY

The Lumenier ELITE PRO 100A V2.1 ESC is a 32-bit ESC running the latest generation AM32 firmware. The 32-bit architecture enables the ESC to run at incredible speeds, resulting in better performance, faster input signals, and lower latency than older 8-bit ESCs. This ESC also features a live telemetry connection for more advanced flight controllers, as well as a top-of-the-line current sensor.

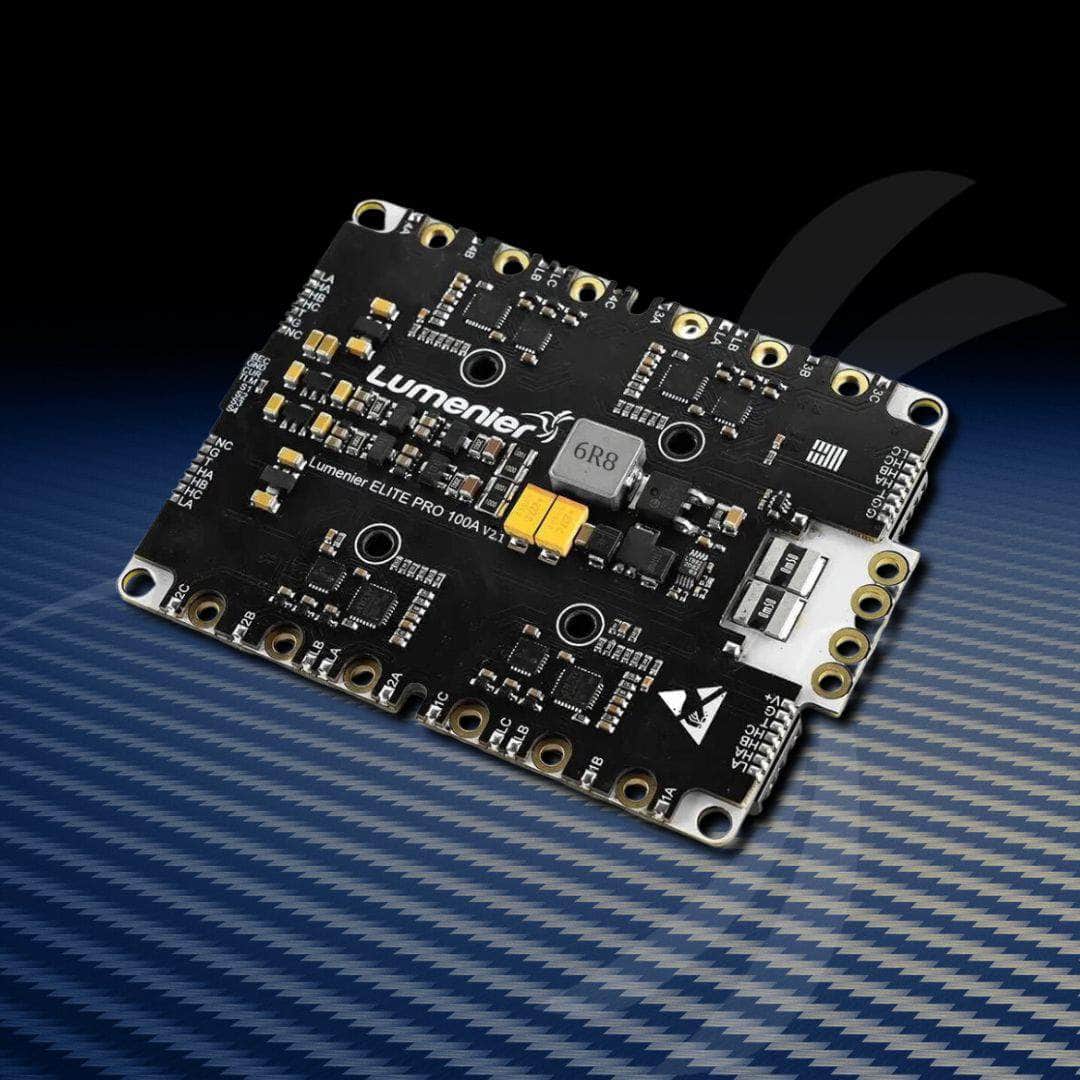

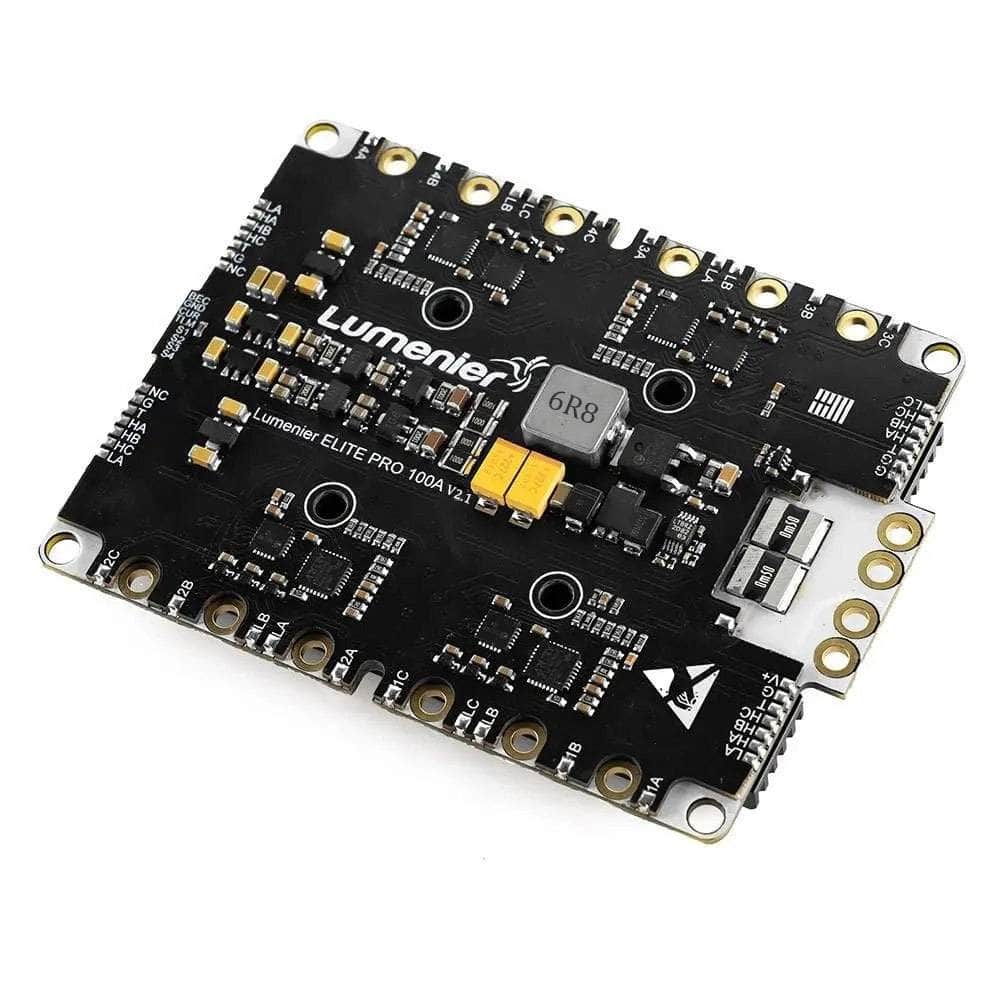

HEAVY DUTY COPPER TRACES

One of the biggest features of this ESC is the heavy-duty copper traces (8oz) which can support extreme current. Additionally, the ESC PCB is 2mm thick and layered on a 2nd PCB of 1mm for a total of 3mm. More copper along with the included aluminum heatsink allows you to push more power to your drone.

BENEFITS OF AM32 FIRMWARE ON 32-BIT ESC

32-bit processors run faster than 8-bit, at which we can expect better performance from the new 32-bit ESCs. Faster input signals with lower latency and higher update rate would be possible, such as Dshot1200 or even faster protocols!

The 32-bit platform also allows more functionality and features that simply weren't possible on 8bit ESCs, such as:

• Improved direction change in the Bidirectional mode
• Auto-timing for higher efficiency and reliability
• Configuring from FC using DShot commands
• Adjustable “Brake on Stop” force
• Programmable PWM frequency
• Voltage/Current limiting
• RGB LED control
• ESC Telemetry

Specifications

• Supports: Dshot300, Dshot600, Dshot1200, MultiShot, OneShot, and normal PPM 1-2us.
• Mounting Patterns: 30.5x30.5m / 86x66mm
• Processors: Cortex M4 32-Bit 120Hz
• 16V BEC onboard to power flight controller
• Dimensions: 98mmx72mmx15mm
• Continuous Current: 100A x4 ch
• Peak Current: 120A x4 ch
• Supports: PWM 8-48kHz
• Mosfet: 100V, 1.5mΩ
• Firmware: AM32
• Voltage: 6-12S
• Weight: 113g

Links

• Download the latest AM32 Configurator HERE.

• Download the User Manual HERE.

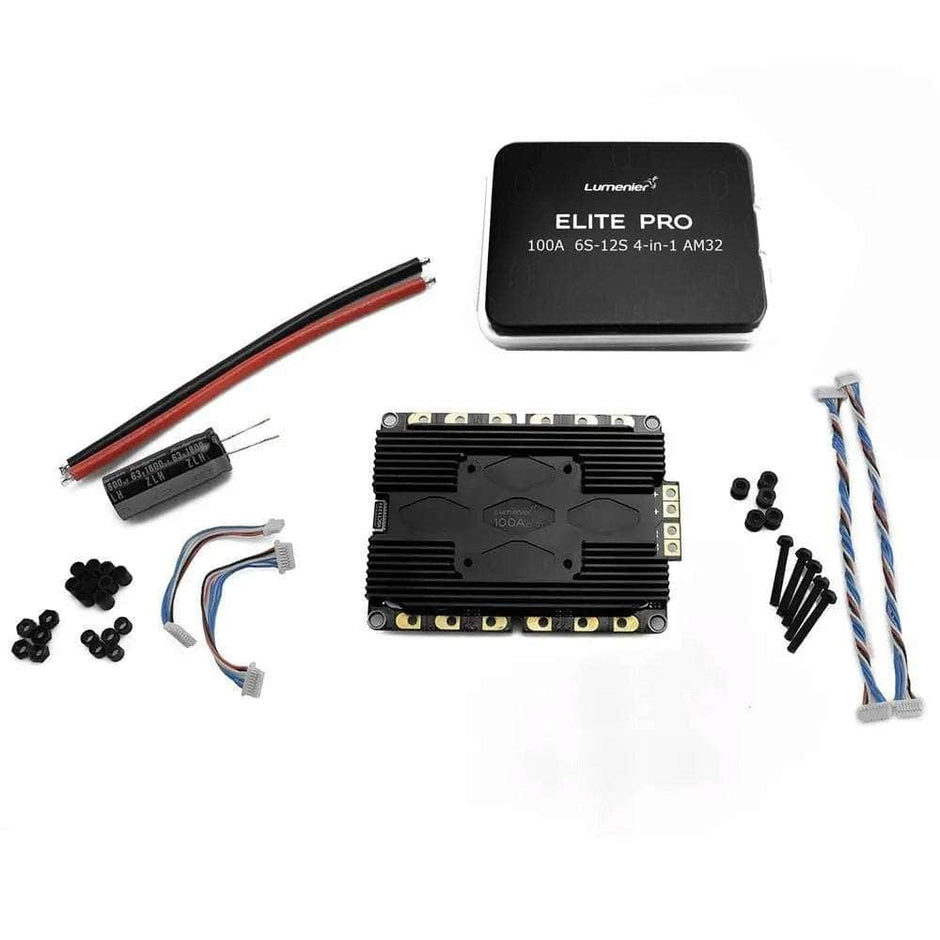

Includes

• 1x Lumenier ELITE PRO 100A V2.1 6-12S 4-in-1 AM32 ESC - 30x30
• 2x 10AWG 200°C Wire - Black / Red 160mm
• 2x 8pin JST Breakout Cable (long 120mm)
• 2x 8pin JST Breakout Cable (short 70mm)
• 5x M3 Rubber Grommets
• 1x 63V 1800uF Capacitor
• 1x Hardware Kit
