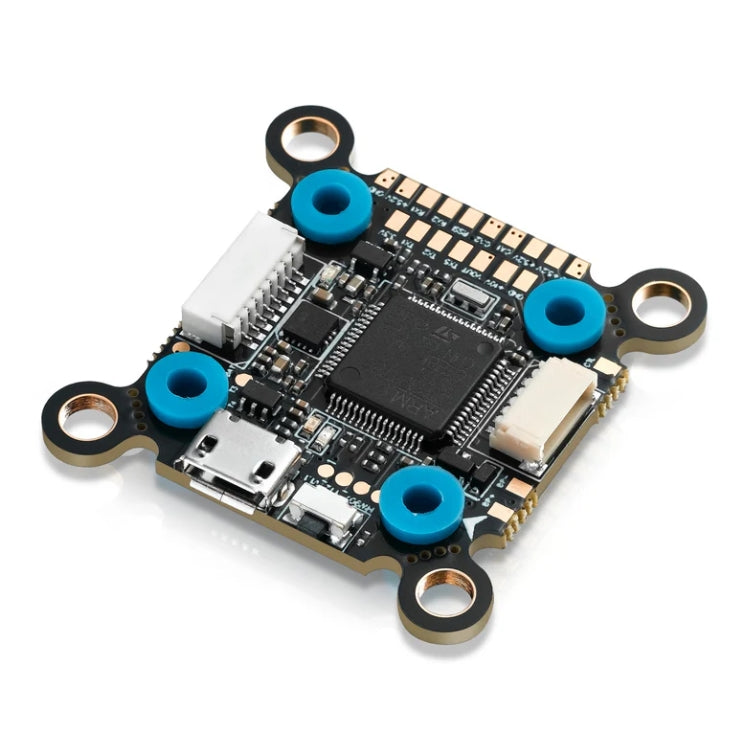

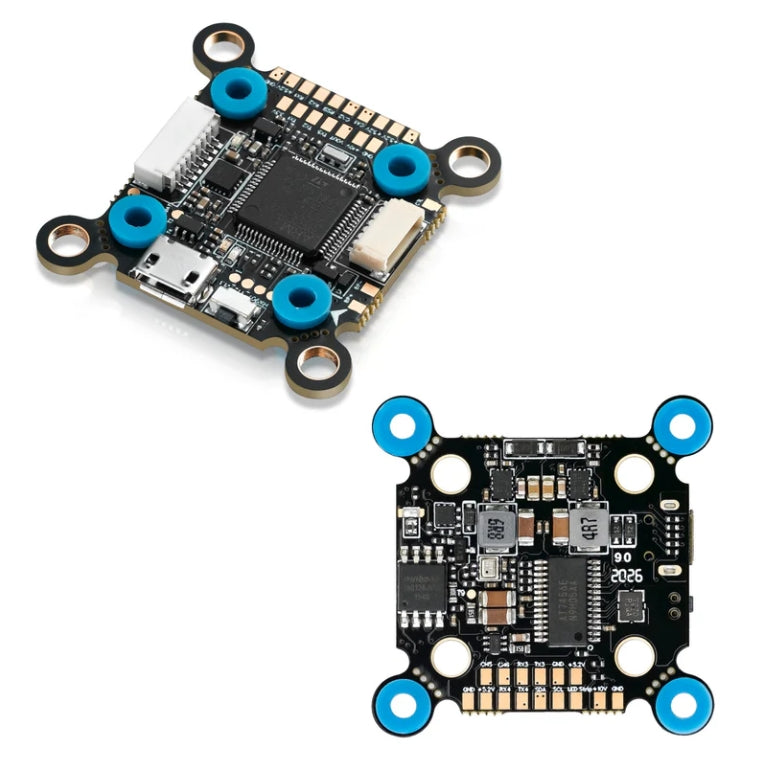

Hobbywing XRotor Flight Controller F7 Convertible for FPV Racing
Increments of 1
Minimum of 1
Maximum of
Low stock
In stock, ready to ship
Sale price
$48.99
-29%
Regular price
$69.00
Regular price
$48.99
Unit price
per
Tax included.
Hobbywing XRotor Flight Controller F7 Convertible for FPV Racing
Sale price
$48.99
Regular price
$69.00
Regular price
$48.99
Unit price
per
Couldn't load pickup availability
Let customers speak for us
Air3S/mini 4 pro case... Better than expected
Very satisfied with the build quality and was happy to find out I could fit my Air 3S, Mini 4 Pro and Neo in the case with all accessories and RC2 controller
JP Eggert
SoarSky
Perfect Carrying Case!
Awesome transmitter case with a perfect fit for my Noble complete with metal screen protector. Was surprised how fast the shipping was considering it's from overseas, only 8 days. Great deal on a great product with good shipping. Thank you!
M Merrell
Flysky Noble radio transmitter carrying case bag suitable for NB4/NB4+/NB4 Pro/NB4 Pro+
Chargerswork greatThankyou
Base chargers work great Thank you
Stewart Small
Flysky NB4 Pro+ Wireless Charger
Awesome bag
Really like it, very practical. Great bag for the price !
Richard Savaria
Flysky Noble radio transmitter carrying case bag suitable for NB4/NB4+/NB4 Pro/NB4 Pro+
Fits as advertised
I like how they changed the battery compartment
Jason Mowery
Flysky noble NB4/NB4+/Pro/Pro+ shell outer case replacement
Artery for NB4 pro battery
Love the batteries now I have a back up when racing
Stewart Small
Flysky NB4 Pro+ Battery Base Wireless Charge
Great skin for my transmitter. Took it to the next level! Everything went on and is staying on. Only complaint i have is that there were no instructions. Which doesn't matter for most pieces.
Devin Picton
Flysky NB4/NB4+/Noble Pro/Noble Pro+ Sticker radio skins
Replacement Brake Trigger
I had read where several people were having trouble with their FlySky NB4+ brake trigger breaking off. I did not have that issue, but I also didn't want it happening to me, so I decided to order this replacement (& upgraded) throttle/brake trigger. Mine was the red anodized version to match the rest of the aluminum parts on my transmitter. I am very happy with 1. How relatively easy it was to install. 2. How it looks and 3. How well it works. Thanks!
Shaun
Noble throttle hardware brake trigger set
Well made and fits the transmitter with a couple extras perfectly
This is exactly what my son and I needed to make trips with the RCs easier. Whether it's to the track, park, or grandparents, this bag does the trick very well.
Thomas G.
Flysky Noble radio transmitter carrying case bag suitable for NB4/NB4+/NB4 Pro/NB4 Pro+
Reciever
Works as it was designed to.
Carl Woodruff
SoarskyRC Flysky FGr4S V2 Receiver, 2.4GHz 4CH AFHDS 3 Receiver
Great alternative to the battery base!
Fits really nicely and works well. Well made and light weight while protecting the connections. First saw it on WTF RC Cars Youtube!
J Y
FLYSKY Noble NB4/NB4 Pro/NB4+/NB4 Pro+ 3D Printing Type-C Base
Noble radio battery base
Really like this product, it’s smaller and lighter than the base battery u get with the noble nb4 and way more stylish. Also it’s magnetic which is handy in the pits. Loos cool and works well 👍🏻
Liam
FLYSKY Noble NB4/NB4 Pro/NB4+/NB4 Pro+ 3D Printing Type-C Base
Worked prefectly
Got this and the ribbon cable. Installed and working.
Wayne Schroeder
FLYSKY Noble NB4/NB4+/NB4 Pro+ Steering wheel connector
Best store ever!
Awesome store! This was the only place where I could find the parts I need.
Emiliyan Mihaylov
FLYSKY NB4 Noble Steering wheel FPC Flat Ribbon Cable 1
NB4 Outer Case
Product is good, i ordered NB4 Outer case but they sent me a NB4+.
Dan Paul Pacunla
Flysky noble NB4/NB4+/Pro/Pro+ shell outer case replacement
Description
F7 Convertible Flight Controller that works w/ Special interface for DJI image transmission system
- Redesign every aspect
-
Super hardware and running speed Equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity MPU6500 six-axis motion sensor. It can perfectly support bidirectional DShot digital throttle communication. The integrated OSD chip can adjust and set each OSD parameters in FC parameter adjustment software and radio, which is simple and convenient. On-board large capacity Flash memory chip can record and store more flight logs, which is convenient for users to debug aircraft based on flight data.
- Special interface for DJI image transmission system With DJI image transmission system port, equipped with corresponding flat cable (FC has been equipped), can avoid welding, realize plug and play.
- On-board 5V & 10V dual BEC circuit FMU integrates with 10V BEC circuit. It can supply super power output for image transmission and 10V LED devices.
- On-board Pit Switch module FC integrated Pit Switch module can open or close VTX by radio after being adjusted on FC parameter software. Easy and convenient.
- Perfectly support firmware of various FPV It support the firmware of BetaFlight , Cleanflight , Butterflight , inva and other mainstream FPV, and can use corresponding parameter adjustment software to adjust various parameters, making the FC more suitable for various FPV flight and race.
-
Unique installation design and shock absorption structure The double hole distance mounting hole design (30 * 30MM & 20 * 20MM) can adapt to different frames. The unique flexible flat cable connection mode (The effect is better with hobbywing tower 4in1 ESC ), and the shock absorption mechanism of installation hole, can effectively reduce the impact of external vibration on FC high-sensitivity components, and make the flight more stable and accurate.
- Perfectly match with Hobbywing ESC Match with Hobbywing tower 4in1 ESC, easy to install and wire. The appearance is more beautiful.
- Volt/Amp monitoring port allows users to check the battery voltage (BAT port) and current (CRT port , extra current meter is needed).
- Buzzer output port allows users to connect external buzzer(s) to the FC for warning or informing the flight status of the aircraft.
- Micro USB port allows users to connect the FC to a PC to flash firmware and adjust parameters.
- Switch module of board load graphic transmission(VTX) can use remote control to control switch of graphic transmission.
-
Double M3 mounting holes with damping aprons.
| Model | Micro F7 Flight Controller Convertible |
|
SKU
|
31003002 |
| Application | FPVs with 130-300mm FPVs Diagonal Wheelbase |
| Firmware | HOBBYWING_XROTORF7CONV |
| FC Programming | supported |
|
Programming via
|
Betaflight/Cleanflight-configurator and Others |
| Compatible with (Modes) | PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, DShot1200, Proshot1000 and etc |
| Compatible with (Transmitters) |
PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL, and etc.
|
| OSD | Buit-in / Fit for DJI VTX system plug and play port |
| Voltage Monitoring | Supported |
| Current Monitoring | Supported |
| External Buzzer | Supported |
| LED Control | Supported |
| USB Port | MicroUSB |
| Timing | Supported |
| Motor Rotation | Supported |
| Mounting Holes |
30.5x30.5mm & 20x20mm |
IMPORTANT
Please ensure that you’ll solder the capacitor included in the box onto the ESC when soldering input wires, otherwise, failing to do so ESC will get burnt/damaged. see IMPORTANT NOTES below
-
HOBBYWING products purchased from Hong Kong / Chinese retailers do not confirm CE / North America regulation - deems products non-warranty
-
Discount /auction stores such as eBay, Banggood, are considered "non-authorized sales channel" in North America. Products deem non-warranty
