Hobbywing Ezrun 4278SD/4268SD 2250kV Brushless Motor - Sensored 3-6S-MAX8 G2 ESC Combo
Hobbywing Ezrun 4278SD/4268SD 2250kV Brushless Motor - Sensored 3-6S-MAX8 G2 ESC Combo
Shipping to
Estimated delivery on
- Complete after-sales technical support
99 in stock
Competition Motor For 1/8 cars
Specification
Model |

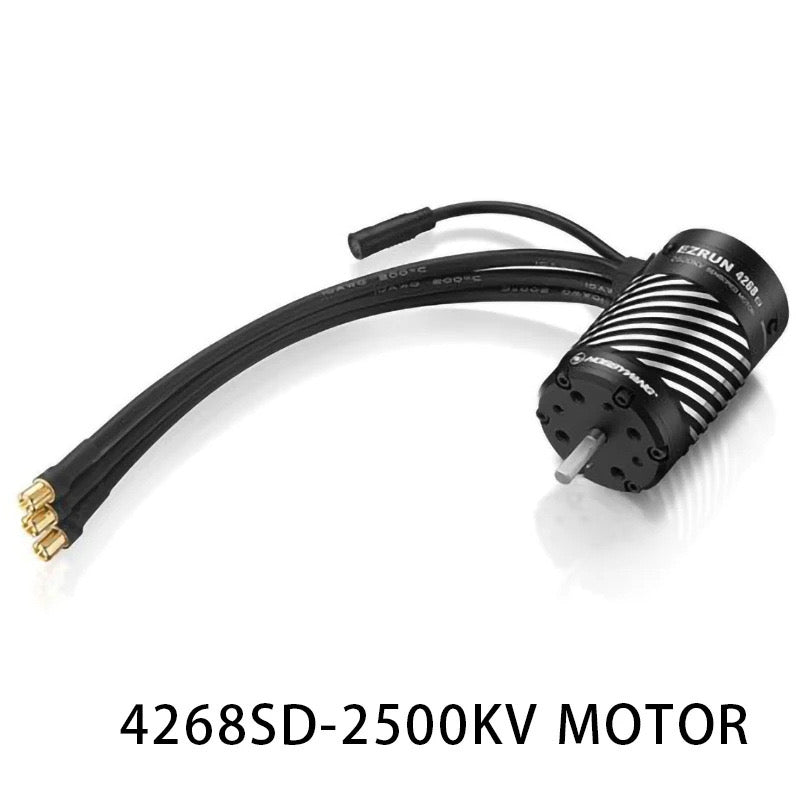

EZRUN 4268 SD |

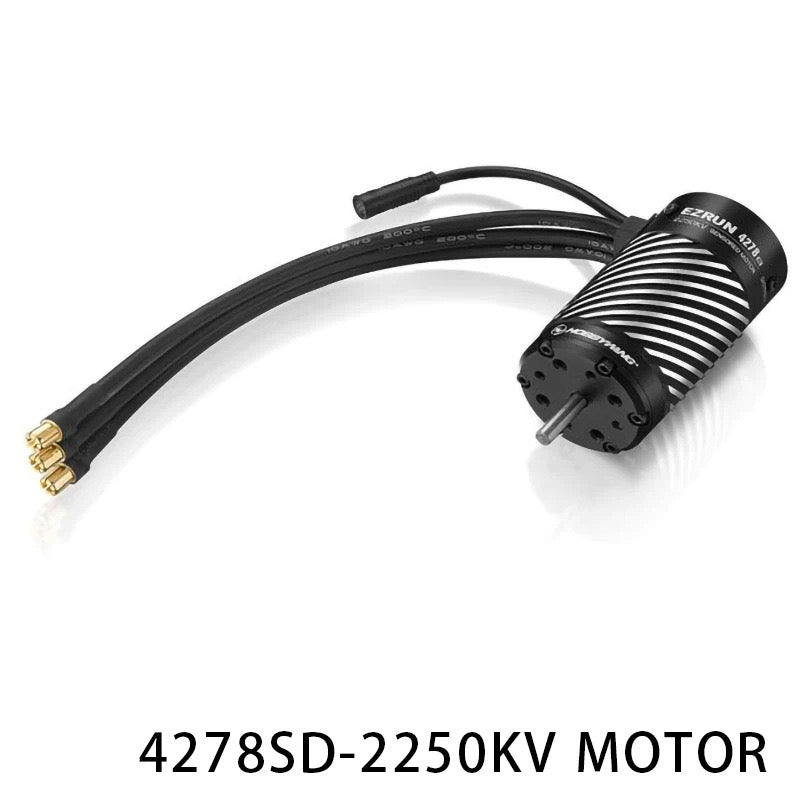

EZRUN 4278 SD |
PN |
30402751 |
30402800 |
Pole |
4 |
4 |
KV(No-load) |
2500KV |
2250KV |
R. (Ω) |
0.0065Ω |
0.0048Ω |
Current No-load(A) |
4.8A |
5.0A |
Motor D.&L(mm) |
42mm / 68mm |
42mm / 78mm |
Shaft D.&L of the projecting part(mm) |
5mm / 18.5mm |
5mm / 18.5mm |
LiPo(S) |
3-4S Lipo |
3-6S Lipo |
W (g) |
355g (no wire) |
455g (no wire) |
Applicable |
1/8 off-road,1/10 truck、crawler |
1/8 truck, crawler |
Best match with |

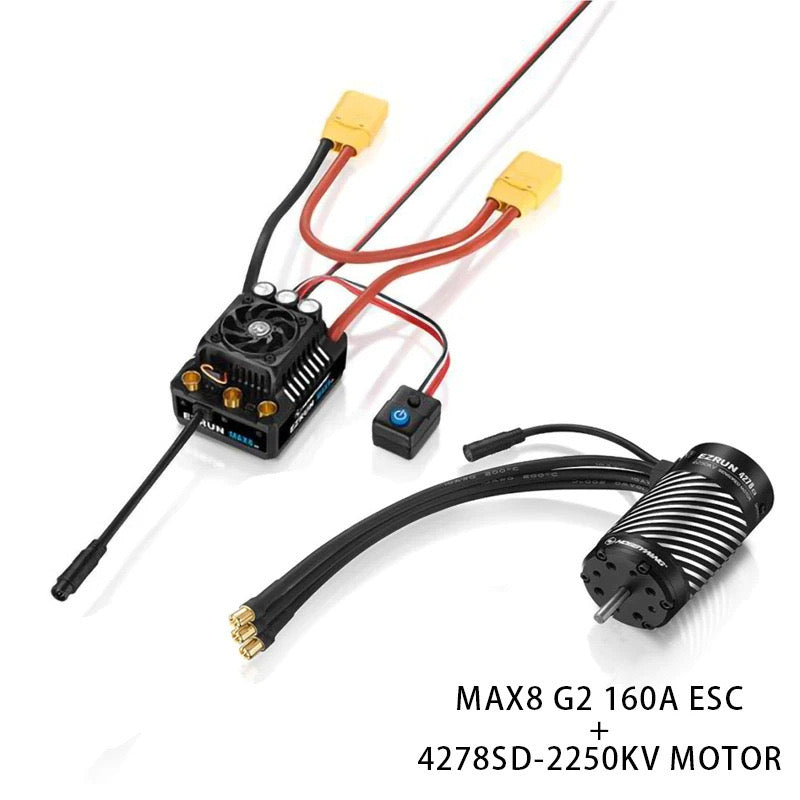

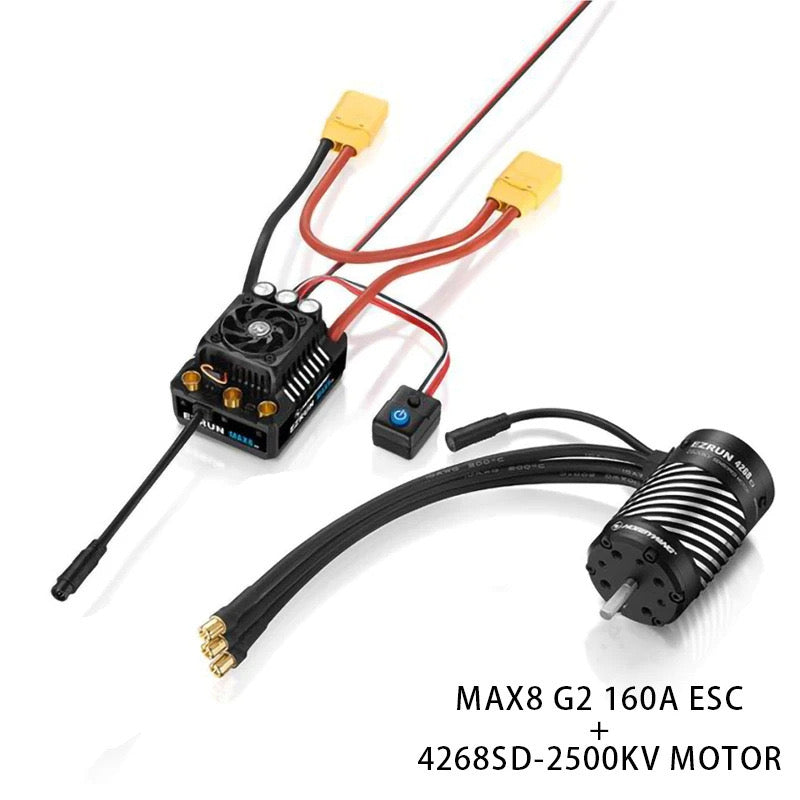

MAX 8 G2 ESC |
MAX 8 G2 ESC |

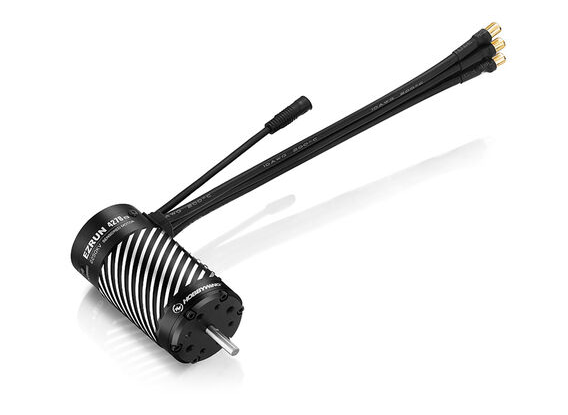

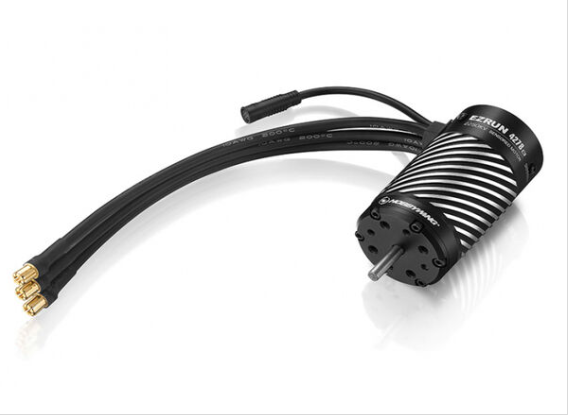

Hobbywing EzRun 4278-2250Kv 3-6S - Sensored Sport Brushless Motor
EzRun 4278SD G2 Features:
-
Chip built in the motor, when matched with Hobbywing EZRUN MAX8 G2 esc, it not only has perfect compatibility, the ESC can automatically identify the motor and build a pure/full sensor mode power system, providing better manipulating performance and more delicate manipulating feel.
-
The rotor adopts four strong magnetic and high temperature resistant sintered Nd-Fe-B magnets, widens the magnetic tile, provides super torque, and makes the motor have strong explosive force and stable output power.
-
The independent high-precision encoder always outputs pure rotor position signal, which effectively avoids the interference of sensor signal and makes the motor work stably in sensor state.
-
High output efficiency, effectively reduce the motor temperature and output more power under the same load.
-

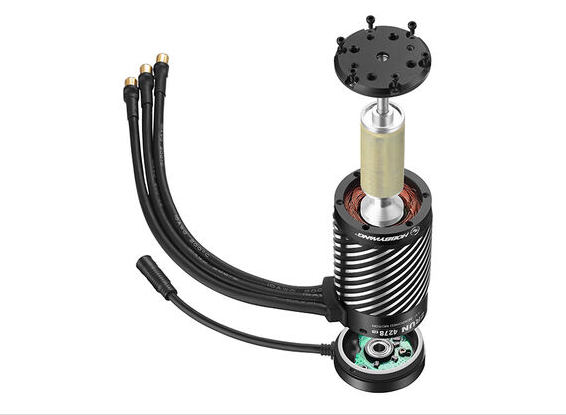

CNC machined aluminum housing, high purity copper windings, advanced rotor structure, 0.2mm silicon steel laminations, high-quality stainless steel output shaft, high-precision bearing for high durability and smoothness.
-
The innovative new sensor interface and rubber cover bearing have better waterproof and dust-proof effect than the traditional sensor motor.
Applications:
-
Vehicles: 1/8 Trucks & Monster Trucks (Sport)
