Description
The GDW IPX896 HV Shark is a brushless digital servo with steel gears and a 25T output spline for RC steering and other compatible control applications. The supplied specification lists 43kg·cm torque at 8.4V, with lower figures at 6.0V and 7.4V. Check the available installation space, horn, linkage and receiver/BEC supply before selecting it for a crawler, car or aircraft.
Key Features
- Brushless motor: the specification identifies a 17 × 18 mm brushless motor. The earlier title's conflicting coreless wording has not been retained.
- Voltage-dependent performance: supplier-reported torque ranges from 32kg·cm at 6.0V to 43kg·cm at 8.4V.
- Steel gear train: listed steel gears with a 25T, Ø5.9 mm horn spline.
- Digital control: supplied signal specification is 1520µs / 333Hz. Verify the intended receiver/controller's output settings.
- HV operating range: listed 4.8–8.4V operation; receiver and other connected equipment must also support the chosen supply voltage.

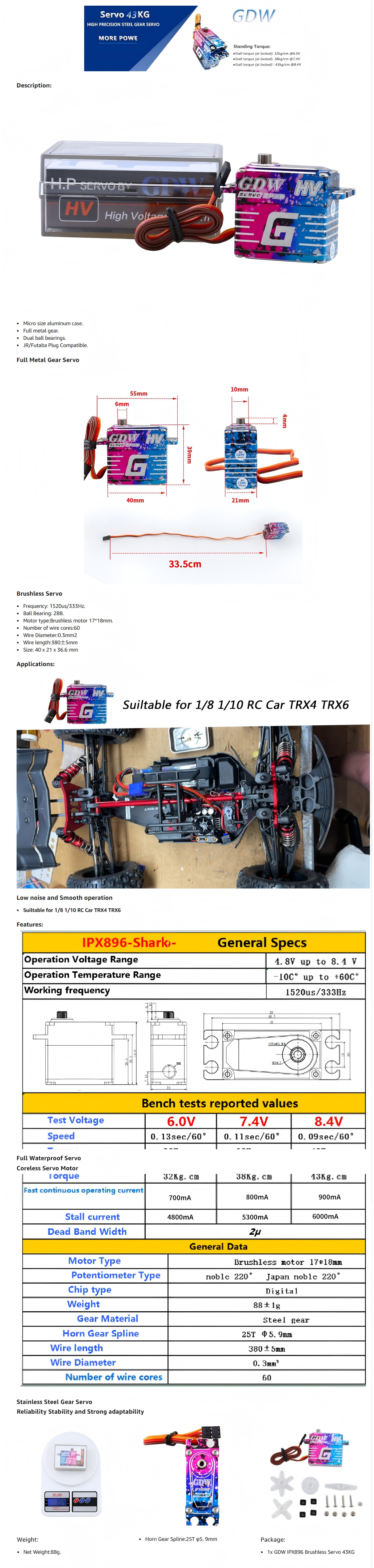

- Fitment reference: supplied illustrations show the case, mounting ears, shaft and accessories for installation planning.

Torque & Speed by Voltage
The supplier's bench-test table reports the following values. These are source specifications, not independent SoarSky test results or continuous-load guarantees.
Torque: 32kg·cm · Speed: 0.13 seconds / 60°
Torque: 38kg·cm · Speed: 0.11 seconds / 60°
Torque: 43kg·cm · Speed: 0.09 seconds / 60°
43kg·cm is a torque specification at a stated voltage, not a 43kg lifting-capacity guarantee. No corresponding performance figure is supplied for 4.8V. The table lists stall current up to 6000mA at 8.4V; select the power system for load-related current demand rather than relying only on a light-load figure. Avoid holding the servo against a mechanical stop.

Specifications & Dimensions
Lead-length discrepancy: the table and photo do not agree. Confirm the actual supplied lead if routing or extension length is critical. The 55 mm illustration refers to overall mounting-ear span, not a verified mounting-hole centre distance. Measure the mounting pattern and allow room for the horn and linkage.

Vehicle Fit & Power Requirements
The source advertises applications in 1/8 and 1/10 RC cars, crawlers and fixed-wing aircraft, and specifically mentions TRX4/TRX6. These are intended-use references, not proof of a drop-in installation in every version. Confirm case clearance, mounting-hole spacing, horn engagement, linkage geometry and any vehicle-specific adapters before purchase.
- Supply voltage: choose a BEC/supply setting within 4.8–8.4V and within the limits of the receiver and every device sharing that rail. HV servo support does not make an entire receiver system 8.4V-compatible.
- Current capacity: verify the BEC, receiver power path, wiring and connectors can support servo demand without voltage drops. The supplier's 8.4V stall-current figure is 6A for this servo alone, not a complete-system BEC sizing recommendation.
- Horn fit: verify the listed 25T spline against the actual horn, clamping method and linkage. Do not infer universal horn compatibility from tooth count alone.
- Travel and signal: confirm receiver/controller compatibility and set endpoints for the actual mechanism. The potentiometer's 220° description does not establish a user-commanded 220° travel range.
Water-Resistance Guidance
The source markets the IPX896 Shark as waterproof and describes a water-resistant housing. No defined ingress-protection rating, depth, duration or test report is supplied. The model name IPX896 must not be interpreted as an IP certification.
Do not assume suitability for deliberate immersion, pressure washing or saltwater use. Protect the receiver and connections separately, and follow GDW's model-specific care instructions. Water-themed graphics do not establish a safe exposure limit or a guarantee against water damage.

Installation & Setup
- Disconnect vehicle or aircraft power before replacing the servo. Check mounting clearances and plan the lead route away from gears, shafts, heat and sharp edges.
- Confirm connector pinout, supply voltage, receiver signal settings and BEC capacity before connecting. Do not infer polarity solely from a photograph.
- Centre the servo electronically with the linkage disconnected, then switch off before fitting the compatible horn and securing hardware.
- Set conservative endpoints and reconnect the linkage. Increase travel only as required, checking the full mechanism for binding or chassis contact.
- Test steering/control response without operating the model under load. Investigate persistent buzzing, overheating, unexpected resets or supply voltage drops before use.
- Recheck fasteners, failsafe behavior and free linkage movement before driving or flying.
Accessory Reference
The supplied accessory photo shows the servo with its lead, several horn shapes, mounting grommets, screws and metal mounting hardware. A separate verified item-by-item packing list is not supplied. Confirm exact accessory quantities and the required vehicle-specific horn or adapter if essential to the installation.


Choose the IPX896 after confirming your required torque at the available voltage, mounting space, horn and power-system capacity. Contact SoarSky if you need clarification of the actual lead length, water-resistance conditions or accessory list before ordering.
Product FAQ
Is the IPX896 coreless or brushless?
The supplied specification identifies a brushless motor, 17 × 18 mm. This page follows that specification rather than the earlier title's conflicting coreless wording.
Does it produce 43kg·cm at every operating voltage?
No. The supplier reports 32kg·cm at 6.0V, 38kg·cm at 7.4V and 43kg·cm at 8.4V. These are source test values, not continuous-load guarantees.
Is it a guaranteed direct replacement for TRX4/TRX6?
No. The source lists those applications, but case fit, mounting pattern, horn, linkage and receiver/BEC power must be checked for the exact vehicle.
Can it be submerged because the name starts with IPX?
No defined immersion rating or exposure conditions are supplied. IPX896 is the model name, not evidence of an ingress-protection certification.
How long is the lead?
The table says 380 ± 5 mm, while the dimension photo says 33.5 cm. Confirm the actual supplied lead if the difference affects routing.
