FlySky Tr8B 3rd Generation Protocol Dual Antenna Bidirectional Transmission Micro Receiver For Rc Drone / Rc Model Parts

FlySky Tr8B Dual Antenna Bidirectional Transmission 3rd Generation Protocol Receiver Adapted to NB4 PL18 AFHDS Remote Control

Product description:

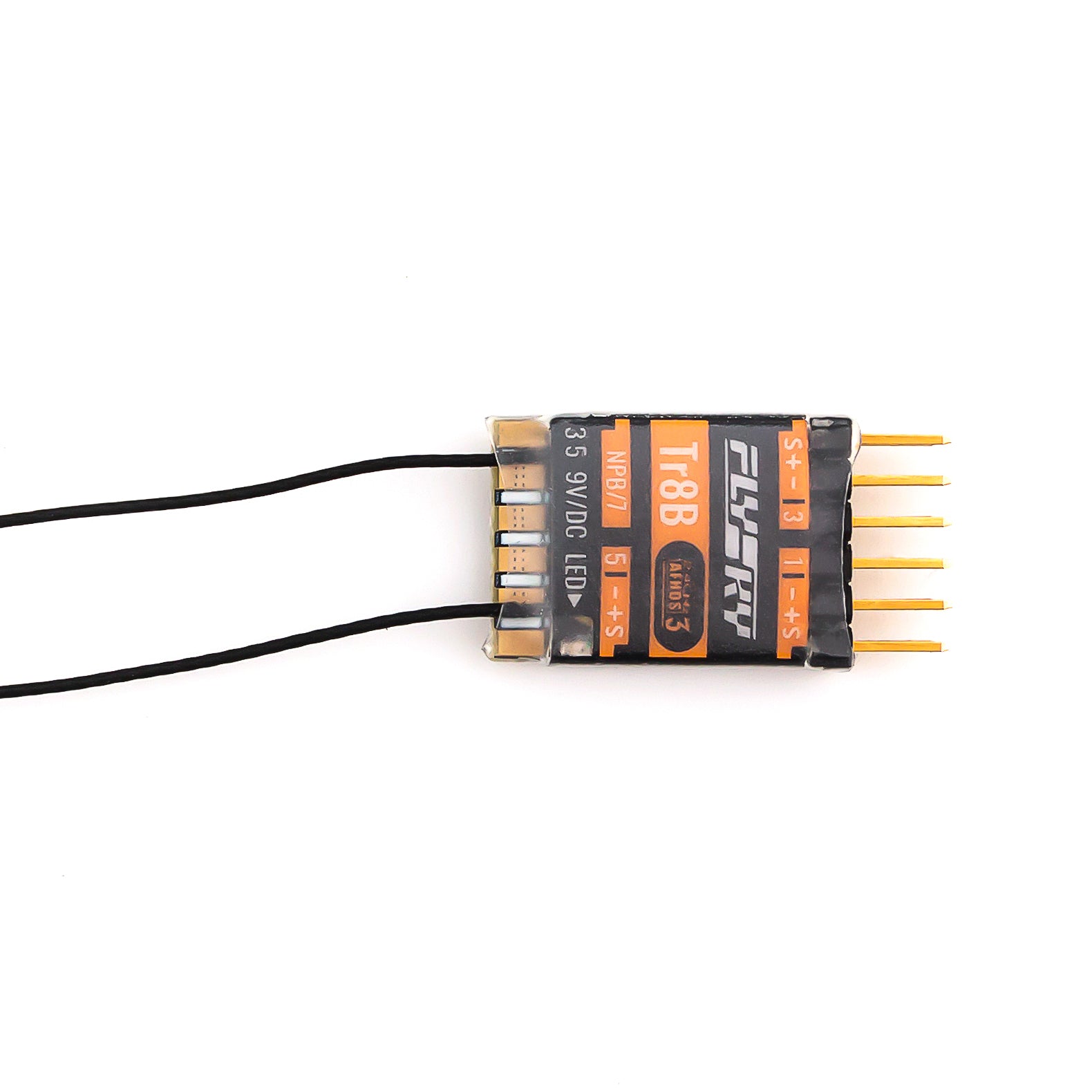

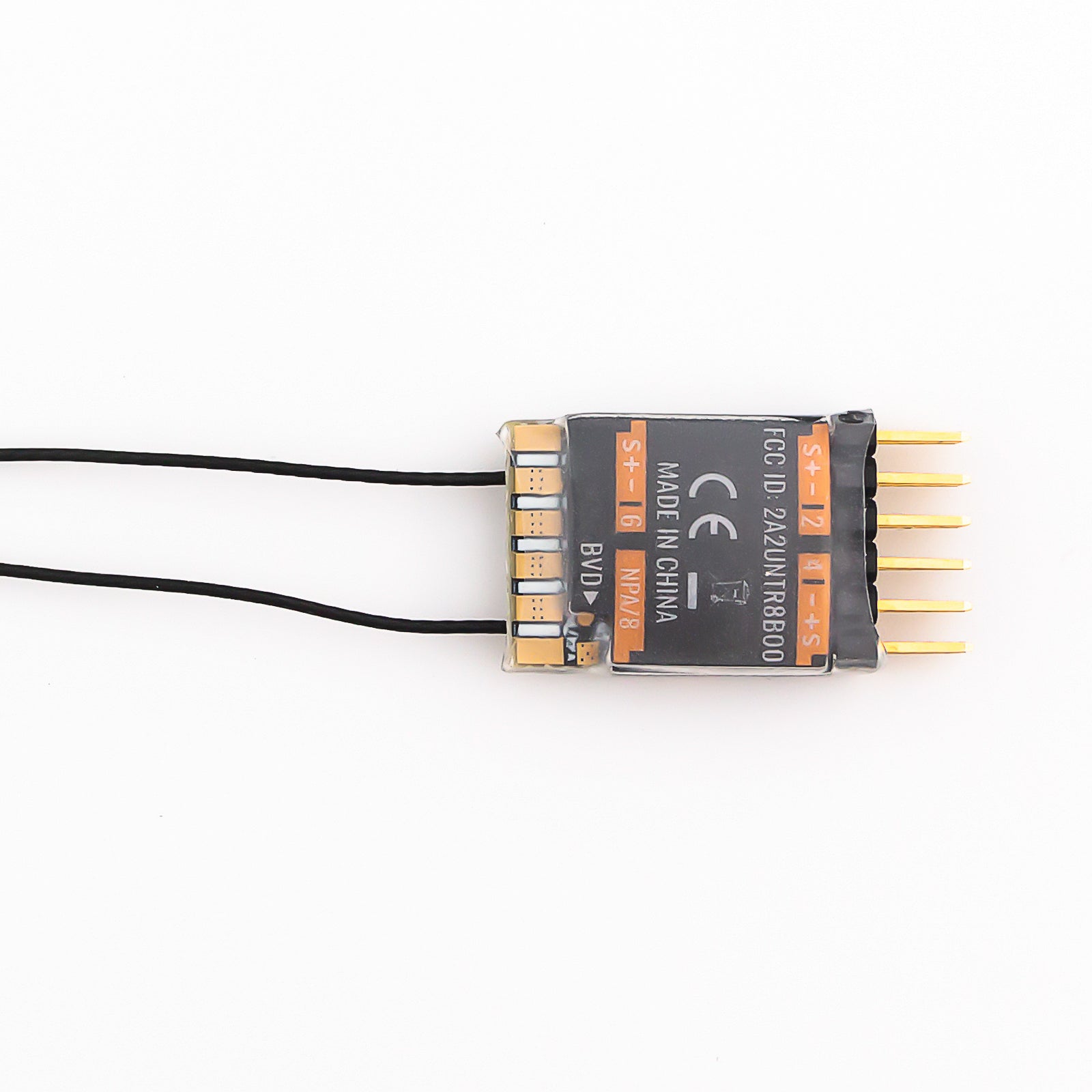

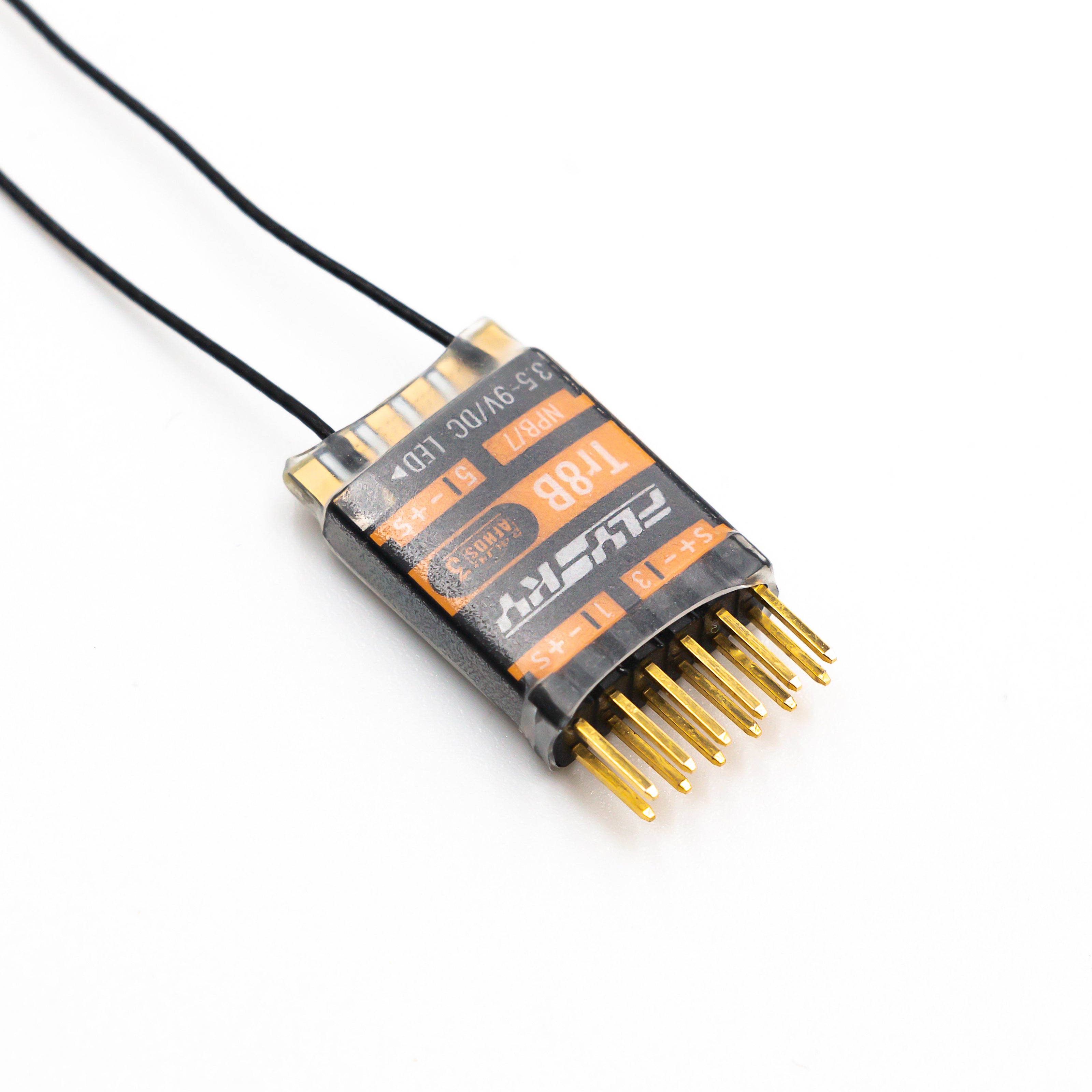

Tr8B is a miniature receiver that adopts AFHDS 3 (third generation automatic frequency hopping digital system) protocol to support 8 PWM channel signal output. It has a button-type dual antenna, supports two-way transmission, can realize backhaul function, supports 4 Newport interfaces, and supports BVD battery voltage detection function.



Basic parameters:

●Product model: Tr8B

●Adapted transmitter: PL18 or NB4 series, AFHDS3 generation high frequency protocol transmitter.

●Applicable models: indoor unit, glider, car, boat, fixed wing or robot.

●Number of PWM channels: 8

●Wireless frequency: 2.4GHZ ISM

●Wireless protocol: AFHDS 3

●Antenna Type: Dual Antenna (ipex4)

●Transmit power: less than 20dBm

●Input power: 3.5~9V/DC

●Working current: < 30mA (5V)

●Data output: PWM/PPM/i-BUS2/i-BUS/S.BUS

●Temperature range: -10°C~+85°°C

●Humidity range: 20%~95%

●Online update: support

●Remote control distance:>1000m (open air distance without interference)

●Dimensions: 19.5*14.6*3mm (excluding pins and antennas)

●Body weight: 0.9g (excluding pins and antennas)

2g (including 4*3 Pin and dual antenna)

●Safety certification: CE, FCC ID: 2A2UNTR8B00
