Flysky NB4+/NB4 Pro+ DragRacing FRM303 range extender Power Amplifier Module Distance Amplifier Module Mount signal enhancer
SoarSky
SKU: SS-202604SID622
Increments of 1
Minimum of 1
Maximum of
Low stock
In stock, ready to ship
Sale price
$55.00
-63%
Regular price
$145.99
Regular price
$55.00
Unit price
per
Tax included.
Shipping calculated at checkout.
Pay Secure
Tech Suppoort
Most orders are shipped within 48 hours
Flysky NB4+/NB4 Pro+ DragRacing FRM303 range extender Power Amplifier Module Distance Amplifier Module Mount signal enhancer
Sale price
$55.00
Regular price
$145.99
Regular price
$55.00
Unit price
per
Frequently Asked Questions
FRM303 Module Mount User Manual
https://soarskyrc.com/blogs/technology-sharing/flysky-nb4-nb4-pro-dragracing-frm303-high-power-module-mount-installation-guide
Does the FRM303 Module Mount support charging?
Yes, it supports charging. It can charge 18650 batteries via the side Type-C interface. Charging takes approximately 4-5 hours, with a charging power of 5V-1.5A.
What does it mean when the red, blue, and green lights on the FRM303 tuner are flashing?
It indicates low battery. Please charge the 18650 battery.
What does it mean when the red light on the FRM303 tuner is flashing?
It's a warning of a signal input error. The FRM303 needs to be set to recognize PPM signals. Setting method: FRM303 supports switching between serial signals, PPM signals and S.BUS signals. The setting steps are as follows: 1. Push upwards the Up key for ≥ 3S and < 9S while powering on the RF module, it enters the input signal setting state. Now LED in blue is on. 2. Push upwards the Up key or push downwards the Down key to switch the input signal. LED flashing states vary with signals as shown in the table below. 3. Press the Center key for 3S to save the settings. Push the Left key to exit the signal setting state. Blue LED Color: One-flash-one-off represents the recognition input signal PPM
What's in the Box
- 1x Cooling fan
- 4x Fan mounting screws
- 2x NB4 Pro+ Base side protective frames
- 1x NB4 Pro+ Base front protective frame
- 1x NB4 Pro+ Base rear protective frame
- 4x NB4 Pro+ protective frame screws — Hex 2.0mm
- 1x NB4 Pro+ Base front protective frame mount
- 4x NB4 Pro+ Base front protective frame mount screws — Hex 1.5mm
- 1x Signal conversion board bracket
- 4x Signal conversion board bracket screws — Hex 2.0mm
- 1x Signal conversion board fixing rod
- 2x 18650 battery
- 1x Signal conversion board
- 1x FRM303 signal cable
- 2x FRM303 mounting screws — Hex 1.0mm
- 1x Type-C cable
Let customers speak for us
Amazing product and excellent shipping by soarsky
Great product...though I have nb4 ...but nb4+ is way better than nb4
Gurpinder Singh
FLYSKY Noble NB4+ Surface Radio with Receiver FGr4B(English Version)
I love my FLYSKY GT5 transmitter and was so distraught when the steering potentiometer started to fail. Luckily a friend mentioned SoarSky and i ordered a replacement and am back to enjoyable RCing
Josh
Flysky FS-GT5 Steering Wheel Replacement Part including Potentiometer
Gits perfect, sooo happy
Bryan
Chrome Purple Carbon Fiber Full Coverage Protective Wrap Skin for Flysky NB4 / NB4+ RC Car Transmitter - Scratch Proof Waterproof No Residue Decal Sticker
Gundam Decals sheet
I was impressed buy the quality of the vynle. With the proper prep. everything was applied as should be. and it turn out as I hoped it would. I plan to perches another one our two soon.
Mike Abrahams
Flysky NB4/NB4+/Noble Pro/Noble Pro+ Sticker radio skins
Throttle Ribbon
Throttle broke in my local Hobbies store had it in stock went to replace it in the ribbon got torn. This place is the only place that services these parts. Great service great price had it within a week super happy save me from buying a $350 remote.
Arthur Cardinali
NB4+ NB4 Plus NB4 Pro+ NB4 Pro Plus Throttle Trigger FPC Ribbon Cable
Worked great abd nade the nb4+ feel great in the hand.
Kris
Controller sweatband wrap(For Flysky, Futaba, Sanwa, Radiolink)
Bling Bling for my Radio
I love my Flysky and this skin have elevated its appearance. I can't tell you how awesome this kit is.
Anthony Escobedo
Soarsky Flysky NB4/NB4+/Pro/Pro+ metal bright orange skin radio sticker
Transmitter bling bling
Good fit good quality different from the other ones I’ve seen at the track
Lee Dotson
Flysky Noble NB4/NB4+/Pro/Pro+ Carbon Fiber Chameleon Sticker Radio Skin wrap
Excellent spare parts
Good spare parts
Riki Hisada
FLYSKY Noble NB4/NB4+/Pro/Pro+ Throttle/Brake Trigger
NB4+ Grip tape
Great grip tape, easy to wrap handle and makes it so much better to hold.
Got black and blue rolls and thinking it was a great purchase.
Kris Taylor
Controller sweatband wrap(For Flysky, Futaba, Sanwa, Radiolink)
With Ezzzzz!!!
Deep contrast beautiful colors. So ezzz to install perfectly!!!!!!
Norman Cooper
Flysky NB4/NB4+/Noble Pro/Noble Pro+ Sticker radio skins
5 stars
5 star
Lewis Schultz
FMS 1300mm PA-18 3536 Motor Shaft For 1400mm Kingfisher, 1300mm PA-18, 1020mm F3A
Excellent product delivered in a timely manner. There was some confusion with tracking once it got to the states but there was no problem with delivery.
Ben
FLYSKY Noble NB4 Pro+ NB4 Pro Plus Surface Radio 18ch(English Version)
It's very very nice.
Not sure what else to say at the moment as I haven't run it yet. It is very well thought out.
Steven Bass
Flysky NB4+/NB4 Pro+ DragRacing FRM303 range extender Power Amplifier Module Distance Amplifier Module Mount signal enhancer
Description
This product's protective frame only includes the Bottom Protector, not the Top Protector.
If you need to purchase the Top Protector or Bottom Protector separately (excluding the Module Mount), you can do so via this link.
Top Protector:
FLYSKY controller radio NB4 Pro/NB4 Pro+ Noble metal protector combo
Module Version: Select the appropriate Bottom Protector based on your transmitter. For NB4+ and NB4 Pro, due to different base battery sizes, you need to select the corresponding Module Version.
FRM303 Version: The FRM303 has two options: Standard version and No FRM303.
The Standard version includes the FRM303 high-frequency module, antenna, etc., as shown in the following image:
The Standard version option is suitable for users who have not previously purchased the FRM303.
Worry-free version
The No FRM303 option is suitable for users who have already purchased the FRM303 but do not have the high-frequency module.
Product Highlights:
1. A great partner for high-speed racing cars, using the FRM303 to support up to 2W transmitter power, eliminating control distance issues. Ground control distance will exceed 1km.
2. Adjustable angle adapter; the high-frequency module can accommodate various angles.

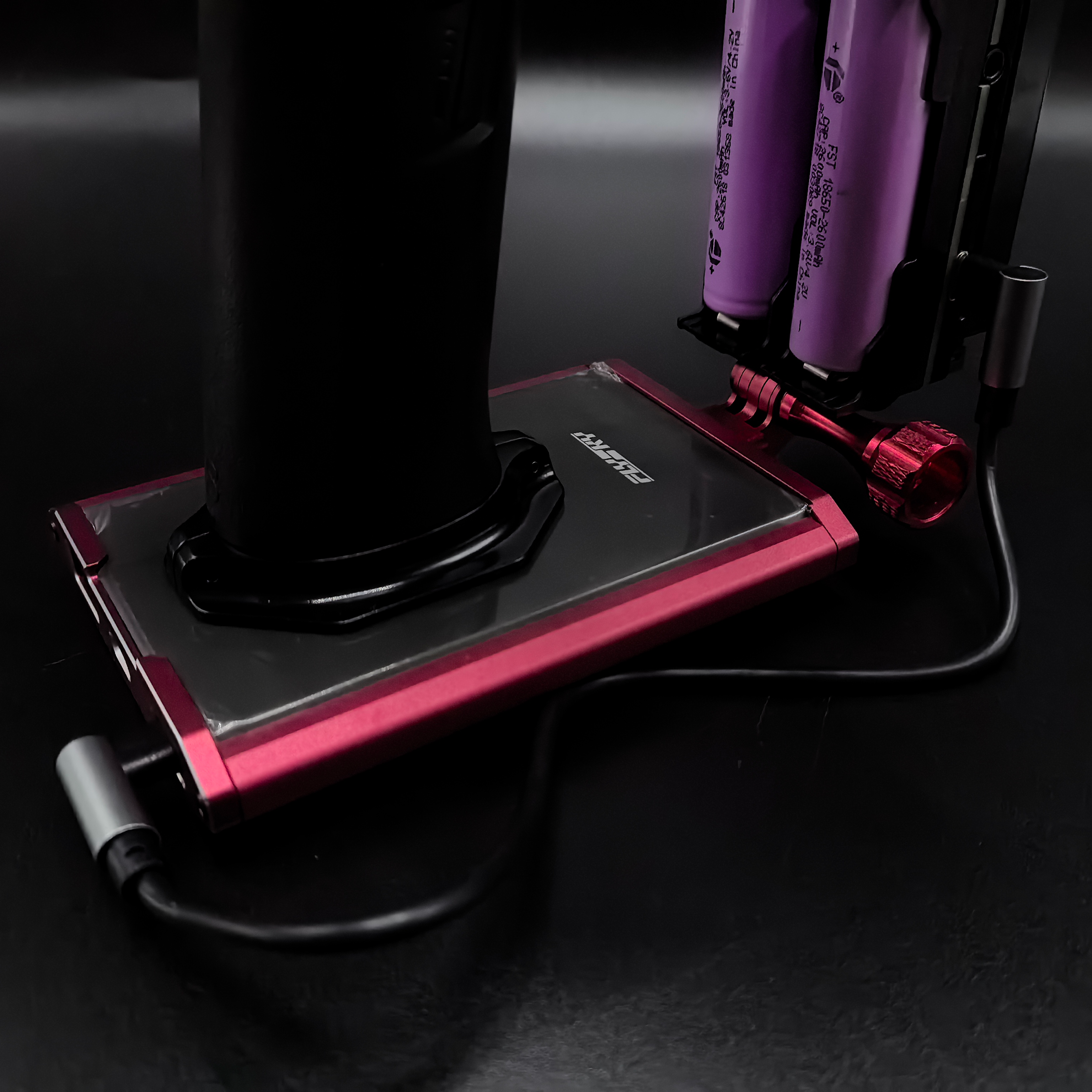

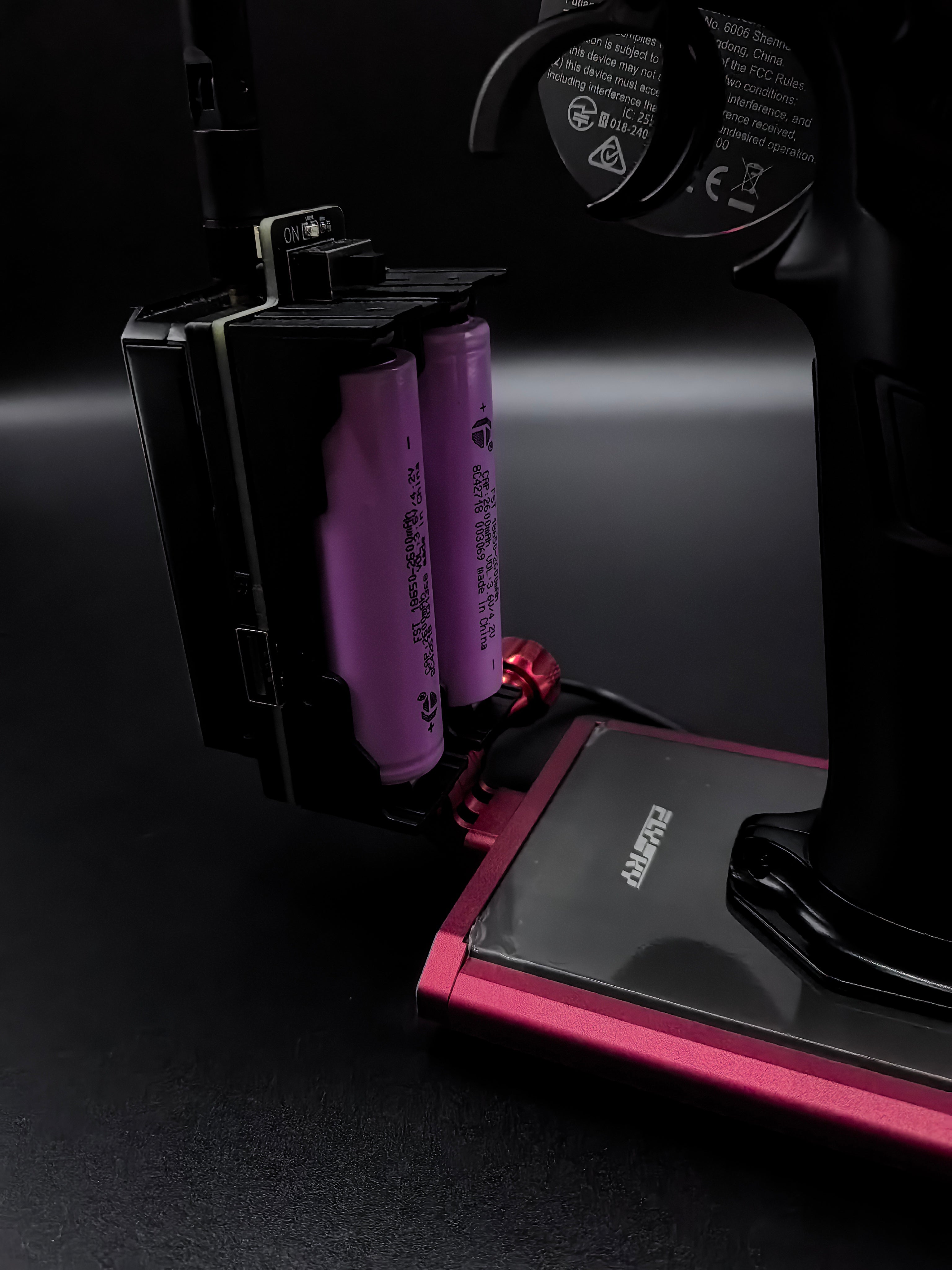

3. The module mount circuit board supports 18650 rechargeable batteries and features a low battery indicator.
4. Compatible with metal base protective frames.
5. The module mount supports Type-C, audio, and USB-A interfaces.
6. Supports FS-G11P/NB4 Pro+/NB4+.
7. The base protective frame supports NB4 Pro+ or NB4+ base batteries.
Its working principle is to configure the Type-C data interface of the NB4+/NB4 Pro+ to output a PPM signal (NB4+/NB4 Pro coaching function), and the FRM303 is configured to recognize the PPM signal.
Parts List
- Cooling fan x 1
- Fan mounting screws x 4
- NB4 Pro+ Base side protective frames x 2
- NB4 Pro+ Base front protective frame x 1
- NB4 Pro+ Base rear protective frame x 1
- NB4 Pro+ protective frame screws x 4 (Hex 2.0mm)
- NB4 Pro+ Base front protective frame mount x 1
- NB4 Pro+ Base front protective frame mount screws x 4 (Hex 1.5mm)
- Signal conversion board bracket x 1
- Signal conversion board bracket screws x 4 (Hex 2.0mm)
- Signal conversion board fixing rod x 1
- 18650 battery x 2
- Signal conversion board x 1
- FRM303 signal cable x 1
- FRM303 mounting screws x 2 (Hex 1.0mm)
- Type-C cable x 1
