FLYSKY Elysium EL18 2.4GHz AFHDS 3 18ch

FLYSKY Elysium EL18 2.4GHz AFHDS 3 18ch

Regular price $299.00USD
Regular price $305.00USD Sale price $299.00USD
Save 1% Sold out
Taxes included.

Shipping to

Estimated delivery on

  • Complete after-sales technical support

98 in stock

Color
Product Tabs
Description
Parameters
Technical support



FLYSKY Elysium EL18 2.4GHz AFHDS 3 18ch Open Source EdgeTX Transmitter w/High-Precision CNC Hall Gimbals & Tmr Micro Receiver

Features:
• Attractive ergonomic design with durable red acrylic textured coating
• Utilizes FLYSKY's upgraded AFHDS 3 high-frequency protocol
• 3.5" IPS color touch screen with adjustable brightness, easy to read in even the most challenging light conditions
• Includes EdgeTX open source system and FLYSKY's core RC technology

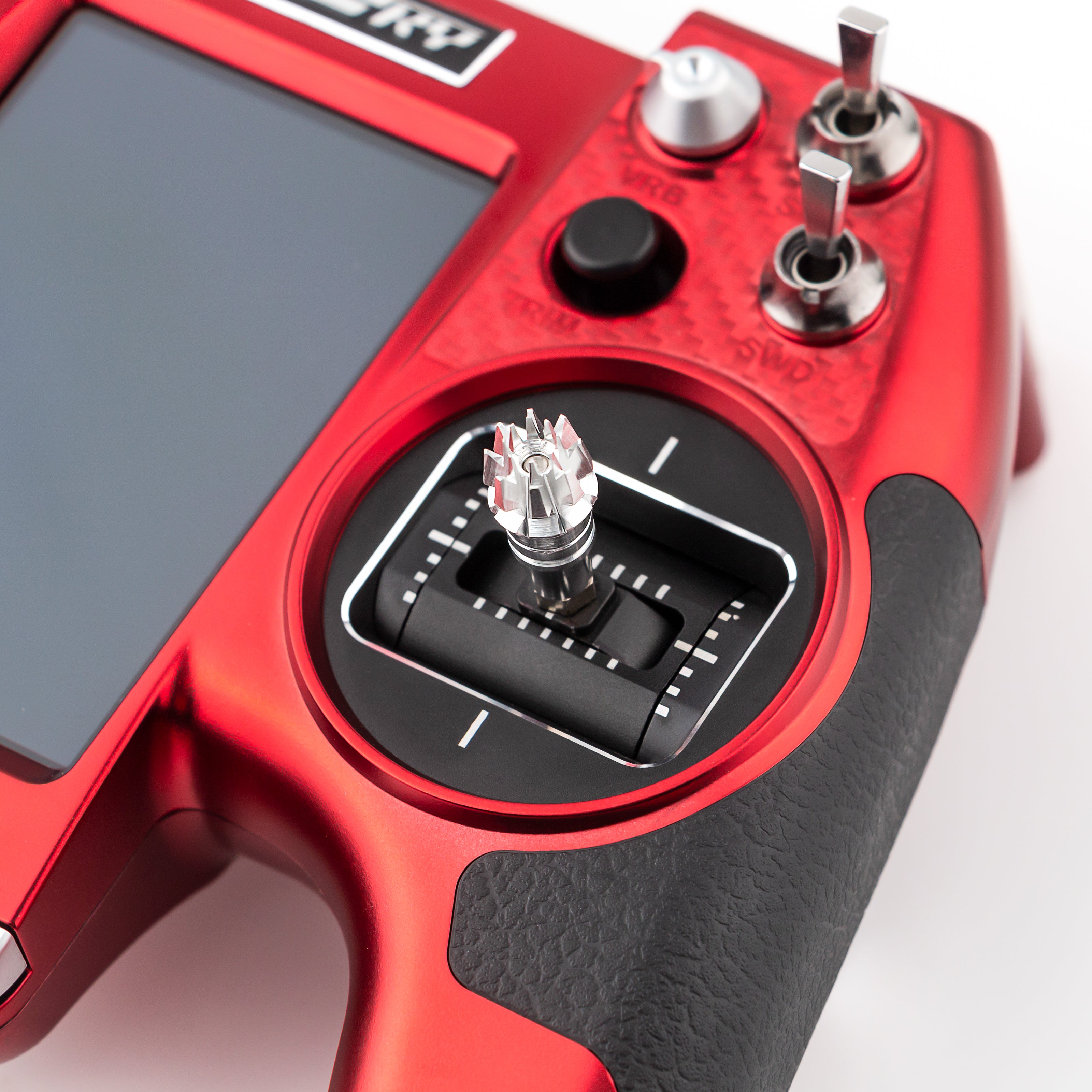

• Accurate, sensitive, high-precision, Hall effect CNC gimbals
• Has the ability to use mainstream RF modules including support for CRSF, and CRSF2 protocols
• Set includes the FLYSKY Tmr 2.4GHz AFHDS 3 micro receiver


Specs:
Model: FLYSKY Elysium EL18 18ch Open Source EdgeTX Transmitter
No of Channels (Internal RF): 18
No of Channels (External RF): 32
FF: 2.4GHz ISM
2.4GHz Protocol: AFHDS 3
Max Power: <20dBm (e.i.r.p.) EU
Antenna: Twin, one built-in, one external rotatable
Input Power: 2 x 18650 Li-Ion wired in parallel (not supplied)
Working Current: 400mA/4.2V
Data Output/Charge Socket: Type-C USB
Resolution: 4096
Display: 3.5" 320x480 resolution IPS color touch-screen
Range: Over 3000 meters is possible depending on the RF module used
Mode: Supplied as mode 2, but this is changeable
Updates: Yes, via online
Temperature Range: -10°C~+60°C
Humidity Range: 20~95%
Dimensions: 205x183.7x82.9
Weight: 726g
Compatible Rx's (Internal RF): FTr10, FTr16, FTr8B, FTr12B or Tmr, etc
Certifications: CE, FCC ID: 2A2UNEL1800, UKCA

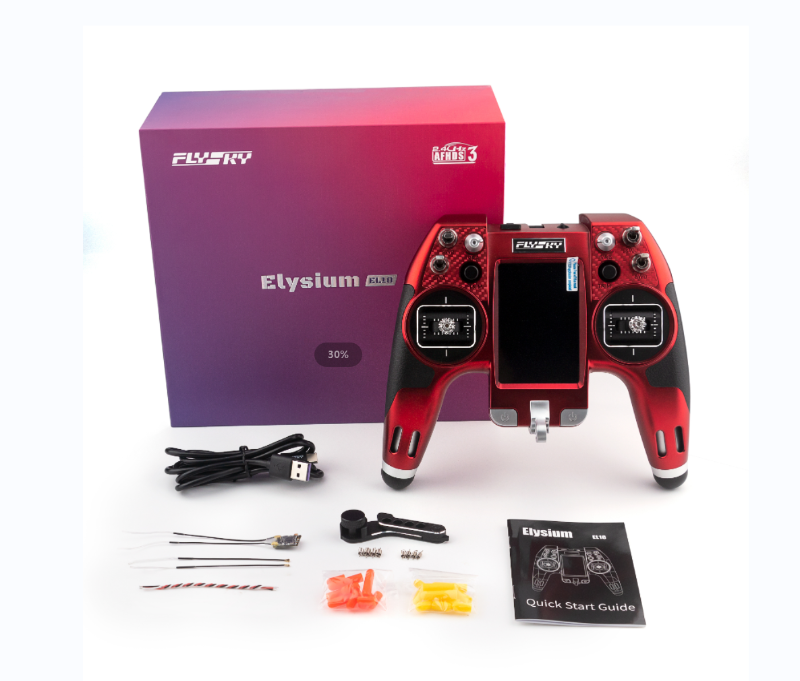

Included:
1 x FLYSKY Elysium EL18 18ch Open Source EdgeTX Transmitter
1 x FLYSKY Tmr 2.4GHz AFHDS 3 micro receiver

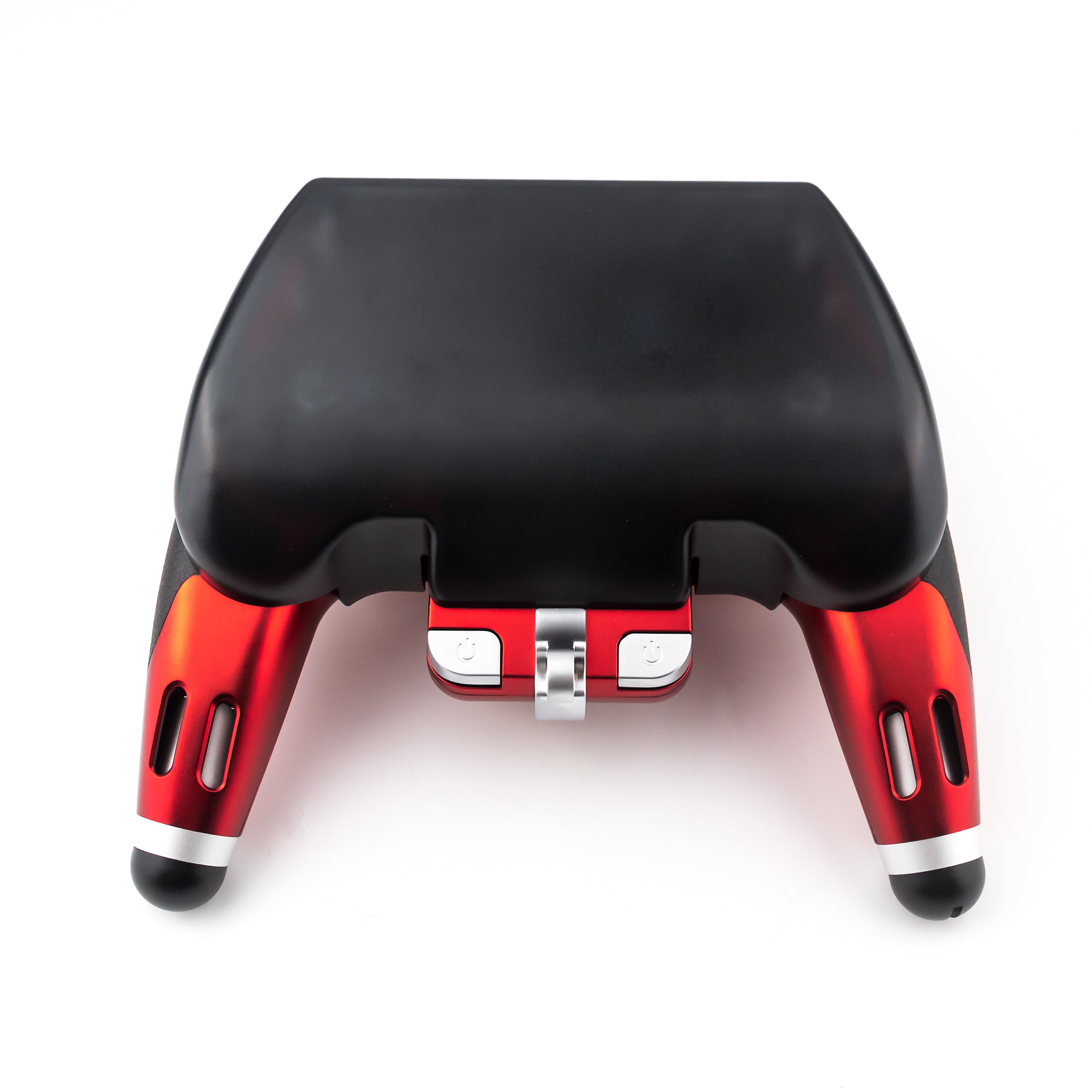

1 x Transportation cover to protect the gimbals
1 x CG neckstrap adapter
1 x Pack of red switch covers
1 x Pack of yellow switch covers
1 x Pack of soft gimbal springs
1 x Pack of hard gimbal springs
1 x USB cable
1 x Quick start guide


Required:
2 x 18650 Li-Ion batteries
