This article will primarily share my unboxing experience with FlySky's new PA01, evaluating it from various perspectives: packaging, specs, feel, hardware, features, price, etc. I give the PA01 a high overall rating. At $199, it offers excellent value and is very competitive, making it truly one of the best FPV Drone Radios.
Complete review of the Flysky ProArt PA01 remote controller: unboxing, hands-on impressions, and EdgeTX setup guide for FPV, drone soccer, and RC crawlers. Hall gimbals, AFHDS 3, available at SoarSky.
Introduction:
Compare the Noble carrying cases currently on the market to help you choose the right carrying case for you.Soarsky's Noble carrying case is lighter and more affordable, while Flysky's original NB4 Pro+ carrying case is more premium and made of better materials.
Sections:

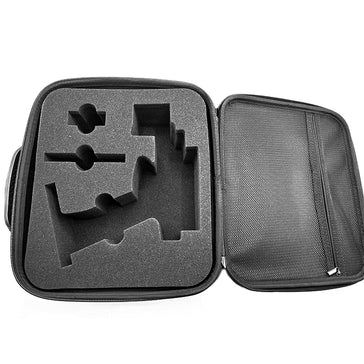

Learn about the Soarsky Noble carrying case
Learn about the Flysky original NB4 Pro+ carrying case
Introduction to other brands
1.Learn about the Soarsky Noble carrying case
(1) Basic Parameters
Size: 27.5*24*11cm
Inner Lining Material: EVA Sponge
Weight: Approximately 800g
Suitable for remote controls: Flysky NB4, NB4+, NB4 Pro, and NB4 Pro+
Colors: Black and gray available
Price: $27.89
(2) Features
Lightweight and easy to carry
Large internal space for storing various parts and accessories
Designed with a handle for storage
Lear More:
Noble radio transmitter carrying case bag
2. Learn about the Flysky NB4 Pro+ carrying case
(1) Basic Parameters
Size: 40*10*19cm
Weight: Approximately 1.5kg
Suitable for remote controls: Flysky NB4 NB4+ NB4 Pro NB4 Pro+
Color: Carbon Fiber
Price: $84.99
(2) Features
FLYSKY original accessory, stronger Noble brand identity
EVA lining, high hardness, stronger protection
Black carbon fiber texture, unique shape
Soarsky RC is proud to introduce the QuicRun Fusion 8IGHT SE – a compact, high-performance, fully integrated ESC and motor system designed specifically for 1/8 and 1/7 scale crawlers. Whether you're climbing rocky trails or navigating technical terrain, the Fusion 8IGHT SE delivers smooth, quiet, and intelligent power right out of the box.
Shop now
✅ Key Features of the QuicRun Fusion 8IGHT SE
Integrated FOC DesignField Oriented Control ensures superior low-speed torque and smoother throttle response than traditional brushed or sensorless brushless systems.
Compact & LightweightMeasuring only 41mm x 69mm and weighing just 326.5g, this system fits neatly into tight chassis layouts without sacrificing performance.
Whisper-Quiet OperationEnjoy near-silent running and buttery-smooth control even at very low speeds – perfect for realistic scale driving.
4S LiPo CapableSupports 2–4S LiPo or 6–12 cell NiMH batteries, with a 60A continuous / 200A peak current rating.
Smart Control FeaturesIncludes closed-loop speed control, active drag brake adjustment, and intelligent torque output for superior handling on any surface.
Programmable via LED/LCD Program BoxEasily customize running modes, BEC voltage, drag brake, thermal protection, and more using Hobbywing’s compatible programming accessories.
Full Protection SuiteBuilt-in safeguards include low-voltage cut-off, overheating protection, signal loss protection, and reverse polarity protection.
📊 Technical Specifications
Model
QuicRun Fusion 8IGHT SE
Continuous / Peak Current
60A / 200A
Suitable Models
1/8 Scale Crawlers, 1/7 Light-Duty Crawlers
Battery Support
2–4S LiPo, 6–12 Cell NiMH
BEC Output
6.0V / 7.4V Selectable, 4A Continuous
Motor KV
1800KV
Motor Size
41mm x 69mm
Shaft Diameter
5mm
Motor Poles
4
Programming Port
Independent 3-pin Port
🧠 Intelligent Performance
The Fusion 8IGHT SE isn’t just powerful – it’s smart. With features like RPM-matched forward/reverse control, auto drag brake adjustment, and closed-loop torque management, it offers a level of control that’s perfect for technical crawling. You get consistent speed under load, excellent hill-holding ability, and smooth slow-speed creep that mimics real off-road vehicles.
🛠️ Easy Installation & Setup
Thanks to its unified design, installation is straightforward. The motor includes both M3 and M4 mounting holes, and the wiring is simplified with just three main connections: battery, receiver, and optional program box.
⚠️ Always confirm screw length during installation to avoid damaging internal components.
📲 Customizable with Program Box
Using Hobbywing’s LED or LCD Program Box, you can fine-tune every aspect of the system:
Running Mode (Forward/Reverse with or Without Brake)
Drag Brake Force & Rate
Max Brake/Reverse Force
BEC Voltage (6V/7.4V)
Low-Voltage Cutoff
Thermal Protection Threshold
Motor Rotation Direction
🌧️ Built Tough. Ready for Anything.
With a rugged, waterproof and dustproof design, the Fusion 8IGHT SE is built to handle wet rocks, mud, and dust without missing a beat.
🧭 Ideal For
1/8 Scale Rock Crawlers
1/7 Scale Light-Load Crawling Rigs
Scale Trail Trucks
Anyone wanting smooth, quiet, tunable performance
🔗 Order Yours Today
Upgrade your crawler with the power, control, and reliability of the QuicRun Fusion 8IGHT SE. Available now at Soarsky RC.
👉 [Shop Now]
The Flysky INr8-8D is a space-saving and best Light Control Built receiver with eight PWM output channels and integrated lighting control. The NB4/NB4+/NB4 Pro/NB4 Pro+ feature built-in lighting control, allowing users to control lighting modes directly from the transmitter, making control more convenient and intelligent.
If you’re deep into the world of RC racing or bashing, you know how crucial real-time data and post-run analysis are for optimizing performance. Flysky has just raised the bar with the FS-iBTA01 Telemetry Adapter—a powerful device designed to bridge compatible external sensors and ESCs with Flysky’s i-BUS2 ecosystem, while also delivering robust black-box capabilities.
Click here to purchase iBTA01 adapter
What Is the FS-iBTA01?
The FS-iBTA01 is a compact, lightweight telemetry adapter that converts supported external device data into the i-BUS2 protocol. This allows real-time telemetry feedback to your Flysky transmitter. But that’s not all: when paired with a microSD card (512MB–8GB), it also functions as a data logger, recording every detail of your run for later analysis.
Key Features at a Glance
Protocol: i-BUS2
Compatible Receivers: All Flysky receivers supporting i-BUS2
Supported Memory Cards: 512MB to 8GB
Operating Voltage: 3.5–9V DC
Dimensions: 28×15×6mm | Weight: 6.8g
Firmware Update Support: Yes, via USB Type-C
Seamless Compatibility with Hobbywing ESCs
One of the most exciting aspects of the FS-iBTA01 is its full compatibility with Hobbywing electronic speed controllers (ESCs) that feature a programming port and real-time data logging.
Supported Hobbywing models include:
XR8 Pro
XR8 Plus
XR10 PRO
MAX10 G2
Platinum V4 (60A, 80A, 120A)
Platinum V5 260A
…and other ESCs with similar data-output capabilities
By connecting the FS-iBTA01 to your Hobbywing ESC’s programming port, you can transmit vital parameters—such as voltage, current, RPM, throttle percentage, power consumption, temperature, and system status—directly to your Flysky radio. This makes it an essential tool for racers and bashers who rely on Hobbywing’s proven performance and want to leverage Flysky’s telemetry ecosystem.
Click here to purchase iBTA01 adapter
Black Box Data Logging Functionality
With a memory card installed, the FS-iBTA01 automatically begins recording the moment your system powers up. It captures:
Channel data (every 20ms)
ESC telemetry values
Timestamps
Connection status
Files are stored in TXT format within the BB-DATA folder. Control data files are prefixed with “BC”, while sensor feedback files use “BD”. Each file includes a session number and sequence identifier, making it easy to review and analyze performance over multiple runs.
How to Set It Up
Mount the Adapter: Use the included 3M tape or a zip tie to secure the unit in your model.
Connect to ESC: Plug Port2 into your Hobbywing ESC’s programming port.
Connect to Receiver: Link Port1 to any Newport port on your i-BUS2-enabled Flysky receiver.
Configure Transmitter: Set the Newport port protocol to i-BUS2 in your transmitter settings.
Insert Memory Card (optional): Slide in a microSD card for data logging—don’t forget to protect it with heat shrink tubing.
Downloading and Analyzing Data
Connect the adapter via USB Type-C to your computer. The device appears as a USB drive. Navigate to BB-DATA to access all recorded files. Use any data analysis software that supports comma-separated values (CSV) to dive into the details of each session.
Firmware Updates and LED Indicators
The FS-iBTA01 supports firmware upgrades via USB Type-C. The LED provides clear status feedback:
Solid: Normal operation
Slow flash: i-BUS2 signal not detected
1-on-1-off-1-on-1-long-off: i-BUS2 detected, but no device connected
1-long-on-1-off: Ready for firmware update
Fast flash: Firmware update in progress
Final Thoughts
The Flysky FS-iBTA01 is a game-changer for RC enthusiasts who use Hobbywing ESCs and Flysky radios. It brings professional-grade telemetry and data logging within reach, helping you fine-tune your vehicle’s performance with precision.
Whether you’re into competitive racing, crawling, or high-speed bashing, this adapter offers the insights you need to push your setup to the limit.
Click here to purchase iBTA01 adapter
Full comparison of Flysky PL18 Ultra vs PL18: EdgeTX support, 500mW RF output, 657LUX screen, adjustable throttle gimbal, and DLG glider mode. Find out if the upgrade is worth it at SoarSky.
Selecting the optimal receiver for your RC aircraft is critical for performance, reliability, and safety. Flysky offers diverse receivers tailored to specific RC applications, but choosing incorrectly can lead to signal loss, compatibility issues, or unnecessary weight. This guide breaks down Flysky’s key models—FTr12B, FTr8B, Tr8B, TMr, INr6-HS, and FTr10—to help you make an informed, professional choice.
Why Your Receiver Choice Matters
A receiver acts as the "nerve center" between your transmitter and aircraft. Key factors to consider:
Aircraft Type: Fixed-wing, drone, or glider?
Size/Weight Constraints: Critical for micro or competition models.
Channel Requirements: More channels = more control surfaces/sensors.
Telemetry Needs: Altitude, speed, or voltage monitoring?
Signal Protocol: Compatibility with your transmitter (e.g., i-BUS, S.BUS).
Flysky Receiver Comparison: Key Specifications
Here’s a high-level overview of Flysky’s top aircraft receivers:
Model
Best For
Weight
Dimensions (L×W×H)
Channels
Voltage Range
Antenna Type
Key Features
FTr12B
Large fixed-wing
15g
39×32×15mm
12
3.5–9.0V
IPEX1 (2.46g copper)
Supports all signals¹, 18ch RF modes
FTr10
Fixed-wing w/ telemetry
22g
52×28×22mm
10
3.5–9.0V
IPEX1
Built-in altimeter, i-BUS2 support
FTr8B
Fixed-wing/boats
11g
46.5×23.8×14.8mm
8
3.5–12V
IPEX1
Wide voltage, classic RF
INr6-HS
Light fixed-wing
3.0g
18×16.8×6.0mm²
6
3.5–12V
IPEX4
Ultra-lightweight, high-speed compatible
Tr8B
Micro DLG/indoor
0.9g
19.5×14.6×3mm
8
3.5–12V
IPEX4
Auto-bind, 0.9g (excl. antennas)
TMr
FPV drones
0.9g
16×12×2mm
1
3.5–12V
IPEX4
Miniaturized for drones, PWM/S.BUS
*Notes:¹ Signals: i-BUS2/i-BUS/S.BUS/PPM/PWM.² Weight excludes pins/antennas.*
Go to buy correct receivers:
Buy FTr12B
Buy FTr8B
Buy Tr8B
Buy TMr
Buy FTr10
How to Match a Receiver to Your Aircraft
1. Fixed-Wing Aircraft (Standard)
FTr10: Ideal if you need telemetry (built-in altimeter) and 10 channels.
FTr12B: Choose for complex planes (12 channels) with multi-sensor support (voltage, temperature, GPS).
FTr8B: Budget-friendly for mid-sized planes. Handles boats too.
2. FPV Drones & Quadcopters
TMr: The go-to for drones. At just 0.9g and 16×12×2mm, it fits micro builds. Supports S.BUS for clean wiring.
3. Gliders, Micro & Indoor Models
Tr8B: Perfect for discus-launch gliders (DLGs) or indoor aerobatics. At 0.9g, it won’t weigh down featherlight builds.
INr6-HS: Suits lightweight fixed-wing. High-speed compatible for responsive control.
4. Sensor & Telemetry Requirements
Altitude/Speed: FTr10 (built-in altimeter) or FTr12B (supports FS-IBA01/FS-CAT01 sensors).
Voltage/Temp: FTr12B (FS-CVT01/FS-IBT01 compatible).
Expansion: FTr12B works with FS-IBH07 hub for extra channels.
Critical Technical Considerations
Voltage Range: Most handle 3.5–12V, but FTr12B/FTr10 max at 9V. Match to your BEC.
Antenna Type:
IPEX1 (FTr12B/FTr10/FTr8B): Durable copper tube antenna (11–12cm). Optimal for larger models.
IPEX4 (Tr8B/TMr/INr6-HS): Smaller, suited for carbon-fiber-friendly micro builds.
RF System:
FTr12B: 3 modes (Routine 18ch/LoRa 12ch/Fast 8ch) for range/speed tradeoffs.
FTr8B: Classic 18ch or C-Fast 10ch for reduced latency.
Pro Tips for Installation
Binding: Most use a bind button; only Tr8B offers auto-bind.
Weight Savings: For micro builds, Tr8B (0.9g) or INr6-HS (3.0g) are unmatched.
Drone Builds: TMr’s 2mm profile minimizes drag in tight frames.
Conclusion: Prioritize Your Aircraft’s Needs
Flysky receivers cover everything from palm-sized drones to competition gliders. Remember:
Complex fixed-wing? → FTr12B or FTr10 (for telemetry).
Racing drone? → TMr.
Weight-sensitive DLG? → Tr8B.
Mid-range plane? → FTr8B or INr6-HS.
Always cross-check your transmitter’s protocol (e.g., i-BUS vs. S.BUS) and voltage requirements. By matching your aircraft’s size, purpose, and telemetry needs to Flysky’s specialized receivers, you’ll ensure rock-solid signal integrity and peak performance.
