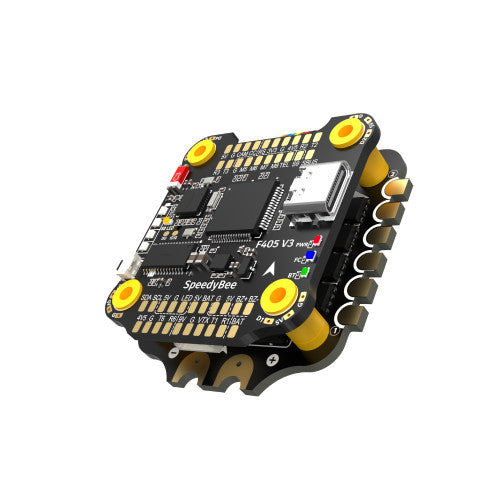

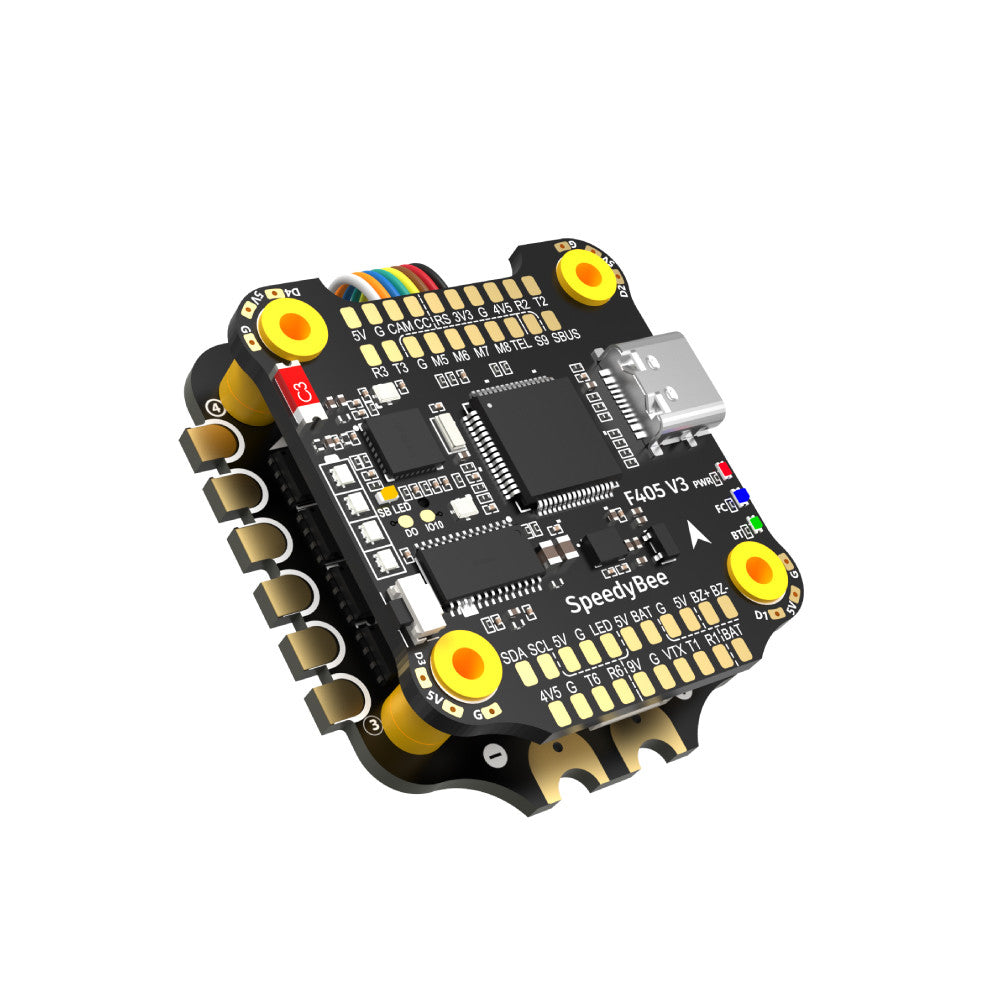

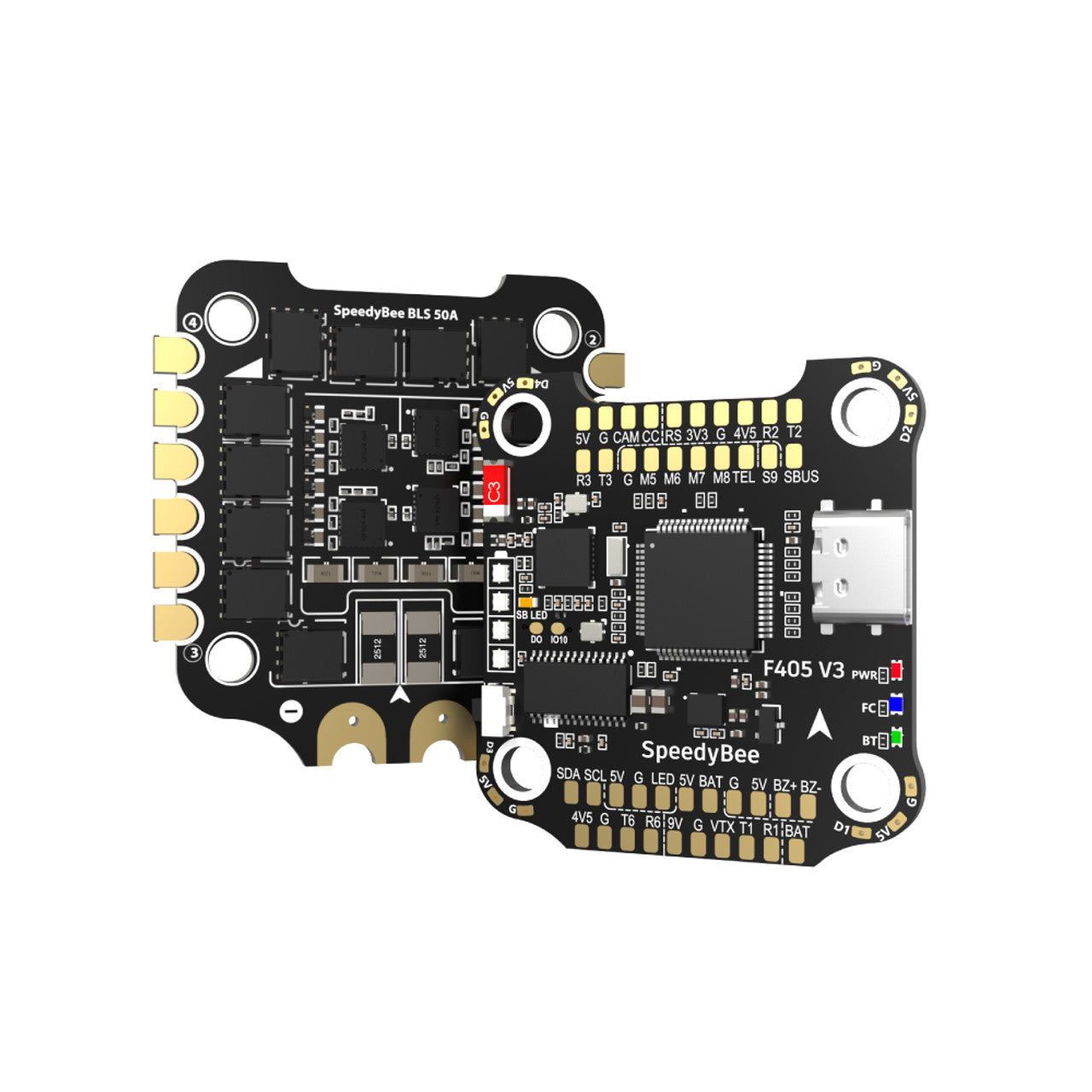

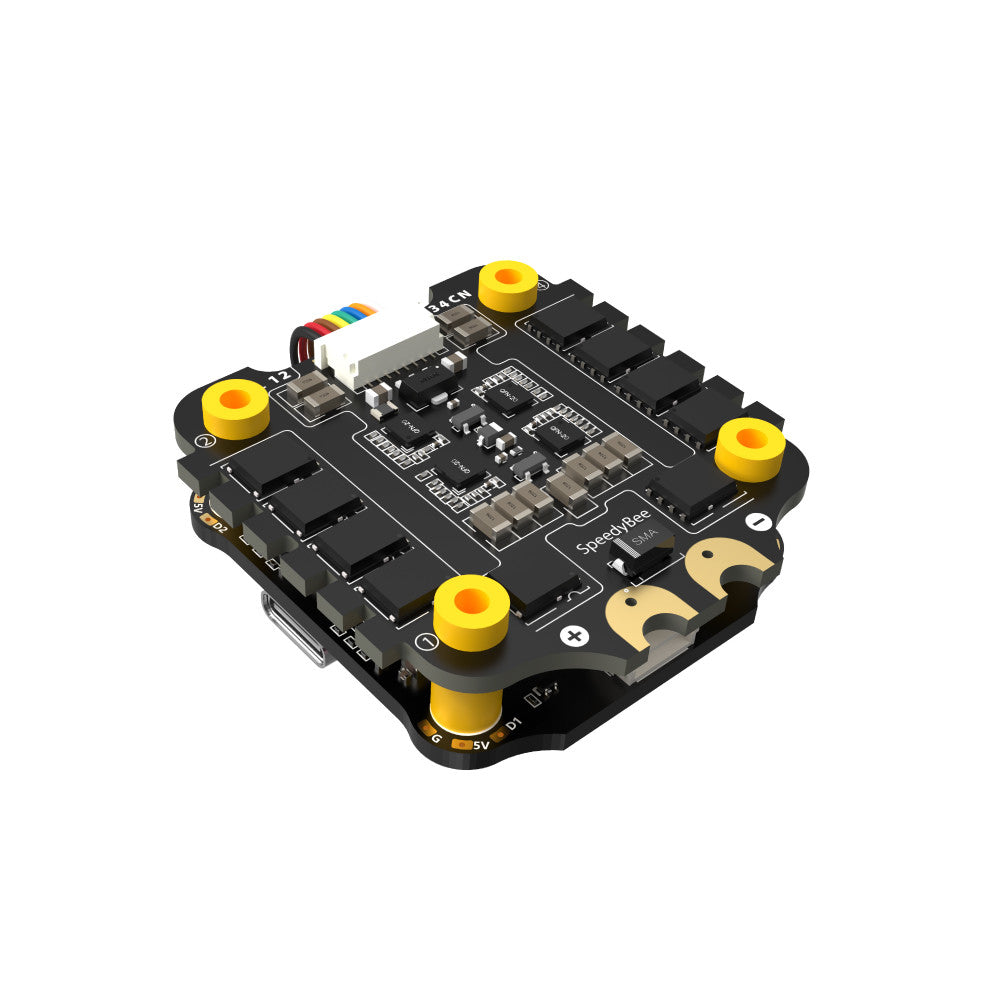

SpeedyBee F405 V3 BLS 50A 30x30 FC&ESC Stack
Incrementos de 1
Mínimo de 1
Máximo de
Low stock
In stock, ready to ship
Prix de vente
$65.99
-6%
Prix normal
$69.99
Prix normal
$65.99
Prix unitaire
par
Taxe inclu.
Expédition calculée à la caisse.
Pay Secure
Tech Suppoort
Most orders are shipped within 48 hours
SpeedyBee F405 V3 BLS 50A 30x30 FC&ESC Stack
Prix de vente
$65.99
Prix normal
$69.99
Prix normal
$65.99
Prix unitaire
par
Let customers speak for us
I love my FLYSKY GT5 transmitter and was so distraught when the steering potentiometer started to fail. Luckily a friend mentioned SoarSky and i ordered a replacement and am back to enjoyable RCing
Josh
Flysky FS-GT5 Steering Wheel Replacement Part including Potentiometer
Gits perfect, sooo happy
Bryan
Chrome Purple Carbon Fiber Full Coverage Protective Wrap Skin for Flysky NB4 / NB4+ RC Car Transmitter - Scratch Proof Waterproof No Residue Decal Sticker
Gundam Decals sheet
I was impressed buy the quality of the vynle. With the proper prep. everything was applied as should be. and it turn out as I hoped it would. I plan to perches another one our two soon.
Mike Abrahams
Flysky NB4/NB4+/Noble Pro/Noble Pro+ Sticker radio skins
Throttle Ribbon
Throttle broke in my local Hobbies store had it in stock went to replace it in the ribbon got torn. This place is the only place that services these parts. Great service great price had it within a week super happy save me from buying a $350 remote.
Arthur Cardinali
NB4+ NB4 Plus NB4 Pro+ NB4 Pro Plus Throttle Trigger FPC Ribbon Cable
Worked great abd nade the nb4+ feel great in the hand.
Kris
Controller sweatband wrap(For Flysky, Futaba, Sanwa, Radiolink)
Bling Bling for my Radio
I love my Flysky and this skin have elevated its appearance. I can't tell you how awesome this kit is.
Anthony Escobedo
Soarsky Flysky NB4/NB4+/Pro/Pro+ metal bright orange skin radio sticker
Transmitter bling bling
Good fit good quality different from the other ones I’ve seen at the track
Lee Dotson
Flysky Noble NB4/NB4+/Pro/Pro+ Carbon Fiber Chameleon Sticker Radio Skin wrap
Excellent spare parts
Good spare parts
Riki Hisada
FLYSKY Noble NB4/NB4+/Pro/Pro+ Throttle/Brake Trigger
NB4+ Grip tape
Great grip tape, easy to wrap handle and makes it so much better to hold.
Got black and blue rolls and thinking it was a great purchase.
Kris Taylor
Controller sweatband wrap(For Flysky, Futaba, Sanwa, Radiolink)
With Ezzzzz!!!
Deep contrast beautiful colors. So ezzz to install perfectly!!!!!!
Norman Cooper
Flysky NB4/NB4+/Noble Pro/Noble Pro+ Sticker radio skins
5 stars
5 star
Lewis Schultz
FMS 1300mm PA-18 3536 Motor Shaft For 1400mm Kingfisher, 1300mm PA-18, 1020mm F3A
Excellent product delivered in a timely manner. There was some confusion with tracking once it got to the states but there was no problem with delivery.
Ben
FLYSKY Noble NB4 Pro+ NB4 Pro Plus Surface Radio 18ch(English Version)
It's very very nice.
Not sure what else to say at the moment as I haven't run it yet. It is very well thought out.
Steven Bass
Flysky NB4+/NB4 Pro+ DragRacing FRM303 range extender Power Amplifier Module Distance Amplifier Module Mount signal enhancer
Description
Specifications
| Product Name | SpeedyBee F405 V3 30x30 Flight Controller |
| MCU | STM32F405 |
| IMU(Gyro) | BMI270 |
| USB Port Type | Type-C |
| Barometer | Built-in |
| OSD Chip | AT7456E chip |
| BLE Bluetooth | Supported. Used for Flight Controller configuration (MSP should be enabled with Baud rate 115200 on UART4) |
| WIFI | Not supported |
| DJI Air Unit Connection Way | Two ways supported: 6-pin connector or direct soldering. |
| 6-pin DJI Air Unit Plug | Supported. Completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed. |
| Blackbox MicroSD Card Slot | *Betaflight firmware requires the type of the microSD card to be either Standard (SDSC) or High capacity (SDHC), so extended capacity cards (SDXC) are not supported(Many high-speed U3 cards are SDXC). Also the card MUST be formatted with the FAT16 or FAT32 (recommended) filesystems. So, you could use any SD card less than 32GB, but the Betaflight can only recognize 4GB maximum. We suggest you use this 3rd party formatting tool and choose 'Overwrite format' then format your card. Also check out here for the recommended SD cards or buy the tested cards from our store. |
| BetaFlight Camera Control Pad | Yes(CC pad on the front side) |
| Current Sensor Input | Supported. For SpeedyBee BLS 50A ESC, please set scale = 386 and Offset = 0. |
| Power Input | 3S - 6S Lipo(Through G, BAT pins/pads from the 8-pin connector or 8-pads on the bottom side) |
| 5V Output | 9 groups of 5V output, four +5V pads and 1 BZ+ pad( used for Buzzer) on front side, and 4x LED 5V pads. The total current load is 2A. |
| 9V Output | 2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 2A. |
| 3.3V Output | Supported. Designed for 3.3V-input receivers. Up to 500mA current load. |
| 4.5V Output | Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load. |
| ESC Signal | M1 - M4 on bottom side and M5-M8 on front side. |
| UART | 6 sets(UART1, UART2, UART3, UART4(Dedicated for Bluetooth connection)), UART5(Dedicated for ESC telemetry),UART6 |
| ESC Telemetry | UART R5(UART5) |
| I2C | Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc. |
| Traditional Betaflight LED Pad | Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware. |
| Buzzer | BZ+ and BZ- pad used for 5V Buzzer |
| BOOT Button | Supported. [A]. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked. [B]. When the FC is powered on and in standby mode, the BOOT button can be used to controller the LED strips connected to LED1-LED4 connectors on the bottom side. By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by Betaflight firmware. |
| RSSI Input | Supported. Named as RS on the front side. |
| Smart Port / F.Port | Not supported |
| Supported Flight Controller Firmware | BetaFlight(Default) |
| Firmware Target Name | SPEEDYBEEF405V3 |
| Mounting | 30.5 x 30.5mm( 4mm hole diameter) |
| Dimension | 41.6(L) x 39.4(W) x 7.8(H)mm |
| Weight | 9.6g |
| Product Name | SpeedyBee BLS 50A 30x30 4-in-1 ESC |
| Firmware | BLHeli_S JH-50 |
| Wireless Configuration | Full Configuration Supported in the SpeedyBee app |
| PC Configurator Download Link | https://esc-configurator.com/ |
| Continuous Current | 50A * 4 |
| Burst Current | 55A(5seconds) |
| TVS Protective diode | Yes |
| External Capacitor | 1000uF Low ESR Capacitor(In the package) |
| ESC Protocol | DSHOT300/600 |
| Power Input | 3-6S LiPo |
| Power Output | VBAT |
| Current Sensor | Support (Scale=386 Offset=0) |
| ESC Telemetry | Not supported |
| Mounting | 30.5 x 30.5mm( 4mm hole diameter) |
| Dimension | 45.6(L) * 44(W) * 6.1mm(H) |
| Weight | 13.8g |
SpeedyBee F405 V3 BLS 50A 30x30 FC&ESC Stack Manual
