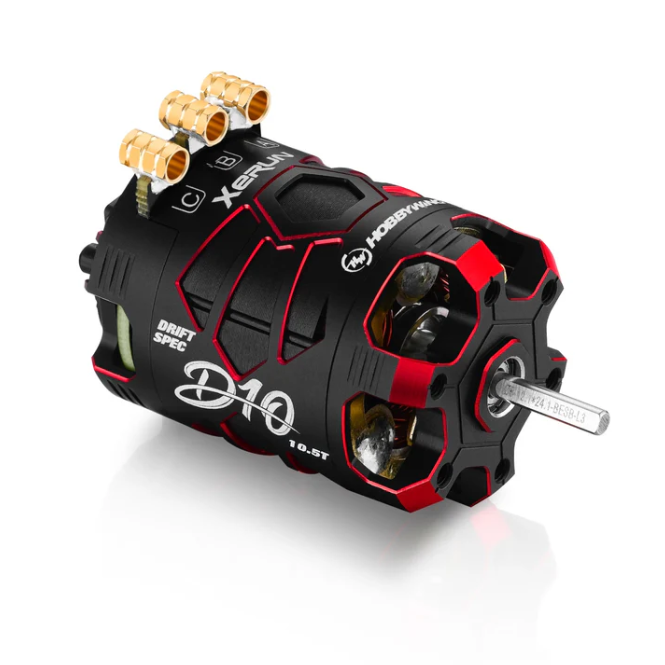

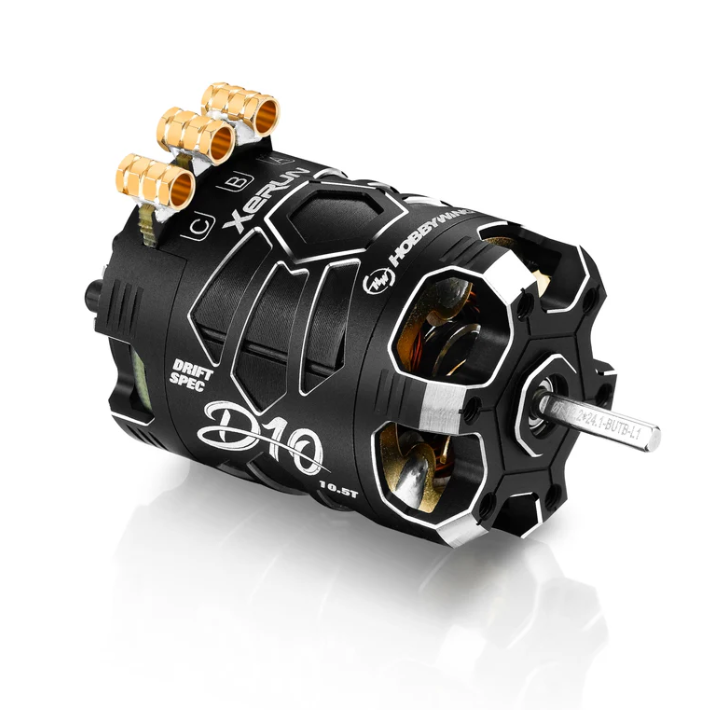

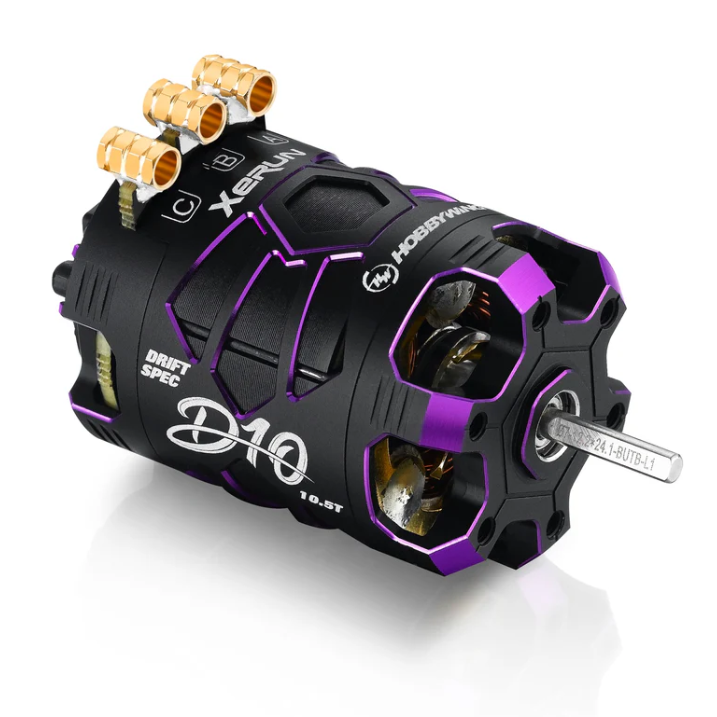

Xerun D10 Drift Motor - 10.5T (4600kv)
Xerun D10 Drift Motor - 10.5T (4600kv)
Thank you for participating in our Black Friday sale! Due to higher than expected order volumes, we may experience some delivery delays. But we promise that your patience will be well rewarded as we work hard to ensure that every order is delivered safely and quickly.
Shipping to
Estimated delivery on
- Complete after-sales technical support
Hot-selling Rroduct Recommendations
50 auf Lager
Verfügbarkeit für Abholungen konnte nicht geladen werden
Bottom line
-
Elegantly designed for drift

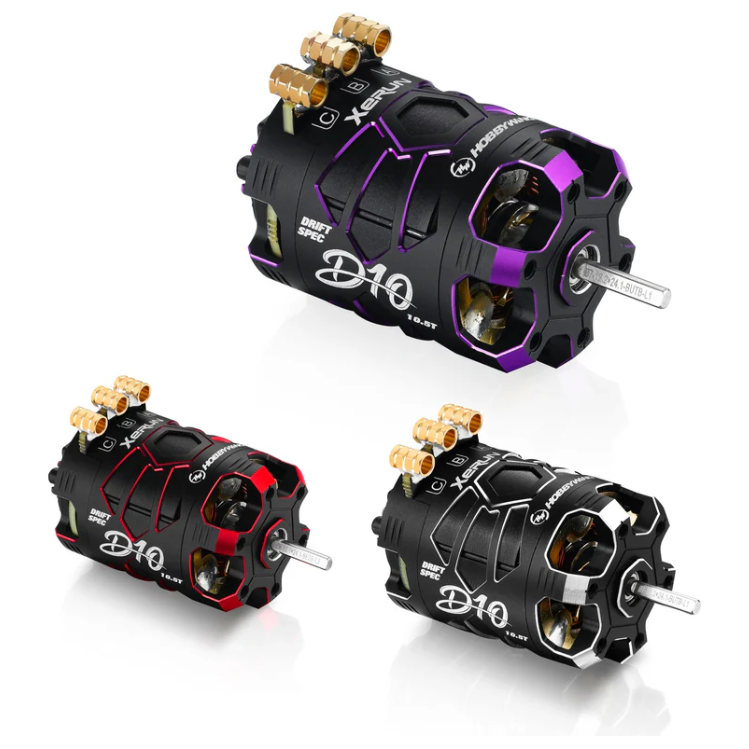

The Xerun D10 motors provide the ideal colors to perfectly match your drift machines. Available in Black, Red, and Purple. -
Banana plug-in quick-swap design
The motor comes factory soldered with high quality 3.5mm banana plug for easy access swap to different motors. 3.5mm male head is also included in the XD10 ESC.
-
New stator designed for drift applications
The new motor stator is optimized for drift and improves motor efficiency in drift applications. Built-in with high-precision sensors board, combined with drift-specific fan rotors, providing excellent motor linearity and drivability while
greatly improves motor efficiency.
-
Lightweight
The 10.5T motor weighs approximately 158g while the 13.5T is at 165g (including 3 gold insert weights). The lightweight motor allows user to easily tweak their weight bias on their car.
-
Equipped with fan rotor,
Providing great heat dissipation, power the special-shaped gold fan on the rotor heats the motor while making a pleasant sound, especially when Turbo is turned on.
-
Best paired with XD10 PRO ESC
Specifications
- 1/10th Drift car, 2S Lipo
- 2 POLE Super High-Efficiency brushless motor
- Diameter/Length (mm): Φ=35.7mm(1.41") L=52.6mm(2.07")
- Shaft Diameter/ Length (mm): Φ=3.175mm(0.125") L=15.0mm(0.591")
| ID | XERUN D10 10.5T Motor | XERUN D10 13.5T Motor |
| KV / Lipo cells | 4600kv / 2-3S | 2900kv /2-3S |
| Type | 1/10th, Brushless Sensored | 1/10th, Brushless Sensored |
| Applications | 1/10th Drift car Sensorless or Sensored brushless Motors |
Same |
| Size O.D mm | 35.7 | 35.7 |
| Length mm |
52.6 | 52.6 |
| Stock Rotor | Φ7-12.2*24.1-BUT*-L1 | Φ5-12.1*24.1-BES*-L3 |
| Weight (g) |
157 |
165 |
| ESC | Best paired with XD10 PRO ESC |
Best paired with XD10 PRO ESC |
10.5T Rotor Schedule:
| p/n | Color | Stock Rotor |
| 30401134 | Stealth |
Φ7-12.2*24.1-BUT*-L1 |
| 30401135 | Passion |
Φ7-12.2*24.1-BUT*-L1 |
| 30401136 | Spirit | Φ7-12.2*24.1-BUT*-L1 |
IMPORTANT NOTES:
-
The D10 motors provide a wide range of adjustable mechanical timings, the following are the methods & principles you can follow when adjusting the timing.
-
You can adjust the motor timing after unfastening the screw on the rear end-plate. Please adjust the timing as needed according to the mark (/white lines) at the rear end of the motor and fasten the screw after the adjustment. For obtaining optimal performance, you can change the output range and characteristics of your power system by adjusting the motor timing.
-
Increasing the timing can increase the motor speed (/RPM), while that also increases the motor temperature and reduces the efficiency. A high(er) timing usually requires a high(er) ratio.
-
Please ensure your ESC is properly programmed before setting the motor timing. For detailed information about ESC programming, please refer to the user manual of the ESC.
-
After the timing adjustment, please ensure that your motor will not get overheat after running a whole pack (i.e. LiPo). You can get the information about the motor temperature via a infra-red temperature gun. If the temperature is too high, please let the motor cool down first and then test again. If the temperature is still too high, then please reduce the timing or increase the FDR (that is to replace the pinion gear with fewer teeth or spur gear with more teeth.).
DOWNLOAD:
