Flysky Paladin PL18 Ultra Deep Dive: The New Standard for High-End RC Transmitters

Last Updated: July 2026 | Reading Time: 15 minutes | Difficulty: Intermediate | Author: Dannyi Chen

Dannyi Chen — RC Aircraft Specialist & Technical Writer at SoarSky. Over 12 years of RC flying experience, specializing in transmitter systems, fixed-wing setups, and DLG gliders.

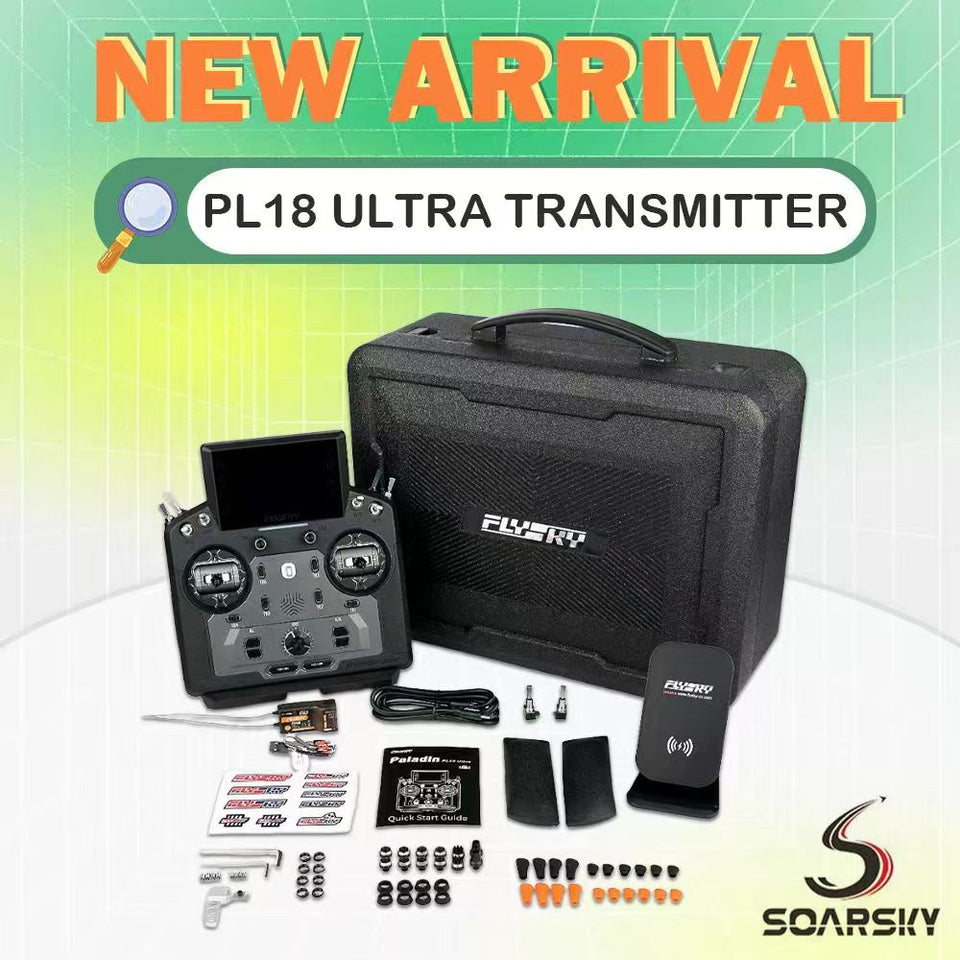

I. What's in the Box? Unboxing the PL18 Ultra

The PL18 Ultra ships in a premium EPP hard-shell case that protects the transmitter and all accessories during transport. The foam cutouts hold each item securely, preventing movement that could damage the gimbals or screen. (Source: SoarSky Product Page)

PL18 Ultra ships in a premium EPP hard case with all accessories — available at SoarSky

PL18 Ultra EPP case interior with foam cutouts for transmitter

Internal foam cutouts hold each item securely — available at SoarSky

Rich accessories include FTr8B receiver, cables, charger, and tools — available at SoarSky

What's Included

II. How Does the PL18 Ultra Feel in the Hand?

The PL18 Ultra weighs 1005g with dimensions of 212.5 x 86.7 x 191 mm — heavier than the original PL18 (946g) but the added mass comes from the larger battery and enhanced screen assembly. The weight distribution is well-balanced, and the contoured grips with sloped shoulder design provide a stable one-handed hold during extended flying sessions. (Source: Flysky Official Specifications)

PL18 Ultra features a 3.5" IPS touchscreen and metal front panel — available at SoarSky

The 4-position adjustable handle accommodates different hand sizes — available at SoarSky

Handle supports 4 gear switching for storage and comfort — available at SoarSky

Ergonomic switch placement with curved edges for finger comfort — available at SoarSky

Larger spacing between switches prevents accidental activation — available at SoarSky

Rubber protrusion on the back supports the palm during long sessions — available at SoarSky

Ergonomic Highlights

Optimized VRC knob and ergonomic switch layout — available at SoarSky

• 4-position handle adjustment: Foldable multi-angle handle accommodates different hand sizes and storage preferences
• VRC knob redesign: The virtual rotational control knob is optimized for one-finger operation with fine-tuned height and contact surface
• Tactile switch differentiation: KR and KL buttons have distinct tactile profiles — you can identify them by feel alone without looking
• Rear scroll wheel press: The back wheel provides clear press feedback for menu navigation
• Switch silicone sleeves: Included rubber grips add steadiness and reduce finger fatigue
• Center-of-gravity adjustment: The balance buckle allows fine-tuning for different holding postures

Rear scroll wheel with clear press feedback for menu navigation — available at SoarSky

Balance buckle allows fine-tuning center of gravity for different postures — available at SoarSky

Optional Accessories for Comfort

Flysky offers two optional comfort upgrades (not included in the box):

• Adjustable wrist rest: Reduces hand and wrist fatigue during long flying sessions with height-adjustable support
• Shoulder bracket: Distributes weight across the body for maximum comfort

Optional wrist rest and shoulder bracket for extended flying sessions — available at SoarSky

PL18 Ultra Tray Wrist-rests & strap mount

III. How Good Is the 3.5" 657-LUX Outdoor Screen?

The PL18 Ultra upgrades from the PL18's standard 3.5" screen to a high-brightness outdoor IPS touchscreen at 657 LUX — more than 3x brighter than the PL18's 195 LUX. The 320 x 480 resolution delivers crisp text and vivid colors, while the built-in ambient light sensor automatically adjusts brightness for indoor and outdoor conditions. (Source: PL18 Ultra Product Specifications)

657-LUX screen remains readable even in direct sunlight — available at SoarSky

Screen Specifications

IV. What Makes the Hall Gimbals Special?

The PL18 Ultra features digital Hall-effect gimbals with an adjustable mechanical stroke range of 38° to 54°. The Hall sensors deliver 4096-grade resolution with linearity error below 0.15% and 1μs stability, rated for over 100,000 operating cycles. The adjustable vertical travel on the throttle stick lets FPV drone pilots set shorter throws for snappier response, while glider pilots can maximize travel for ultra-fine control. (Source: Flysky Official Specifications)

Hall Gimbal Technical Specifications

V. FlyskyOS + EdgeTX: What Does Dual System Support Mean?

The PL18 Ultra is the first Flysky transmitter to support both FlyskyOS and EdgeTX — the popular open-source RC firmware. EdgeTX brings powerful features like Lua scripting, Companion PC software for model editing, custom voice packs, and an active community of developers continuously improving the system. (Source: SoarSky PL18 Ultra vs PL18 Comparison)

EdgeTX brings powerful open-source customization to the PL18 Ultra — available at SoarSky

FlyskyOS offers a gentle learning curve for beginners — available at SoarSky

FlyskyOS vs EdgeTX: Which Should You Use?

VI. AFHDS3 Protocol: 18 Channels & 4096 Resolution

The PL18 Ultra operates on Flysky's AFHDS3 (Advanced Frequency Hopping Digital System 3) protocol, providing 18 channels of communication across 171 frequency bands in the 2.4GHz range (2402.15–2479.85 MHz). The 4096-grade channel resolution delivers ultra-smooth servo movement with 2048-step precision — critical for competition-grade fixed-wing and helicopter setups. (Source: Flysky Official Specifications)

RF Performance Specifications

Compatible Receivers

The PL18 Ultra works with all AFHDS3 receivers. For aircraft models, popular choices include the FTr12B (12CH), FTr8B (8CH, included), FTr10 (10CH), FTr16S (16CH), and INr6-HS (6CH with high-speed response). For cars, the FGr8B, FGr4B, and FGr12B are compatible. The FBr12 serves boat models.

VII. Fixed-Wing Flight Functions: Mixing & Programming

The PL18 Ultra offers comprehensive fixed-wing programming capabilities including flaperon mixing, elevator-to-flap mixing, aileron-to-rudder mixing, dual-rate/expo settings, and logic switches for complex control combinations. These functions allow pilots to program sophisticated flight behaviors for scale warbirds, 3D aerobatic planes, and turbine-powered jets directly on the transmitter. (Source: PL18 Ultra User Manual)

Comprehensive mixing functions for flaperon, crow, and camber control — available at SoarSky

Logic switches enable complex conditional programming — available at SoarSky

Key Fixed-Wing Functions

• Flaperon Mixing: Combines aileron and flap control on the same surfaces for enhanced roll authority and slower landing speeds
• Crow (Butterfly) Mixing: Deploys flaps up and ailerons down simultaneously for steep controlled descents — essential for glider landings
• Camber Mixing: Adjusts wing camber in flight for different speed regimes — reflex for speed, camber for thermalling
• Elevator-to-Flap Mixing: Automatically adds flap deflection with elevator input for tighter turn radii
• Aileron-to-Rudder Mixing: Coordinates rudder with aileron input for balanced turns without pilot input
• Logic Switches: Combines multiple physical switches into logical conditions — e.g., "IF switch A AND throttle < 20% THEN activate landing mode"
• Flight Phases: Up to 9 flight phases per model with independent trims, dual rates, and mixing for launch, cruise, thermal, speed run, and landing
• Dual Rate / Expo: Adjustable per-axis sensitivity curves for precision at center stick and maximum throw at full deflection

VIII. DLG Glider Mode: Crow, Flaperons & Launch Control

The PL18 Ultra introduces dedicated DLG (Discus Launch Glider) support — a firmware-level flight mode designed specifically for hand-launched glider competition and sport flying. The DLG mode includes crow (butterfly) mixing for controlled descents, flaperon and camber mixing for thermal efficiency, dedicated launch mode with preset elevator trim, and flight phase timers for tracking launch height, thermal duration, and landing approach. (Source: SoarSky PL18 Ultra vs PL18 Comparison)

DLG Flight Phases

Crow (Butterfly) Mixing Explained

Crow mixing is the signature glider function for controlled descents. When activated, the system simultaneously:

1. Raises flaps upward (typically 40-60°) to disrupt lift and increase drag
2. Lowers ailerons downward (typically 20-30°) to maintain roll authority
3. Mixes elevator compensation to prevent pitch-down from the asymmetric surface deflection

The result is a steep, controlled descent at constant airspeed — essential for landing in tight fields or making the spot in TD (Touch and Distance) competitions.

DLG-Specific Hardware Accessories

SoarSky offers two purpose-built hardware upgrades that enhance the DLG flying experience:

IX. Battery & Charging: How Long Does It Last?

The PL18 Ultra upgrades from the PL18's built-in battery to a removable 8700mAh high-capacity battery (1S 3.6V Li-ion). Under normal power with default settings, the transmitter delivers over 16 hours of continuous operation — enough for a full weekend of flying without recharging. The quick-release design enables hot-swapping for all-day field sessions. (Source: Flysky Official Specifications)

USB Type-C port supports 18W wired fast charging — available at SoarSky

Power Specifications

X. Dual Redundancy & Safety Features

The PL18 Ultra implements a comprehensive dual-redundancy safety system across three layers: dual-frequency transmission, dual-receiver binding, and dual-signal pathways. These features make the PL18 Ultra suitable for high-value models where signal loss is not an option — including large-scale turbine jets, expensive camera drones, and competition gliders. (Source: Flysky Official Specifications)

Dual RF slots enable frequency and receiver redundancy — available at SoarSky

Three-Layer Redundancy

• Dual-Frequency Redundancy: Simultaneous transmission on internal and external RF modules using different frequency bands. If one band experiences interference, the other maintains the link.
• Dual-Receiver Redundancy: Bind two receivers to the same transmitter. Each receiver drives independent servos — if one receiver fails, the second continues controlling the model.
• Signal Redundancy: The external RF unit supports dual transmit/receive pathways, providing backup signal paths through the antenna system.

Additional Safety Features

• Range Check Mode: Reduced power mode for pre-flight range verification
• Model Match: Prevents flying with the wrong model memory selected
• Throttle Cut: Dedicated safety switch to instantly kill throttle output
• Low Voltage Alarm: Audio and visual alerts when battery drops below threshold
• Trainer/Student Mode: Audio port + Bluetooth wireless for instructor override

XI. Customer Reviews

Here is what SoarSky customers say about the Flysky Paladin PL18 Ultra:

Real-world flight tests confirm precise servo control and stable telemetry — available at SoarSky

500mW RF power delivers reliable control at extended ranges — available at SoarSky

XII. Frequently Asked Questions

Q: What is the main difference between PL18 and PL18 Ultra?

The PL18 Ultra adds four headline features over the original PL18: (1) EdgeTX open-source system support, (2) 500mW internal RF power (vs 100mW), (3) 657-LUX outdoor-rated screen (vs 195 LUX), and (4) adjustable throttle travel. The Ultra also introduces dedicated DLG glider mode, removable 8700mAh battery, and microSD expansion — none of which are available on the PL18.

Q: Is the PL18 Ultra suitable for beginners?

Yes, when running FlyskyOS. The interface is intuitive and the setup wizard guides you through model configuration. However, EdgeTX has a steeper learning curve and is better suited for intermediate to advanced users. Beginners can start with FlyskyOS and switch to EdgeTX later as skills develop.

Q: Do I need the DLG accessories for glider flying?

The DLG flight mode works with the stock hardware, but the accessories significantly improve the experience. The dual self-centering back wheel knobs give independent camber/reflex control with your index fingers. The F&H switch set adds momentary launch mode activation. Both are highly recommended for serious glider pilots.

Q: What receivers are compatible with the PL18 Ultra?

The PL18 Ultra works with all AFHDS3 protocol receivers. For aircraft: FTr12B, FTr8B (included), FTr10, FTr16S, FTr4, INr6-HS, TMr. For cars: FGr8B, FGr4B, FGr12B, FGr4P, FGr4S, FGr4, GMr. For boats: FBr12. Ensure your receiver is updated to the latest firmware for best compatibility.

Q: How does the dual-redundancy system work?

The PL18 Ultra supports three redundancy layers: (1) Dual-frequency — transmits on two frequency bands simultaneously; (2) Dual-receiver — binds two receivers to the same model, each driving independent servos; (3) Signal redundancy — dual antenna pathways via the external RF module. Not all layers need to be used simultaneously — configure based on your model's value and flying conditions.

Q: Can I use the PL18 Ultra for FPV drones?

Yes. The adjustable throttle travel (shorter throws) is ideal for FPV drone pilots who want snappy throttle response. The 500mW RF power provides excellent range for long-range FPV. Pair with the FGr4B or FGr4P car receiver for quad builds. Note that AFHDS3 receivers do not support SBUS — use PWM or PPM output.

Q: What is the actual range of the PL18 Ultra?

Flysky specifies up to 3km line-of-sight range under ideal conditions. In practice, range depends on terrain, interference, receiver type, and antenna orientation. The 500mW internal RF power typically provides 1.5–2.5km of reliable range for aircraft applications. The external RF module adapter (FGPZ01/02) can be used for even longer range with high-gain antennas.
