HOBBYWING XeRun AXE 5iVE R3 220A Crawler ESC
HOBBYWING
SKU: 30114000
Incrementos de 1
Mínimo de 1
Máximo de
Low stock
In stock, ready to ship
Precio de venta
$145.49
-41%
Precio normal
$242.50
Precio normal
$145.49
Precio unitario
por
Impuesto incluido.
Envío calculado al finalizar la compra.
Pay Secure
Tech Suppoort
Most orders are shipped within 48 hours
Shipping calculated at checkout. Shipping policy
HOBBYWING XeRun AXE 5iVE R3 220A Crawler ESC
Precio de venta
$145.49
Precio normal
$242.50
Precio normal
$145.49
Precio unitario
por
Frequently Asked Questions
Which motors are compatible with this ESC?
The AXE 5iVE R3 ESC supports only HOBBYWING XeRun AXE 4987 R3S and AXE 4274 R3 series motors. Do not assume other AXE motors are compatible simply because they share the AXE name.
What batteries does the AXE 5iVE R3 support?
This ESC supports 3–8S LiPo batteries and is rated for 220A continuous current and 900A peak current. Verify battery polarity, connector compatibility, and the requirements of your selected motor before connecting power.
Can I adjust the BEC voltage for my receiver and servos?
Yes. The BEC output is adjustable from 6V to 14V and provides 15A continuous output. Set the voltage within the operating limits of every connected receiver and servo. Follow the manual when using an external receiver power supply to avoid feeding a second supply into the BEC circuit.
How do I program the ESC?
Use the HW LINK app on an iOS or Android smartphone to adjust parameters, read ESC data, and update firmware through Bluetooth. Follow the official user manual for throttle calibration, motor rotation, and optional AUX channel setup.
Does this listing include a motor, and will the ESC fit my crawler?
This listing is for the ESC only; a motor is not included. It is designed for 1/5 and 1/6 scale crawlers using a compatible AXE motor. The ESC measures 70.2 × 56.3 × 45.5mm, including the capacitor. Check chassis clearance, mounting space, and wiring access before ordering.
What's in the Box
- 1x HOBBYWING XeRun AXE 5iVE R3 220A Crawler ESC — ESC only. Motor not included.
Let customers speak for us
As always, a great buying experience.
As always, a great buying experience.
Thanks.
Yaron.B
Great frame
Great frame for the money, pretty fast shipping considering it came from over seas
OverFlowFpv
This is a must have.
Awesome, hands ands down. Easy set up and feels very sturdy.
Kyle Reed
Easy Install
Plug and play installation, just ensure that the models are backed up, import it back and bind your receivers and your good to go, nice upgrade for the original nb4.
Jerrywin Waga
Easy to fit and works!
Mark
Esta bien pero prefiero speedy
Esta bien pero prefiero speedy bee
Yunior
ST8 FLYSKY
Parfait produit conforme et livraison rapide
Frédéric Mistral
This protection frame fit well. Looks great. Thanks
David
Esta bien pero prefiero speed bee
Esta bien pero si puedes compra speedy bee
Yunior
Radio clamp
This brace for my transmitter works awesome
Ray Petrocelli
Receivers
Iam happy with the purchase everything works good
Anthony
The fit and finish is so nice. It is awesome to finally have the protection on the bottom battery as well.
Thomas
Steering wheel fpc
Thanks soarsky for the bonus, i only order 1pcs but i get 2 pcs so happy 😊😊..
Momo Momo
Nice product
Nice product
Carlos Garcia
It arrived in a timely manner
Joshua
Description

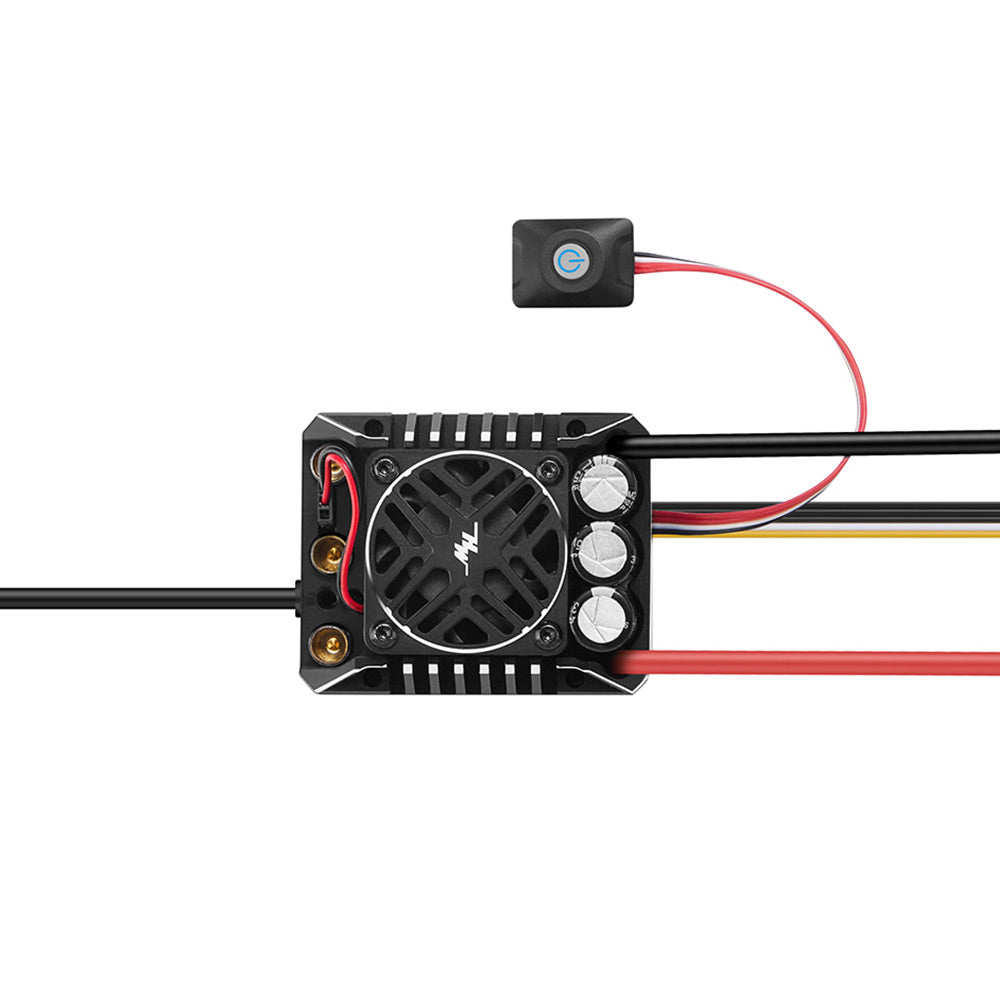

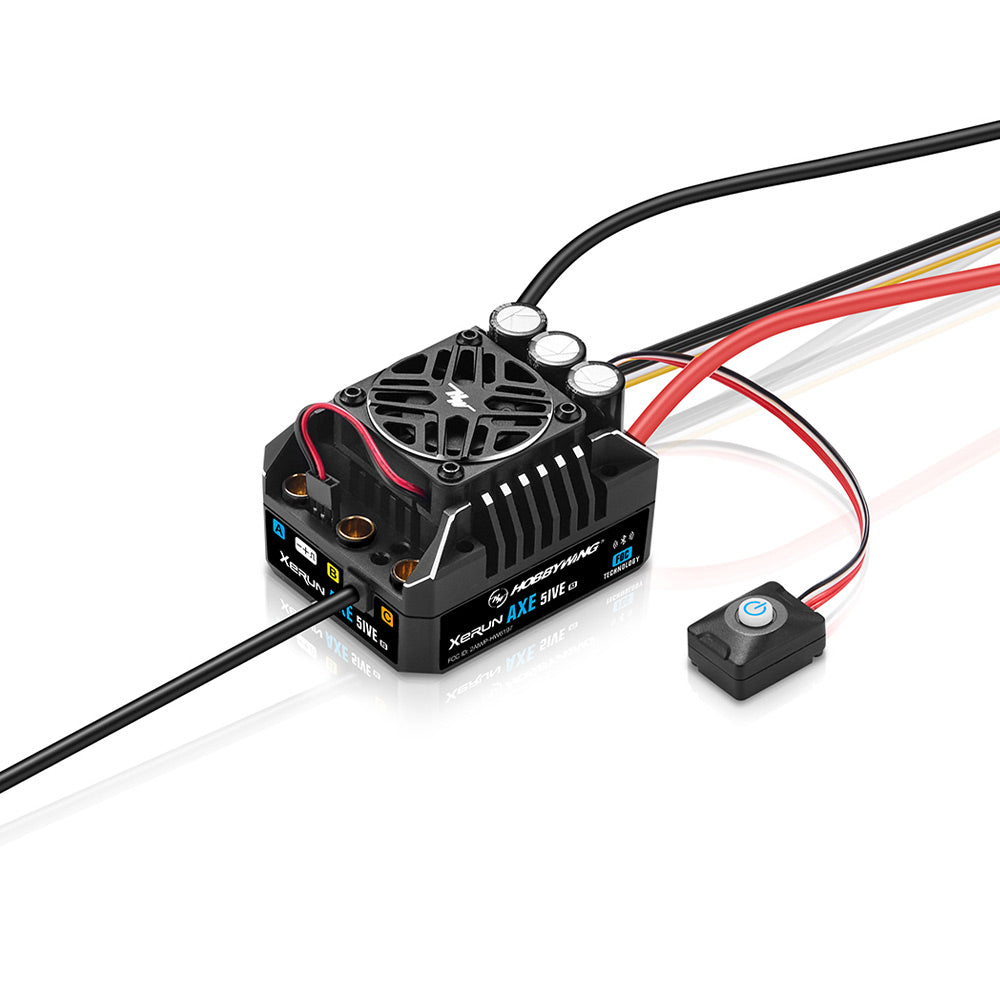

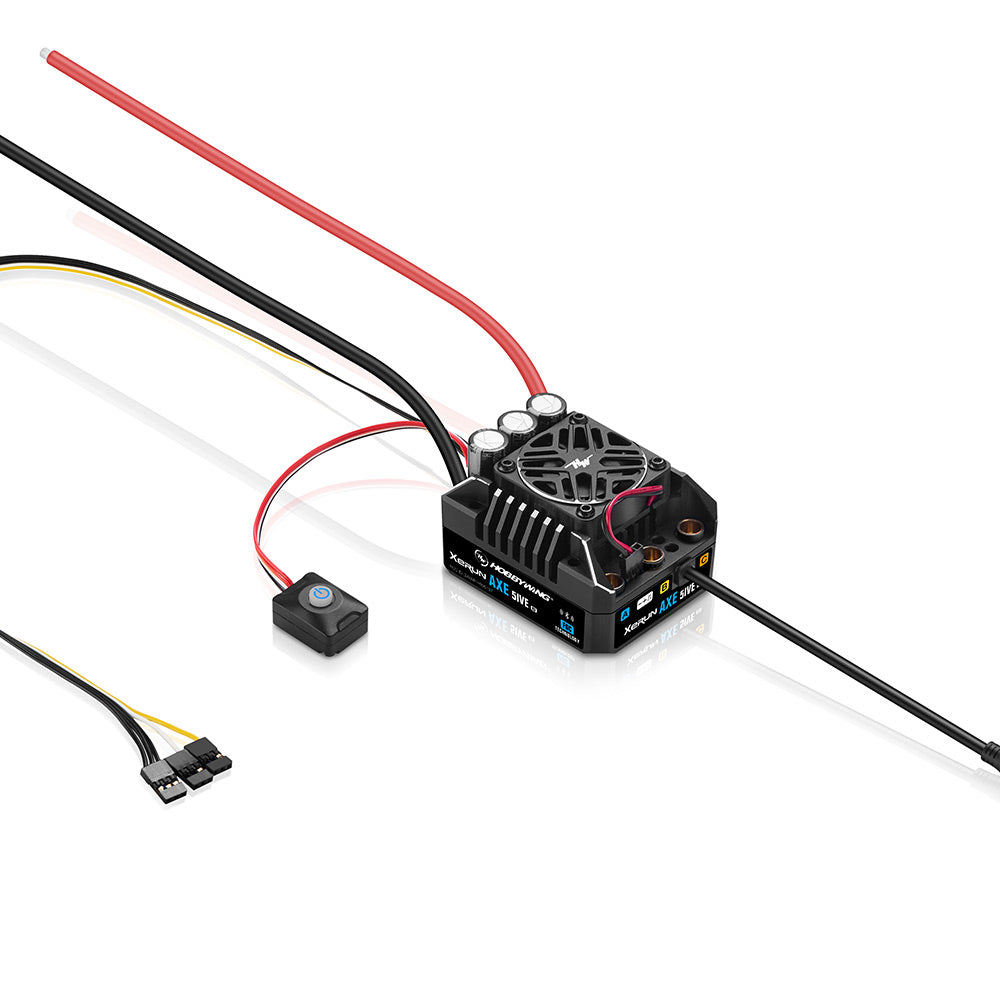

The HOBBYWING XeRun AXE 5iVE R3 220A ESC is designed for 1/5 and 1/6 scale rock crawlers using a compatible AXE motor. Its FOC control and closed-loop speed regulation help you maintain a deliberate pace over changing terrain, while Bluetooth tuning lets you adjust the setup from your smartphone.
Check motor compatibility before ordering: this ESC supports only XeRun AXE 4987 R3S and AXE 4274 R3 series motors. Do not select a motor simply because it carries the AXE name. This listing is for the ESC, not a motor-and-ESC combo.
In This Guide
Key Features
- ✅ Dedicated AXE Compatibility — Built for AXE 4987 R3S and AXE 4274 R3 series motors in large-scale crawler setups.
- ✅ FOC Low-Speed Control — Field-oriented control supports strong low-speed torque for precise crawling inputs.
- ✅ Closed-Loop Speed Regulation — Helps maintain motor speed as load changes across uneven terrain.
- ✅ Adjustable Drag Brake — Tune drag-brake strength and application rate to suit your vehicle and terrain.
- ✅ Bluetooth Setup — Use the HW LINK app to adjust parameters, read ESC data and update firmware.
- ✅ High-Power Electrical Platform — 220A continuous current, 3–8S LiPo support and a 6–14V adjustable BEC with 15A continuous output.
Official Product Video
HOBBYWING Official: AXE 5ive R3 Quick Look, The Charlie Show. Manufacturer overview, not an independent review.
Specifications
Source: HOBBYWING official specifications reproduced in the existing product specification graphic.
ESC specifications and companion motor reference. The motor shown is not a statement of package contents.
Compatibility & Installation
Use only an AXE 4987 R3S or AXE 4274 R3 series motor. Check chassis clearance, battery compatibility and the voltage ratings of your receiver and servos before installation.
- Remove the motor pinion before calibration or programming, and keep the wheels off the ground when switching on.
- Connect ESC phase wires A/B/C to the corresponding motor terminals. Align the sensor connector arrows and avoid forcing the connector.
- Connect the throttle cable to the receiver throttle channel. Follow the manual when using an external receiver supply; do not feed a second supply into the BEC circuit.
- Verify battery polarity before connection. Set a BEC voltage compatible with all connected electronics.
- Follow the official manual for throttle calibration, motor rotation and optional AUX channel setup.
Manufacturer wiring reference. Consult the downloadable manual for full-size details.
Companion motor dimension reference, not ESC dimensions or included motor confirmation.
Downloads
Compatible motor: HOBBYWING XeRun AXE 4987 R3S Sensored FOC Brushless Motor. Check the motor option and installation dimensions before selecting your setup.
Build your large-scale crawler around a matched power system. Choose the AXE 5iVE R3 ESC after confirming your motor, battery and installation space.
